Specificatio:
Heating capacity: 10.5kW
PVC shell for water (OD x H): 250 x 450mm
Titanium tube for refrigerant (OD x H): 19 x 0.6mm x12m
Water inlet and outlet:DN40 PVC piston
Refrigerant inlet and outlet: 12.7 and 19mm copper tube
Working condition:
Water temperature: within 45C
Water pressure for testing: 5bar
Gas pressure for testing: 35bar

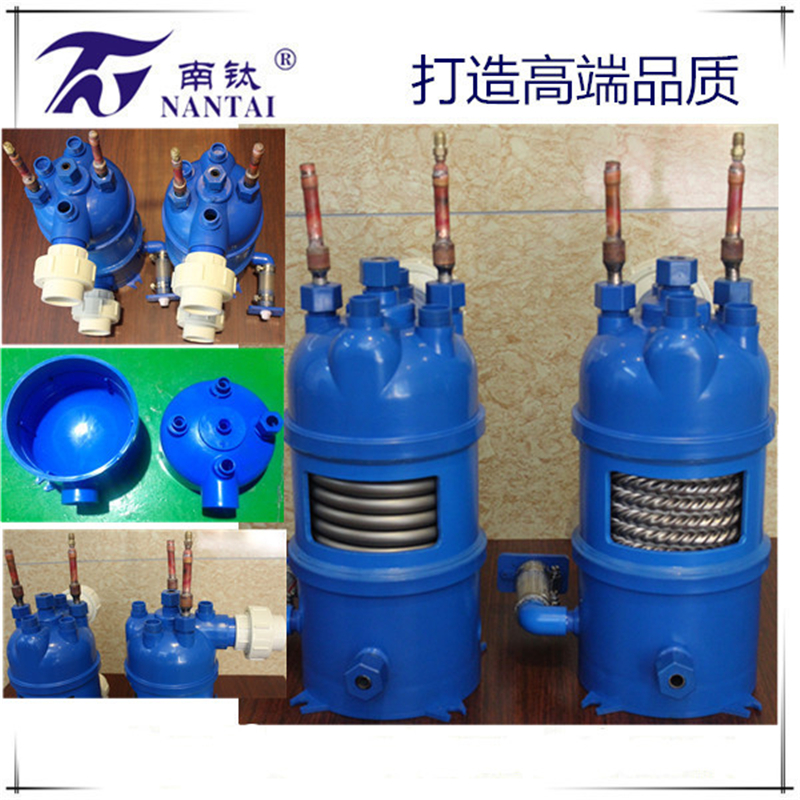

Description:
Water side: with high pressure resistance PVC shell tube for body and PVC plate for up and down cover
Green material: pass SGS and RoHS, safe for environment
Refrigerant side: with titanium tube bending into coil
with strong anti-corrosion
Widely used in the sea water and some chemical acid
Can solve the problem of the corrosion of the copper material
Surface: not easy for oxidation
Hard to dirty don't need to worry about its clean tighten between coil and coil by the nylon cable ties so can reduce the moving
