Structure

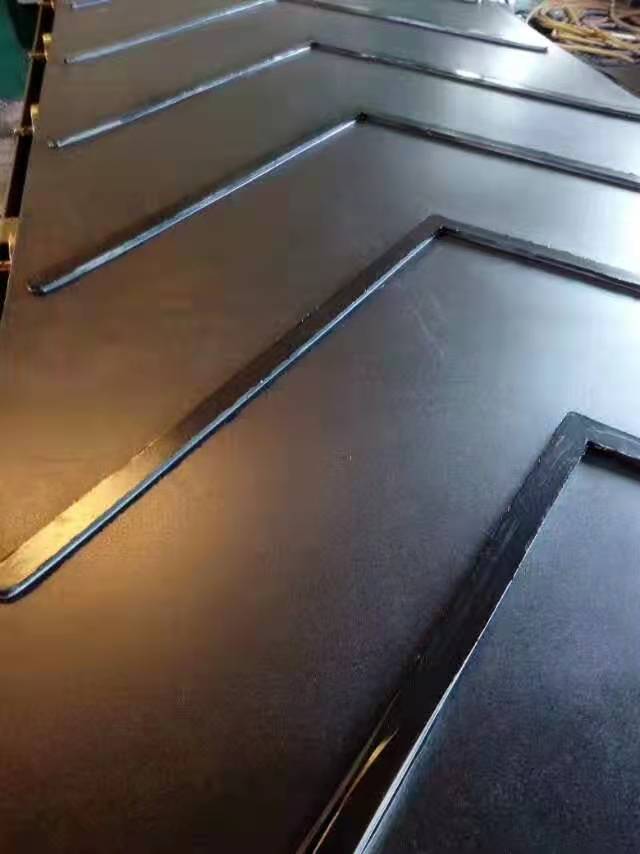

Patterned conveyor belt consists of three parts: patterned rubber cover which is working face, plain rubber cover which is non-working face, and belt core.

Characteristics

Materials of belt core: CC, NN, EP, etc.

Belt width: 300-1000mm

Pattern height: 5, 10, 15, 20mm, pattern shape can be made as per clients' requirement.

Applications: transporting angle0~40°, powdery, granular and little lump materials

Cover Rubber			Adhesion
Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply
Mpa	%	mm3	N/mm	N/mm
			(<=1.5mm)	(>1.5mm)
15	350	250	3.5	4.5
18	400	90	3.5	4.5
20	400	150	3.5	4.5
25	450	120	3.5	4.5
