| Rated Voltage: | 3.0kv/mm |
|---|---|
| Application: | High Voltage |
| Material: | silicone + fiberglass |
| Type: | Insulator |
| Brand Name: | GZJiuying |
| Tensile Strength: | 180kg/cm2 |
| Model Number: | To-220A |
| Place of Origin: | China (Mainland) |
| Thermal conductivity: | 1.0w/m.k |
| Flame rating: | UL94 |
| Hardness: | 85 |
| Dimension: | 21.5mm*11.5mm*5.9mm*0.5mm |
| color: | grey |
| Email: | info@jiuying-industrial.com |
Quick Details
Specifications
Description:
Silicone end caps,is made by silicone as base material after a special process.
Performance characteristics:
Performance characteristics:
Heat insulation and shock resistance and assembly convenience and so on
High thermal conductivity (0.6-1.5w), high resistance to voltage.
UL94-V0 flame retardant grade, in line with environmental protection requirements.
Product specification:

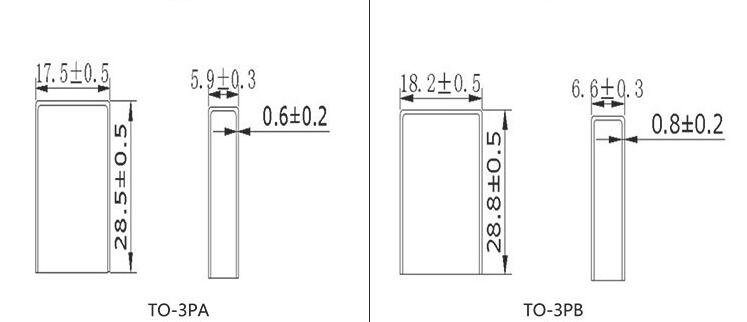

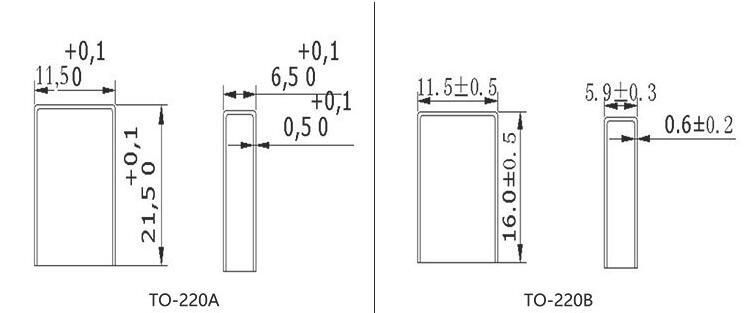

Standard package type: to-220A to-220B to-220C to-3PA to-3PB to-3P.
the default type is to-220A.Dimension:21.5mm*11.5mm*5.9mm*0.5mm
Another irregular products can also be made if the drawing paper is offered!
Features:
Insulation, heat dissipation, fire prevention, shock absorption, strong tensile strength, good wear resistance, good insulation performance, high thermal conductivity, high voltage resistance, 94V0 flame retardant grade, smooth and smooth, good surface dressing performance, products havepassed the ISO9001 SGS UL environmental certification certification.
Color: Grey,blue
Applications:
Heating transistors, diodes, triode (used directly on heat pipe), switching power supply, uninterrupted power supply equipment, communication equipment, computer, flat TV, mobile equipment, video equipment, network products, household appliances, automotive electronic hair heat module, motor control, semiconductor, IS MO S tube, IGBT patch, high voltage, high temperature and high power welder etc.
