| Size: | 100*22.23*1.2 |
|---|---|
| Type: | Abrasive Disc |
| Brand Name: | Moresuperhard |
| Material: | diamond |
| Grit: | 200 |
| Model Number: | 100*22.23*1.2 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

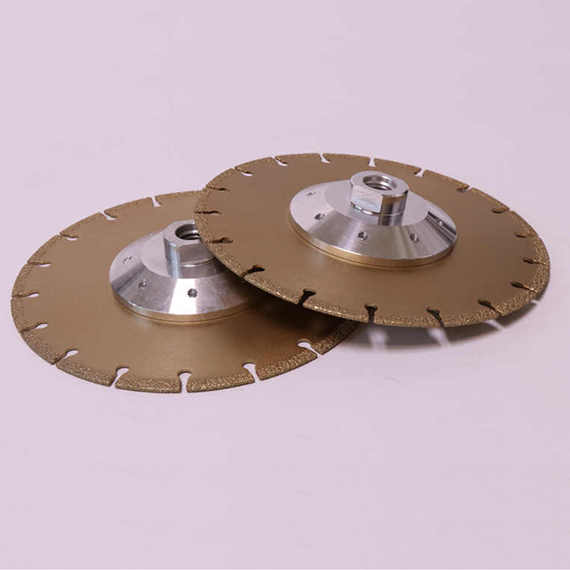

Cast Iron Cutting Disc - Vacuum Brazed Wheel
Vacuum brazed saw blades with continuous type and segment type
Vacuum brazed diamond disc with flange
Cutting marble, cast iron, ceramics tiles,hard composite materials such as concrete with rebar, metal processing, fiber glass and PVC pipe, etc
Cast iron cutting - vacuum brazed diamond cutting disc
Vacuum brazed saw blades have continuous type and segment type. They are used for cutting Marble, cast iron, Ceramics tiles, hard composite materials such as concrete with rebar, Metal processing, Fiber Glass and PVC pipe, etc
Advantages of Vacuum Brazed Diamond Saw Blades* Single Layer of Fully Exposed Diamond Fused with Nickel at High Temperatures and Sharp Cutting
* Small cutting gap and less chipping
* up to 40 Times Longer Life Time Than Resin Grinding Disc. the efficiency is improved by 100% for cutting FRP slab
* Higher Quality Process Than Sintered or Laser Welded Diamond Wheel. the efficiency is improved by 35% for cutting marble slab
* No Pollution, Low Noise,Never Need Dressing
Specifications of vacuum bazed diamond cutting disc
| Model | D (mm) | H (mm) | T (mm) |
| Vacuum Brazed Diamond Saw Blade | 100 | 22.23 | 1.2 |
| 115 | 22.23 | 1.2 | |
| 125 | 22.23 | 1.2 | |
| 150 | 22.23 25.4 | 1.2 2.4 | |
| 180 | 22.23 | 1.6 | |
| 230 | 22.23 | 1.8 | |
| 350 | 25.40 32 | 2.0 | |
| 400 | 25.40 32 | 2.2 2.6 | |
Grain Size: Rough 25/30, 30/35, 35/40, Finish 50/60. Others Size and Grit Can Be Customized According To Customers' Requirement. | |||
