Product Main

Quick Details

Type:	Ball
Structure:	Self-Aligning
Outside Diameter:	26-150 mm
Bore Size:	10-120 mm
Brand Name:	CVZ
Type:	Self-aligning Ball Bearings
Structure:	Spherical
Place of Origin:	China (Mainland)
Number of Row:	Double Row
Seals Type:	Open
Precision Rating:	P5 P6

Specifications

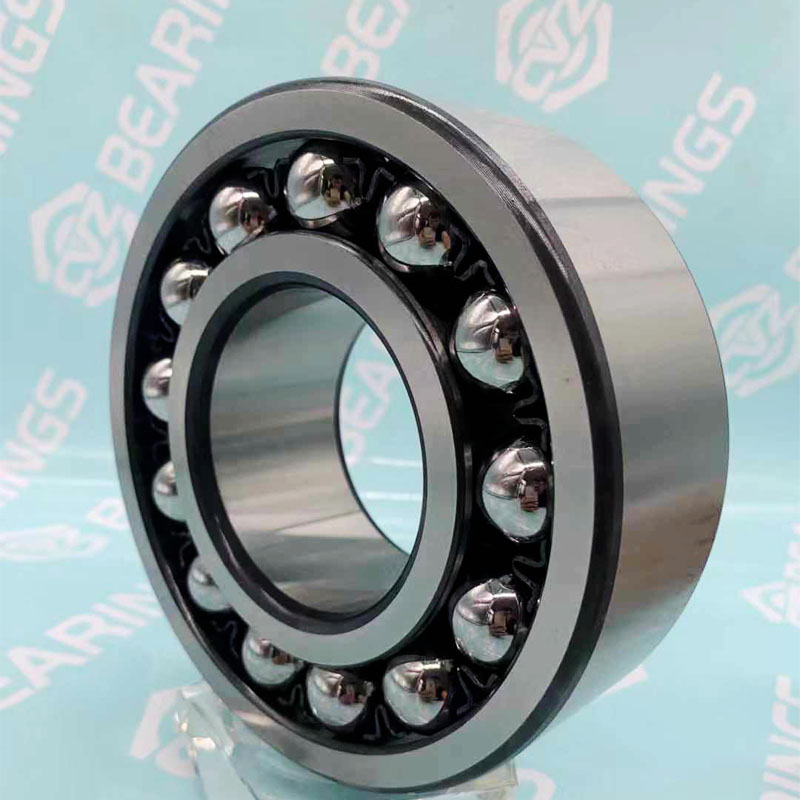

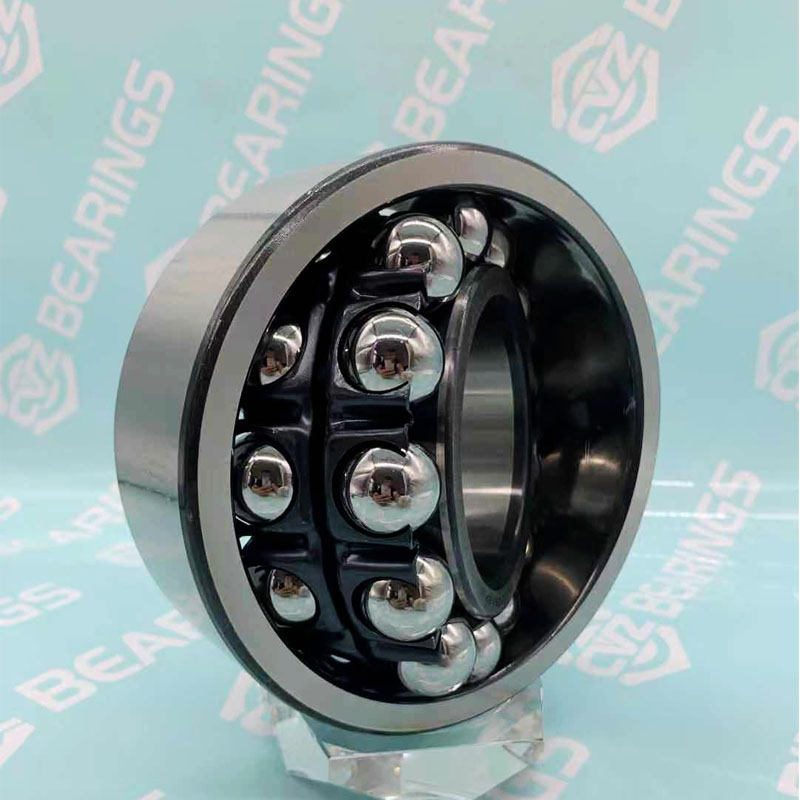

China Manufacturer Hot Sale Double Rows Self-aligning Ball Bearing for Motorcycle/Auto/Engine Parts Bearings

Self Aligning Ball Bearing description
Self-aligning ball bearing
When deflection between shaft and housing happens, we need to use self-aligning ball bearing to reduce the load of the bearing by rectifying the angular misalignment, as the spherical raceway of the outer ring allows the balls together with the cage and inner ring rotate in either direction.

Benefits and Features of self aligning ball bearing:
*High adaptability to both dynamic and static misalignment
*Low friction. Loose contact between balls and outer ring lessens the friction, and enables the self aligning bearing to generate less heat and noise, allowing it to run at high speed. *the lifetime of the aligning bearing is prolonged accordingly and lessens the maintenance intervals.

Applications of self-aligning ball bearing:
* Textile processing machine
* Agricultural machine
* Food and beverage machine
* Industrial fans

Self Aligning Ball Bearing Relating Models

Boundary Dimension			Rating Load		Reference speed		Bearing No.
			Dynamic	Static
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
0.4724	1.4567	0.4724	2104	486	40000	28000	1301
0.5906	1.6535	0.5118	2428	585	34000	24000	1302
0.6693	1.8504	0.5512	2855	764	28000	20000	1303
5.9055	8.8583	2.2047	12859	5305	5600	3400	13030
0.7874	2.0472	0.5906	3215	899	26000	18000	1304
0.9843	2.4409	0.6693	4271	1214	22000	15000	1305
1.1811	2.8346	0.748	5058	1529	19000	13000	1306
1.378	3.1496	0.8268	5957	1911	16000	11000	1307
1.5748	3.5433	0.9055	7599	2518	14000	9500	1308
1.7717	3.937	0.9843	8768	3012	12000	8500	1309
1.9685	4.3307	1.063	9802	3147	12000	8000	1310
2.1654	4.7244	1.1417	11398	4047	11000	7500	1311
2.3622	5.1181	1.2205	13151	4946	9000	6300	1312
2.5591	5.5118	1.2992	14613	5733	8500	6000	1313
2.7559	5.9055	1.378	16658	6182	8500	6000	1314
2.9528	6.2992	1.4567	17827	6744	8000	5600	1315
3.1496	6.6929	1.5354	19873	7531	7500	5300	1316
3.3465	7.0866	1.6142	21919	8543	7000	4800	1317 K
3.5433	7.4803	1.6929	26303	9892	6700	4500	1318 K
3.7402	7.874	1.7717	29900	11465	6300	4300	1319 K
3.937	8.4646	1.8504	32148	12814	6000	4000	1320 K
4.3307	9.4488	1.9685	36644	16186	5300	3600	1322 M
0.3937	1.1811	0.5512	1243	265		17000	2200 E-2RS1TN9
0.4724	1.2598	0.5512	1403	321		16000	2201 E-2RS1TN9
0.5906	1.378	0.5512	1958	459	38000	26000	2202 ETN9
0.6693	1.5748	0.6299	1987	495		12000	2203 E-2RS1TN9
0.7874	1.8504	0.7087	2855	764		10000	2204 E-2RS1TN9
0.9843	2.0472	0.7087	3215	899		9000	2205 E-2RS1TN9
1.1811	2.4409	0.7874	3507	1045		7500	2206 E-2RS1KTN9
1.378	2.8346	0.9055	4271	1349		6300	2207 E-2RS1KTN9
1.5748	3.1496	0.9055	4474	1562		5600	2208 E-2RS1KTN9
1.7717	3.3465	0.9055	5148	1754		5300	2209 E-2RS1KTN9
1.9685	3.5433	0.9055	5148	1832		4800	2210 E-2RS1KTN9
2.1654	3.937	0.9843	6205	2383		4300	2211 E-2RS1KTN9
2.3622	4.3307	1.1024	7014	2743		3800	2212 E-2RS1TN9
2.5591	4.7244	1.2205	7891	3147		3600	2213 E-2RS1KTN9
2.7559	4.9213	1.2205	8048	3282		3400	2214 E-2RS1TN9

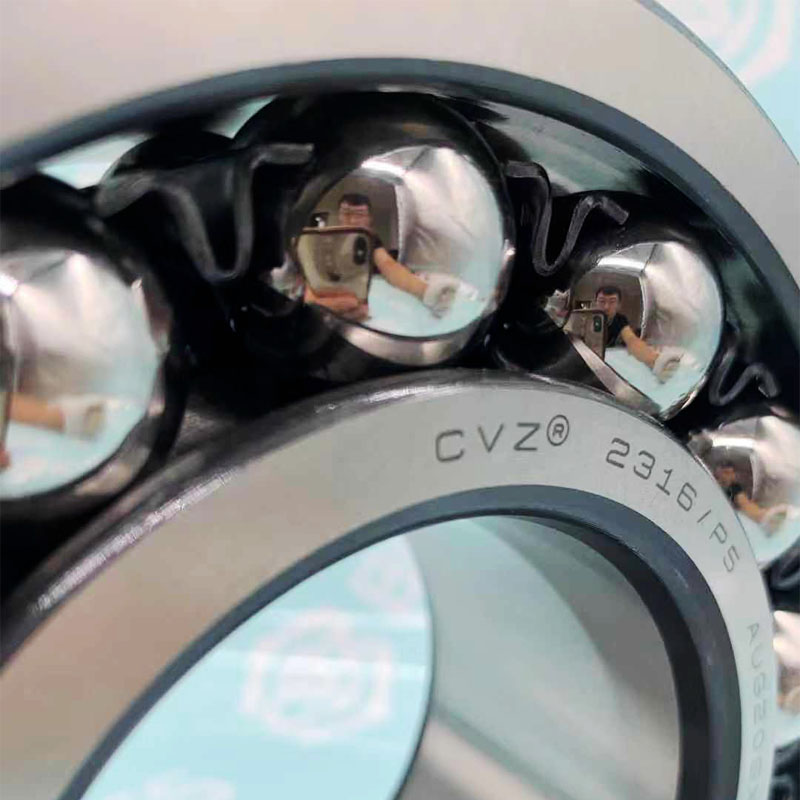

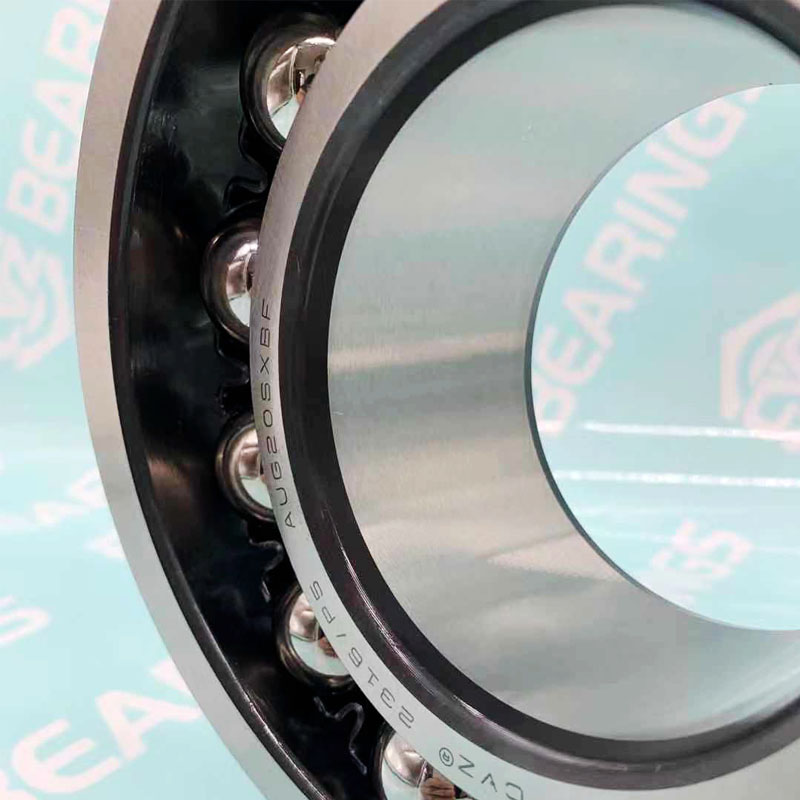

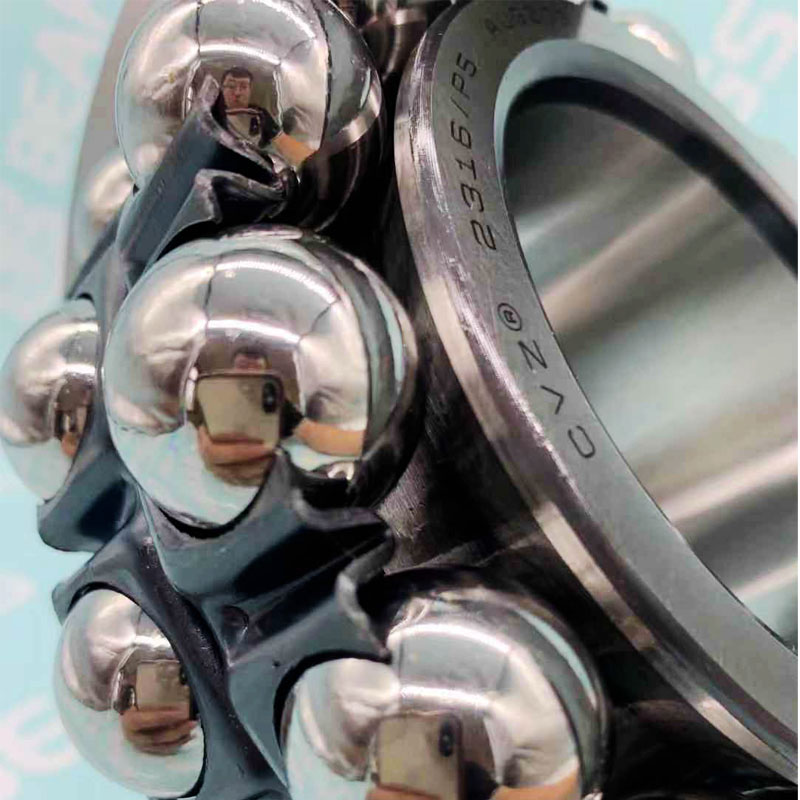

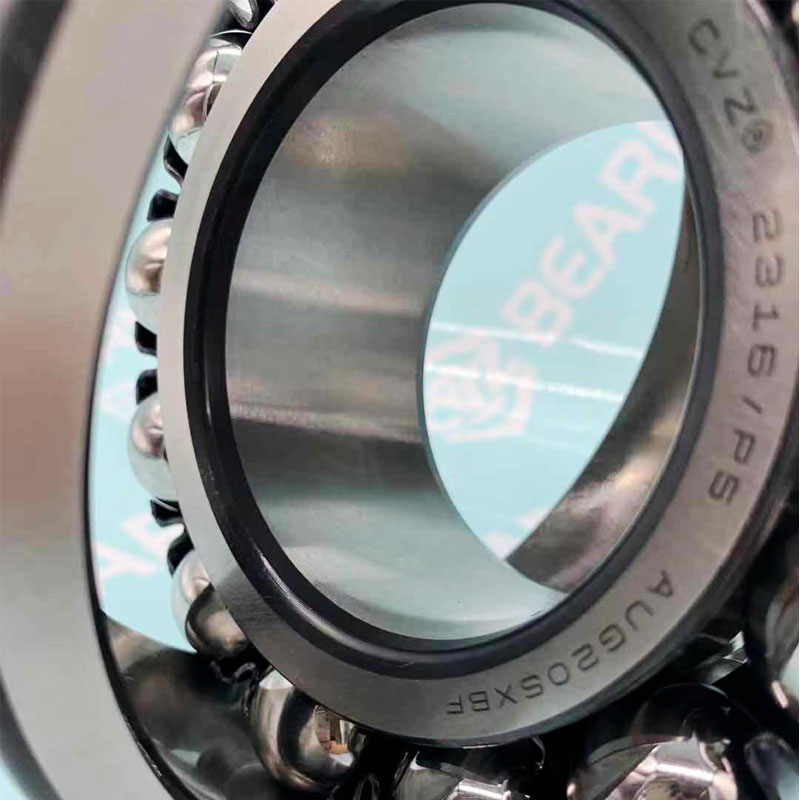

Self aligning ball bearing 2316 P5
