Product Main

Quick Details

Item Type: High Mast Lights
Brand Name: GreenTech
Certification: CE,EMC,ETL,LVD,SASO
IP Rating: IP66
Lamp Body Material: Aluminum Alloy
Item Type: BF500W
Model Number: BF500W
Place of Origin: China (Mainland)
Working Lifetime(Hour): 50000
Working Temperature(℃):
Color Temperature(CCT): Pure White
CRI (Ra>): 80
Lamp Luminous Efficiency(lm/w): 130
Lamp Power(W): 500
Input Voltage(V): 85V~270V

Specifications

500W LED high mast light for stadiumby riveting the copper heat pipe to Fins has 20 times of heat transfer rate over pure aluminum radiator, which helps maximize the cooling area through a combination with the seamless fitting and Fin fastening, massive Fins technology;
Adopting stainless steel parts and components, the whole structure has been treated with protection technology and undergone a 500 hours salt spray test, which boasts outstanding resistance to corrosion and rust and is thus adaptable to poor outdoor environment;
It passed the professional wind tunnel test, anti-level-17 hurricane;
Protection Grade Reaches IP66;
the Lampshade has a built in respirator to clear away the mist and avoid dewing;
with an adjustable angle of 216°, the beaming angle could be adjusted freely.
Lamp Rated luminous efficiency >120 lm/W Output Voltage 42V
LED luminous efficiency 140~170 lm/W Output Current 14300mA
Lamp Total Flux(Tj=60℃,Ta=25℃) 60000 lm Lamp Power 500.7W
Lamp's Efficiency >91% LED Power 482W
Power Factor >0.98 THD <15%
Input Voltage AC85-265V Warranty 5 Years
Beam Lighting Angle 100°,90°,60°,45°,25° Guard Level IP65
LED Chip & Power Supply 220pcs Cree XTE & Meanwell Lifespan >50,000hrs
Working Temperature -30℃ ~ +50℃ CRI >75

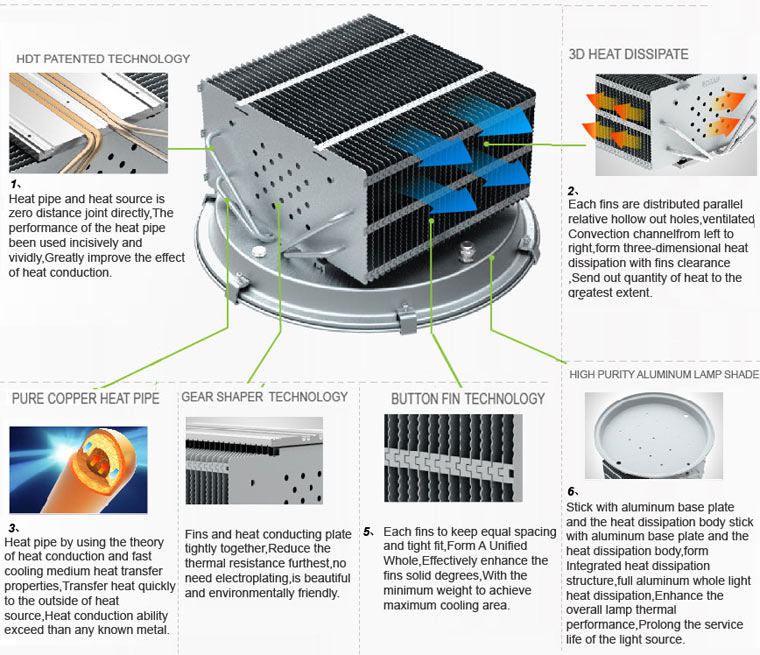

Efficient Cooling
Innovative brass + Fin cooling
Mode, Courier Heat

0~216° Adjustable Angle
Free Change the  Irradiation Angle

Pure Copper heatpipe
Quick-thermal-conduction nature of
Refrigeration medium. Extending the life span.

IP Grade 65
Prevent Dust, Water Intrusion

92% Reflective Rate
Reflector's Reflective rate
Could reach up to 92%.

Light Weight
High thermal conductivity of Aluminum
Shell to create more refined, more compact

Professional Heatsink Design
Fashion, Profession in High
Power LED Heatsink Design

Easy Assembly
Screw Lock  & Ease to Installation



92% reflective rate
Reflective rate could reach up to 92%. -Reflector angle 25°,45°,60°,90°,100° choice
500W High Mast Light installation:

500W LED High Mast Light Size:

High Mast LED Light Scope of Application:
It's extensively applied in Industrial Workshops, Stadiums, Docks, Golf Courses, Construction Lighting Square...etc.
It can replace the traditional metal halide lamp and high pressure sodium light.
500W LED high mast light for stadium

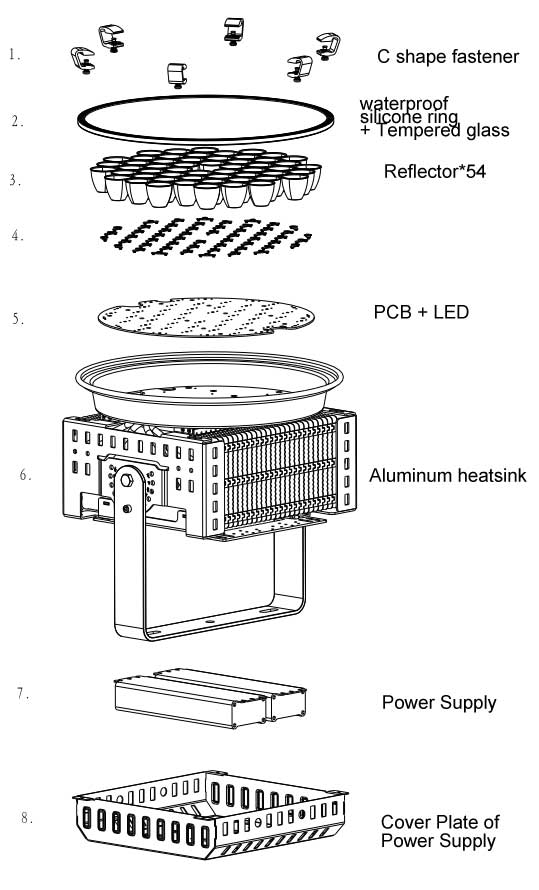

500W LED High Mast Light Exploded View:
