| Usage: | High Voltage Phase Detector |
|---|---|
| Power: | Electronic |
| Brand Name: | TYC |
| Warranty: | 1 |
| weight: | 7kgs |
| Model Number: | TY-110 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
II
Introduction

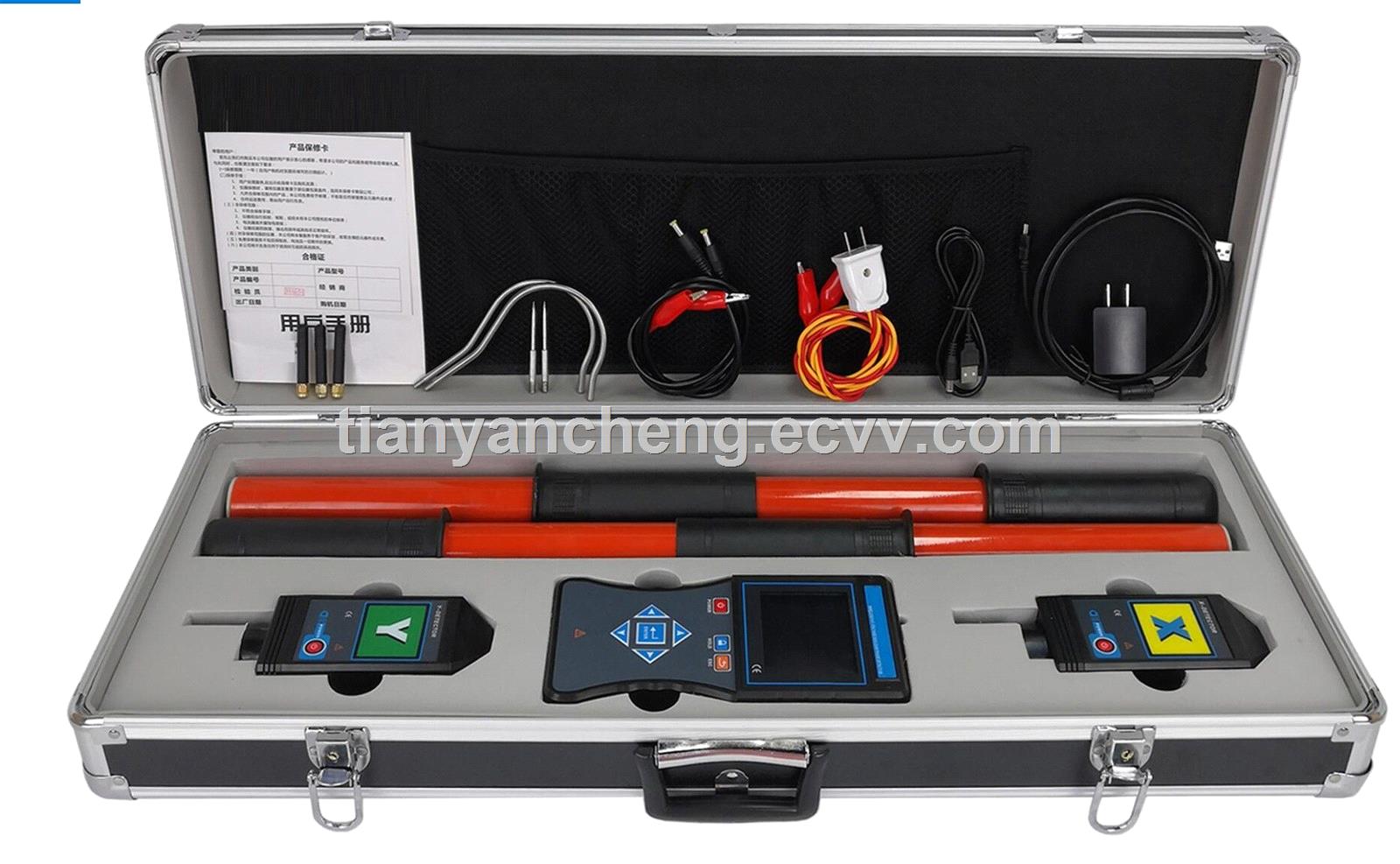

TY-110Wireless HV phase tester , also named intelligent wireless high voltage voice phaseDetector, wireless high voltage phaseDetector, short named Phase detector or,Wireless nuclear Phaser .It is composed of wireless receiver, Detector, telescopic insulation rod and so on. the receiver adopts a 3.5-inch Real color LCD screen, which displays Phase results, frequency and vector graph instructions on the screen Simultaneously. There are voice prompts such as "X signal means normal, Y Signal means un-normal, same phase, different phase", clear and visual. The Distance of open ground nuclear phase is up To 160 m. It can be Intelligent phase for 1 v ~ 550 kv voltage circuit. Bare wire of 35KV and below can be directly contacted phase detector, Bare wires with non-contact phase Stick above 35KV. the non-contact nuclear phase is that the detector approach the measured Conductor. when sense the electric signal,it can be completed nuclear phase, so it is more safe that no need Contact directly with high Voltage conductor. the phase detector Has the functions of high voltage electroscope, high voltage phase meter and High voltage phase-sequence meter at the same time. It can be used for Electrical inspection, phase sequence test, transformer group judgment, etc.
III Technical parameter
|
High and low voltage wireless Voice phase stick, frequency, phase, phase-sequence Life-line test |
Power |
Receiver:DC 7.4VRechargeable Lithium battery Detector:DC 3.7VRechargeable lithium Battery USB recharge interface,Work about 10hours Continuously |
Transmission way |
315MHz,433MHzWireless Transmission |
Phase stick Distance |
MAX 160m |
Display Mode |
3.5 inch Ture color LCD display |
RANGE |
Phase stick voltage grade:AC 1V550kV |
phase:0.0°360.0° | |
Frequency:45Hz75Hz | |
Resolution |
0.1°;0.1Hz |
Accuracy(23℃±5℃,80%RH below) |
phase:≤±10° |
Frequency :≤±2Hz | |
Phase |
Same phase:30°30°;Abnormal Phase v: 90°150° and 210°270° |
Voice function |
Voice function of Same phase ,different phase, X Normal phase,Y- abnormal |
Insulating Rod size |
the length is around 3.2m after pulling. the other length is Aournd 0.6m after shrinking(choose the 5m rod) |
Data Storage |
9999 groups |
Phase way |
Connect phase: Bare Conductor below 35kV,or safe insulting sheath Conductor connect phase stick directly under 110kV.(Operate by insulating rod) |
Non-contact Phase stick: Bare conductor above 35kV,or Adopt non-contact phase stick above 110kV, Approach the conductor gradually (Operate by insulating rod) | |
Verify Electricity Indicator |
the detector beeps "too-too-too-toot. |
Change Shift |
shift Automatically |
Sample Frenquency |
2 Times/S |
Device size |
Detector:L 45mmW 60mm H 48mm |
Receiver:L 250mmW 100mmH 40mm | |
Backlight Control |
Press to adjust Backlight brightness |
Induction Intensity |
According to the different induction Electric field intensity, the detector can automatically control the Magnification, for Arrange phase in the dense place |
Data keep |
Press HOLD in test Mode to keep data,re-pressHOLDto exit keeping |
Exit function |
PressESCExit the current function interface, return last Catalogue |
Data Consult |
PressENTER and enter into data browse mode, pressArrows and brose the storage data |
No signal Indicator |
When the receiver does not receive the transmitted Signal, the dynamic display of "----" symbol |
Auto Power-off |
Device will power offAutomatically to reduce battery consumption after 15mins. |
Battery Volatge |
When battery power is not Enough: Detector: Power indicator flashes Slowly to remind charging; Receiver : battery voltage low Symbol display, remind charging |
Rated Current |
Detector:35mA max;Receiver:300mA max |
Device |
Detector:205g(include Battery) |
Receiver:395g(include Battery) | |
Insulation rod:1.2 kg(3 m Rod),1.45kg(5m rod) | |
Total Weight:7kg(include Device box, 5m rod and box,the weight 9.8 kg) | |
Work Humiture |
-10℃40℃;80%Rh bellow |
Store Humiture |
-10℃60℃;70%Rh bellow |
Disturbance |
No extra-strong electromagnetic field;No 433MHz,315MHz Same frequency Interference |
Insulating Strenghen |
Insulating rod:AC 110kV/rms( between the ends of Enclosure after pulling insulating rod) |
Detector:2000V/rms( between the ends of Enclosure ) | |
Receiver:2000V/rms(between the ends of Enclosure) | |
Structure |
Leak-proof II,IP63 |
|
