| Brand Name: | Tuowei |
|---|---|
| Lubrication Style: | Lubricated |
| Configuration: | Stationary |
| Type: | Screw |
| Condition: | New |
| After-sales Service Provided: | No overseas service provided |
| Warranty: | 1year |
| Certification: | CE,ISO |
| Weight: | 380kgs |
| Dimension(L*W*H): | 1800*600*1560mm |
| Voltage: | 380V |
| Model Number: | SGC-DF7.5 |
| Place of Origin: | China (Mainland) |
| Mute: | Yes |
| Power Source: | AC Power |
Quick Details
Specifications

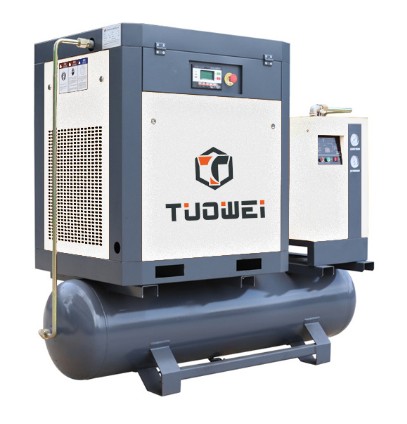

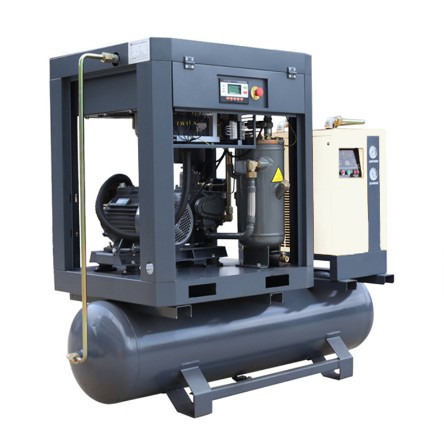

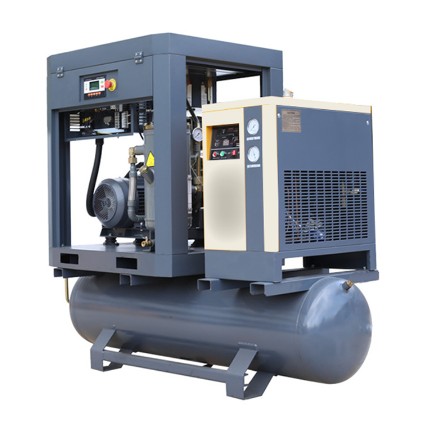

10hp 7bar Integrated screw air compressor with dryer and tank for sale
Power:7.5kw
Pressure:0.7Mpa
Airflow:1.2m3/min
Motor speed:1470r/min
Motor:IP54
| Model | SGC-DF5.5 | SGC-DF7.5 | SGC-DF11 | SGC-DF15 | |
| Motor power | HP | 7.5 | 10 | 15 | 20 |
| KW | 5.5 | 7.5 | 11 | 15 | |
| Capacity/ | (m3/min | 0.84/0.7 | 1.2/0.7 | 1.72/7 | 2.28/7 |
| Pressure | /BAR) | 0.79/0.8 | 1.05/0.8 | 1.61/8 | 2.13/8 |
| 0.69/1.0 | 0.92/1.0 | 1.41/10 | 1.87/10 | ||
| 0.63/1.25 | 0.84/1.25 | 1.29/1.25 | 1.71/1.25 | ||
| Cooling mode | Air Cooled | Air Cooled | Air Cooled | Air Cooled | |
| Driven mode | Belt Driven | Belt Driven | Belt Driven | Belt Driven | |
| Starting mode | Y- | Y- | Y- | Y- | |
| Dimension | L | 1800 | 1800 | 1800 | 1800 |
| mm | W | 600 | 600 | 700 | 700 |
| H | 1560 | 1560 | 1750 | 1750 | |
| Gross Weight | Kg | 370 | 380 | 505 | 515 |
| Noise level | DB(A) | 62±2 | 62±2 | 62±2 | 63±2 |
| Outlet Diameter | G3/4 | G3/4 | G3/4 | G3/4 | |
| Tank Volume | m3 | 0.5 | 0.5 | 0.5 | 0.5 |
Packing:
