| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | China Tools |
| COLOR: | yellow,black,or customized |
| name: | electromagnetic chunk crushing forceps |
| Weight: | 1.9 tons. etc. |
Quick Details
Specifications

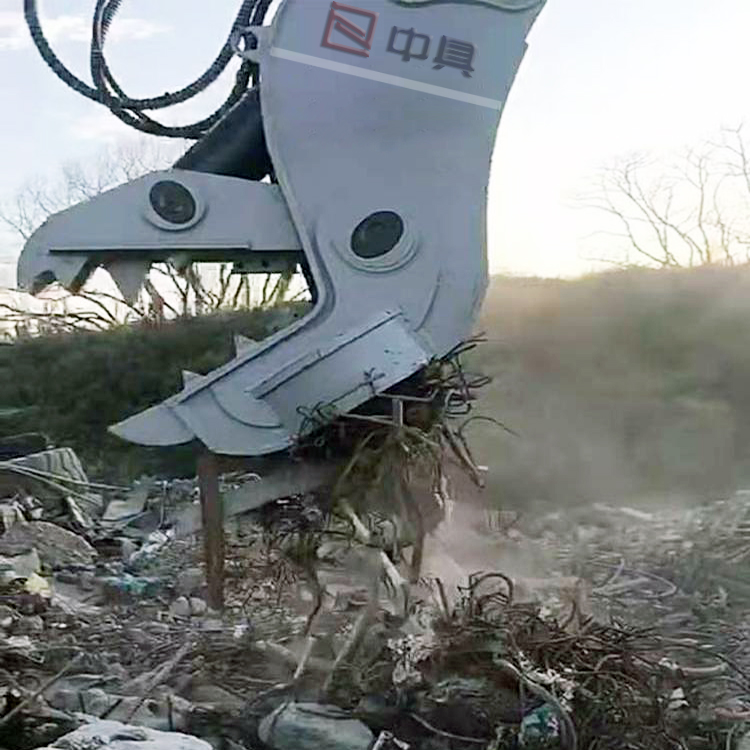

Electromagnetic chuck crushing pliers
Use the excavator's own power to provide the power source for power generation. Compared with the conventional four-cylinder generator set, it can save hundreds of yuan in fuel per day. Compared with the retrofitted 24-30KW permanent magnet 380V generator, it can also save fuel. Special generator low-voltage intermediate frequency power generation 190V/2000-3000 rpm, suitable for a variety of excavator engines, and the excavator engine can be installed and used normally if it is adapted for 180-200MM pulleys.
Product Details:
Magnetic crushing tongs can excellently complete a series of demolition operations such as the demolition of building apartments, plant beams andcOlumns, and residential buildings. that is, the steel bars are completely separated from the concrete block, bent and loaded onto the truck, which significantly improves the work efficiency. the work efficiency is two to three times that of the breaker, with complete mechanized operation, safe and time-saving. Low noise and no vibration can meet environmental protection requirement, suitable for demolition projects in cities and industrial parks.
Features:
the installation of the oil circuit acceleration valve makes the biting speed faster and improves the work efficiency.
Large openings, closely occlusion, tight gaps, and double lower jaw openings, which can quickly leak out, making it easier to quickly crush concrete reinforced blocks.
Equipped with a steel bar cutting blade, can cut off the exposed steel bar when the crushing tongs working, making the crushing operation more efficient.
Welded with high-quality steel, with reasonable structure, high strength and no deformation, the machine is simple to operate, sensitive, high production efficiency, and low energy consumption.
Product model FS-50 FS-80 FS-150 FS-250 FS-350Applicable model T 3-5 6-8 12-18 20-28 30-40
Working pressure Mpa 24.5 31.5
Overall length mm 950 1270 1620 1920 2130
Overall weight KG 240 560 1150 1940 2790
Maximum opening mm 430 600 745 880 1030
Blade length mm 70 100 120 160 180
Front end crushing force KN 178 382 549 725 1080
Central crushing force KN 282 598 882 1170 1750
