Certification: | CE |
---|---|
Max. Lifting Height: | 3400mm |
Rated Loading Capacity: | 10000kg |
Lift Drive / Actuation: | Hydraulic |
Brand Name: | WIZ |
Quick Details
Specifications

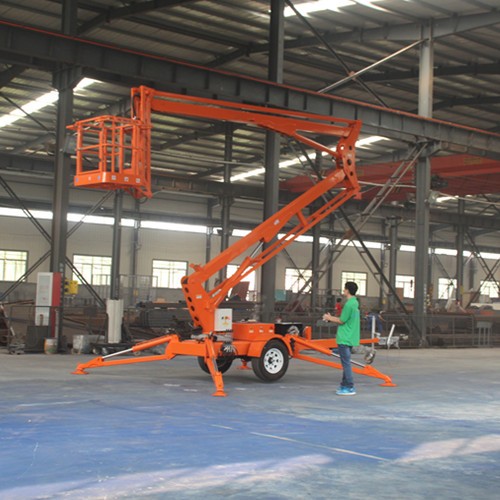

Articulated boom lift
Trailer boom lift (Spider boom lift) can be car -carrying to working sites. It can work accross the barriers with 360° rotation, while with 4 full-automatic hydraulic legs, which makes aerial work very safe and stable. Standard petrol engine power, battery and AC power are optional. It is widely used for roads/street light maintenance, shopping malls decoration aerial work, electric power overhaul and other working sites.
Main models
Model |
Load capacity |
Lifting height |
Platform size |
Turntable rotation |
Dimension |
TBL-6 |
200kg |
6m |
0.9X0.7X1.1m |
360° |
4.8x1.6x1.8m |
TBL-8 |
200kg |
8m |
0.9X0.7X1.1m |
360° |
5.4x1.6x1.9m |
TBL-10 |
200kg |
10m |
0.9X0.7X1.1m |
360° |
5.4x1.6x1.9m |
TBL-12 |
200kg |
12m |
0.9X0.7X1.1m |
360° |
5.8x1.8x2.2m |
TBL-18 |
200kg |
18m |
0.9X0.7X1.1m |
360° |
6.4x1.8x2.2m |
Note: Standard power source: electric 220V,AC power Optional power: Diesel engine, Gas engine, Battery |
Features
- Multiple job site application, indoors and outdoors
- High and low operation panel
- Hydraulically outriggers and outrigger interlocks
- Hands prevent folder
- Self-leveling protection
- Flashing Beacon
- Emergency lowering system
- 360°Continuous turntable rotation
- Protective covers for oil-tank, emergency controls etc
- AC power to platform(Optional)
Dual controllers: Two control panels one work budget & control box on chassis. with clear specification. Convenient for user's controlling.
