Description:

the transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. and it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Specifications:

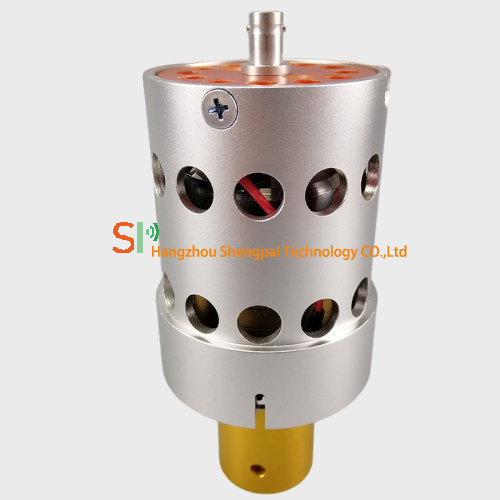

Model	Dukane 41C30 Replacement
Frequency	20Khz
Output power	2000Watt
Joint bolt	1/2-20UNF
Ceramic disc Diameter	50mm
Quantity of Ceramic discs	4pcs
Capacitance	11-17nF
Application	Welding machine



Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system, which can be widely used to do welding in various kinds of industries.

Applied Industries:

Automobile industry, electric industry, medical industry, household appliance industry,

Non-woven fabric, clothing, packing, office supplies, toys, etc.

Applied Machines:

Mask machines, sealing machine, ultrasonic cleaner, welding machines, cutting machines, Medical scalpel and tar clear.



Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.

2. Ceramic rings and titanium are imported from Japan and Germany
3. Once assembled, the transducers are aged before testing and final assembly. the properties of piezoelectric materials can change with time and pressure, so a bit of time to testing will identify nonconforming material.
4. One by one testing to ensure that each transducer performance are excellent before shipping.
5. Low impedance, high stability with long life and high reliability.

6. Provide customized service

7. One year warranty
