Machine Type: | Other |
---|---|
Material: | Metal / Coil |
Certification: | CB,CE,CSA,ETL,GS,RoHS |
Brand Name: | JYD/OEM |
Condition: | New |
Machine Type: | JYD-4000series |
After-sales Service Provided: | No overseas service provided |
Dimension(L*W*H): | 300x240x150mm |
Power(W): | 240 |
Industry Used: | Electronic Industry |
Cleaning Type: | Industrial Ultrasonic Cleaner |
Cleaning Process: | Cold Water Cleaning |
Use: | Degreasing |
Fuel: | Diesel |
Feature: | Critical Cleaning / Residue Free,Non-Ionic,Non-Toxic,Rust / Corrosion Inhibitor,Sudsing / Foaming |
Model Number: | JYD-4000series |
Place of Origin: | China (Mainland) |
Plug Type:: | US PLUG, UK Plug, AU Plug, EU Plug, Other Plugs |
Certification: | ce, EMC, RoHS, PSE, FCC |
Model Number:: | UC-4240L |
Place of Origin:: | Guangdong, China |
Material: | Stainless Steel 304 |
Frequency: | 40KHz |
Application: | Commercial, Household |
Cleaning Cycles (Seconds):: | 1-99min |
Capacity: | 11L |
Use: | home, dental, glasses, laboratory,jewellry |
Quick Details

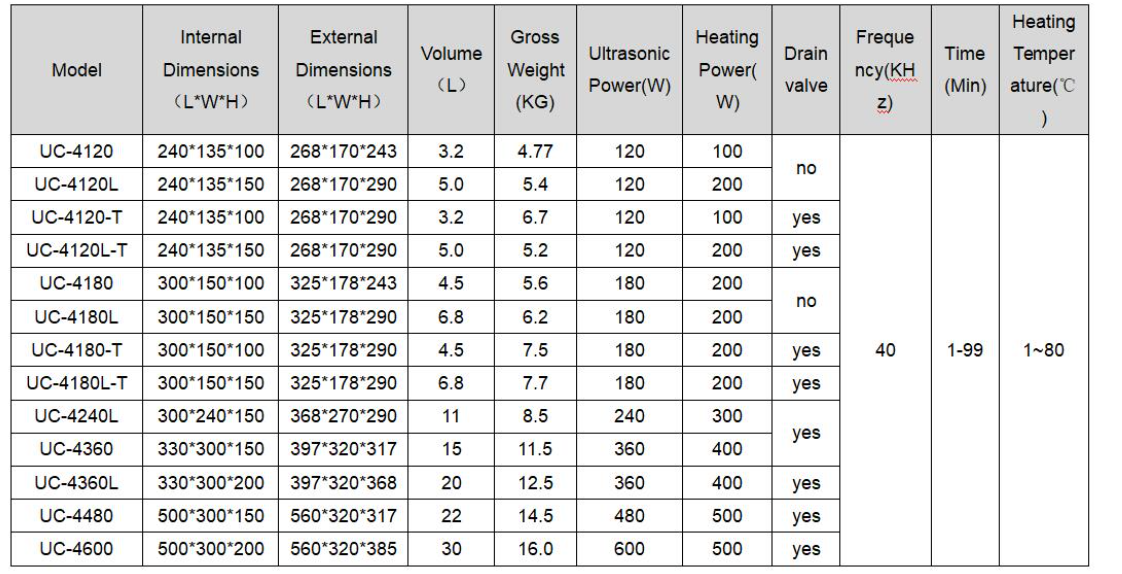

Specifications
Ultrasonic cleaning machine generates ultrasonic frequency electricity, which is converted by energy converter into high-frequency mechanical oscillation that is transferred to cleaning fluid. Ultrasound wave is beamed forwards unevenly in the cleaning fluid to make the fluid vibrate and generate tens of thousand of micro bubbles, which form and grow in the negative pressure area where the ultrasound wave travels longitudinally and close (crush out) in positive pressure area. Formation, growth and quick closure of the micro bubbles is called cavitation. In cavitation, closure of bubbles will generate instantaneous high pressure higher than 1,000 times of atmospheric pressure, and the continuous high pressure force hits surface of the work piece like numerous small blasts to peel off dirty on the surface and in clearance of object, and this is how the ultrasonic cleaning machine operates.
Specification:
1. Proprietary MCU-sweep ultrasonic generator driver circuit to present better cleaning performance and to minimize noise level.
2. Proprietary industrial ultrasonic transducer with high Q value and energy conversion efficiency and long service life.
3. Imported high-strength glue, staple-free bonding, and long service life of tank.
4. Digital timing for heating control between 1-99 minutes and temperature setting between1-80℃.
5.Internal tank fabricated of 1.0mm SUS304 stainless steel to present good performance and long service life.
6.Cleaning basket made of 304 stainless steel and electro-polished.
7. Outer Shell made of high-quality stainless steel to present good corrosion resistance.
Application
Professional Use: | |
Medical and Dental Clinics, Tattoo Shops, Scientific Labs and Golf Clubs. Jewelers, Opticians, Watchmakers, Antique Dealers and Electronics Workshops etc. | |
Personal or Home Use: | |
Jewelry |
Earrings, Necklace, Rings, Bracelets and Diamonds. |
Glasses & Timepieces |
Glasses, Optical Lenses, Contact Lens Accessories, Watch Chains and Waterproof Watches. |
Commodities |
Tattoo Guns and Tubes, Electric Shaver Heads, Razor Blades, Dentures, Combs and Toothbrushes. |
Stationery |
Pen-heads, Printer heads, Inkjet Cartridges and Seals. |
Metal Articles |
Ancient Coins, Badges, Valves, Machine Nozzles, Electronics Components and Mechanical Parts, Forks, Knives, Spoons and Other Small Silverware etc. |
Others |
Baby nipples, baby feeder bottles, Fruit, vegetables. |
