| Brand Name: | linsam |
|---|---|
| Certification: | CE,EMC |
| Use: | Bathroom |
| Housing Material: | Galvanized steel casing |

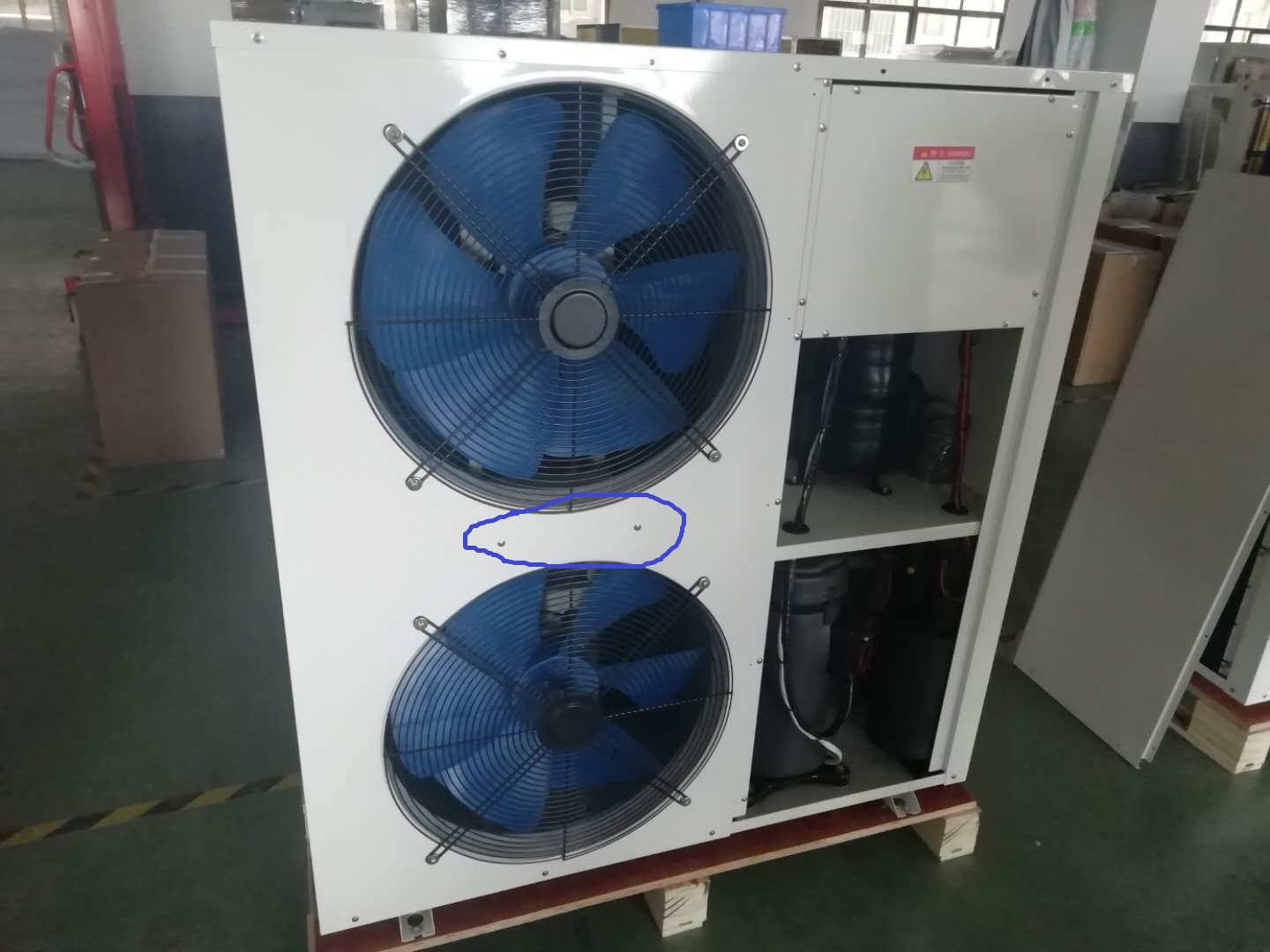

| Type: | Air Source Heat Pump |
| Model Number: | TAE-05R |
| Place of Origin: | China (Mainland) |
| Storage / Tankless: | Instant / Tankless |
| Installation: | Freestanding |
| Heating capaciyt: | 14kW |
| Compressor type: | Scroll |
| Compressor qty: | 1 |
Quick Details
Specifications
Product Features
- High-efficient scroll compressor Copeland / Sanyo / Daikin.
- R410A or R407C or R417A refrigerant.
- Base frame external panels made of polyester powder coated steel or stainless steel.
- Reverse cycle valve.
- Compact structure and sound control design.
- Water side equipped with efficient tank type heat exchanger.
- Automatic anti-freeze and defrosting function.
- Careful protection functions as high pressure. Low pressure, overheating, overload, anti-freezing, phase order, discharge temp, etc.
- General testing and operational test carried out for every unit before package in the factory
Technical Parameters
| Model | TAE-05R | TAE-06R |
|---|---|---|
| Cooling capacity(1) kW | 13.5 | 15.5 |
| Input power(1) kW | 4.1 | 4.9 |
| Heating capacity(2) kW | 15.1 | 19.1 |
| Input power(2) kW | 4.1 | 5.2 |
| Heating capacity(3) kW | 9.3 | 11.5 |
| Input power(3) kW | 3.95 | 4.85 |
| Max running current A | 13/28.5 | 14.5/34.2 |
| Power source | 380V/3Ph/50Hz | 380V/3Ph/50Hz |
| Nosie level dB(A) | ≤60 | ≤60 |
| Unit size mm | 1180x430x1310 | 1340x490x1410 |
| Unit quality kg | 155 | 175 |
| Working temp range ℃ | -25℃43℃ | -25℃43℃ |
| Refrigerant charge qty | 3.4 | 4 |
| Compressor qty pcs | 1 | 1 |
| Water flow m3/h | 3.50 | 4.20 |
| Conncetion in / out DN | 25 | 25 |
*Test conditions: (1). Rated cooling condition: Air source side DB/WB is 35℃/~, outlet water temp 7℃.
(2). Low temp heating: Air source side DB/WB is 7℃/6℃, outlet water temp 45℃.
(3). Super low temp heating: Air source side DB/WB is -12℃/-14℃, outlet water temp 41℃
