| Usage: | UV resistant Climate test chamber |
|---|---|
| Power: | Electronic |
| Brand Name: | HD |
| Warranty: | one year |
| weight: | 300kg |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

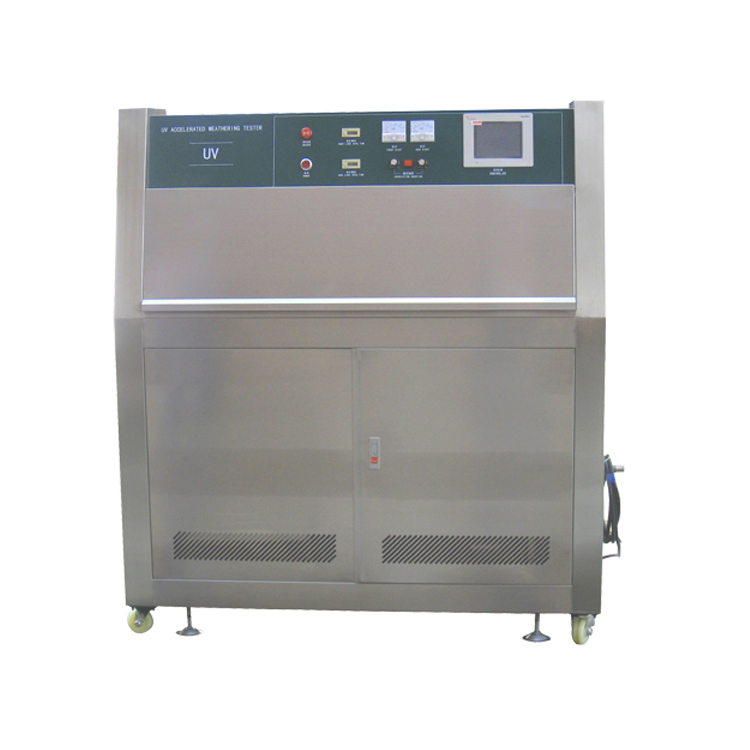

UV resistant Climate test chamber
UV lamp climate chamber, using an ultraviolet lamp as a light source, is designed to test sample for UV resistance by simulating ultraviolet radiation and condensation in natural sunlight.
Model |
HD-UV-1 |
HD-UV-2 |
Internal dimensions (D*W*H) |
450*1100*500mm | |
Performance | ||
Temperature range |
R.T. +10℃~70℃ | |
Temperature fluctuation |
≤±0.5℃ | |
Humidity range |
95%~98%RH | |
External dimensions (D*W*H) |
500*1300*1480mm | |
Working environment temperature |
+5℃...+35℃ | |
Light source |
UV-A/B light | |
Light source wavelength |
280...400 nm | |
Size of sample holder |
150x75x1.5mm | |
Center distance between sample and lamp |
50±2mm | |
Center distance between lamps |
70 ±2mm | |
Material | ||
InternalMaterial |
Stainless steel | |
Shell material |
Stainless steel | |
Humidification mode |
Electrical heating and steam humidification | |
Control system | ||
Operation interface |
Touch input |
Digital input |
Operation mode |
Program control / constant operation | |
Setting range |
According to temperature range | |
Input |
BPT (black-panel thermometer), PT-100 sensor | |
Subsidiary function |
Upper and lower limits alarm, alarm display, timer function. | |
Power supply |
AC220V±10%, 50Hz | |
