| Brand Name: | CFAN |
|---|---|
| usage: | XRF |
| Weight: | 22kg |
| Temperature range: | temperature range -3~23 |
| Power supply: | 100 v to 260 v |
| Model Number: | XF-A6 |
| Place of Origin: | China (Mainland) |
| Detector: | Si-Pin probe |
Quick Details
Specifications

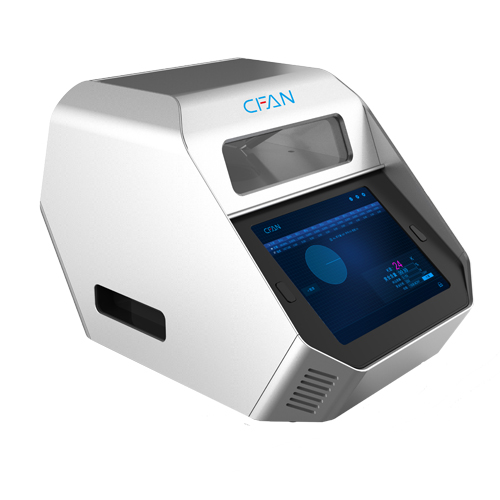

XF-A6 is a kind of X-ray fluorescence spectrum precious metal tester, which is based on years of precious metal detection technology and experience, and is independent research and development production by CFAN Instrument company. It is equipped with imported top imported Si-pin detector, all elements detection, computer-integrated and aeronautical design, High-end appearance, which owns more than 10 research and development patents, outstanding performance, cost-effective! Our standard is in line with the new national standard GB18043-2013, can be accurate detection of gold and silver jewelry.
Product advantage
Technical parameters
Standard configuration
Areas of application:
Product advantage
High cost performance
Can fast accurate detection of various precious metal, widely applied!
Nondestructive testingWill not cause any damage when measuring jewelry of any shape.
Simple and intelligent operationUnique one-button test function, automatic detection, no professional operation required
Fast for Testing3 seconds qualitative, 7 seconds can get intuitive results.
Easy to carryIntegrated design, small space, easy to carry and management.
Safe and durableHave anti-radiation function, the life of the machine is more than 10 years
High precisionPPM level accuracy, reliable testing data, plus or minus 0.01% of the detection precision
Operational safetyEquipped with radiation protection devices, and active protection operation safety.
Technical parameters
Equipment principles: X fluorescence energy dispersion
Accuracy: ±0.05%
Machine resolution: 145±5eV
Detector: Imported Si-pin probe
Temperature: - 11 ~ 46 ℃
Built-in capacitive touch LED: OLED (9.7 inches)
Size: 312480310mm
Label printer: support
Normal printer: support
Thermal printer: support
Balance/density meter: support
whether the battery support: yes
Built-in industrial control computer: YEs
Voltage: 100 v to 260 v
Rated power: 160 w
Weight:22kg
Standard configuration
Active radiation protection
Global fault diagnosis
Extension wire and auxiliary support
Global fault diagnosis
Extension wire and auxiliary support
High voltage over voltage protection
Lifting pressure started
Lifting pressure started
Light tube of protection
expanded screen
expanded screen
Areas of application:
Jewelry store
Pawn
Gold and silver COINS, collectors
Jewelry factory
Jewelry school
Professional laboratory
Quality inspection institutions
Metal handicraft industry
Precious metals smelting,
Purification of precious metals,
Precious metals recycling,
Geoscientific prospecting
Industry, rare metals
Alloy material detection
