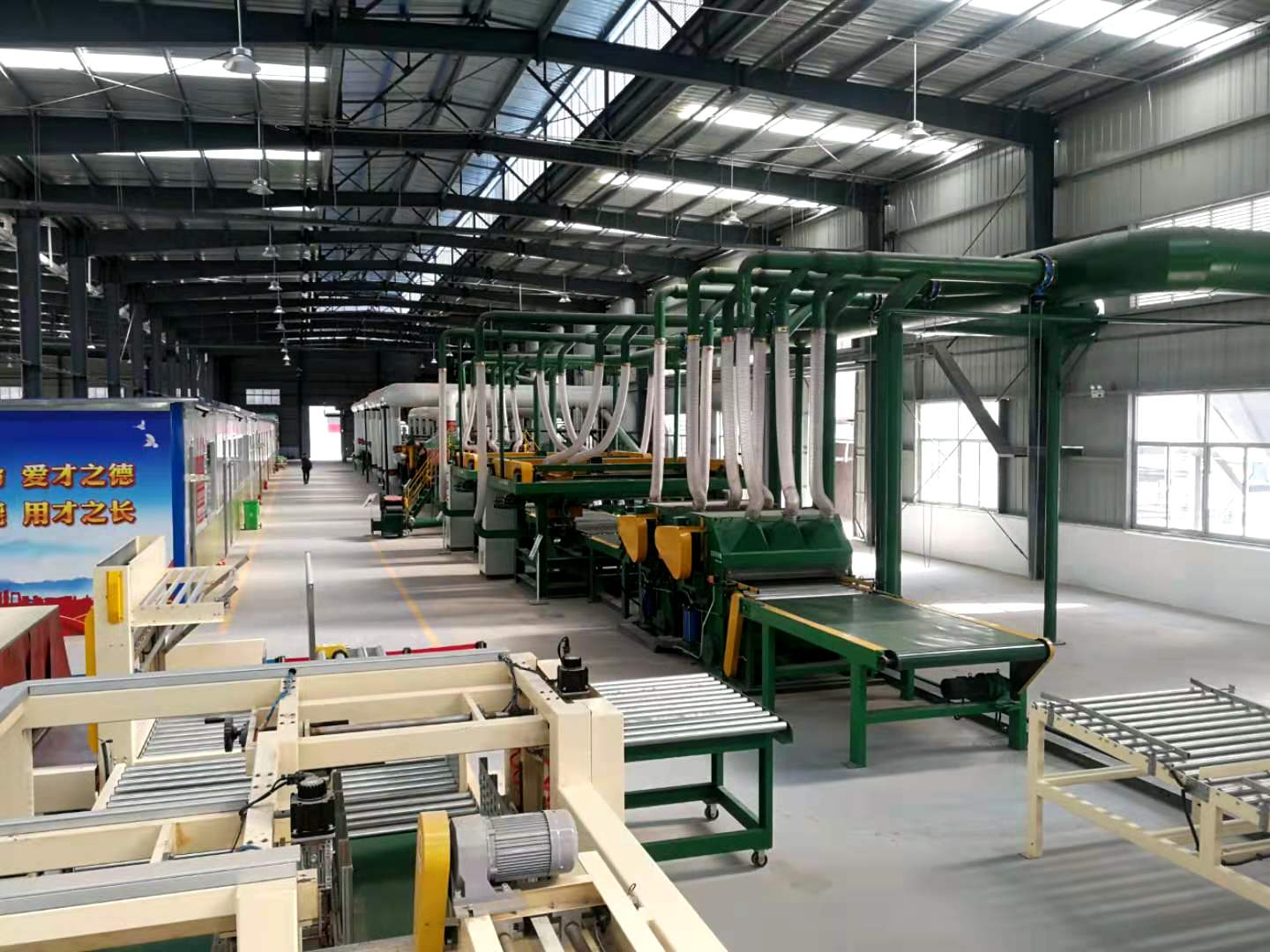

Cutting conveyor

(1)Function

Used to cut and trim lengthwise and complete product conveying.

(2)Structure

Length cutting conveyor is mainly consisted with following parts:

Conveyor roller bed: include frame, roll, dust collection tank and drive parts.

Length cutting saw: two sets, one for use, one for backup. Each set has 3 saws, and each saw has independent drive device and dust collection device.

Operation platform: to adjust and change length cutting saw conveniently, steel platform is set between two length cutting saws.


Trimming conveyor

(1)Function

Used to cut lengthwise waste edge from lengthwise conveyor or on line slitting.

(2)Structure

Broken edge conveyor is mainly consisted with following parts.

Conveying roller bed: consisted with frame, roll and drive parts. Synchronized operation with product line speed.

Broken edge machine: two trimming machines are installed each side of slide device respectively, which can make trimming machine move lengthwise.
