| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | Luzhong |
| Automatic Grade: | Semi-Automatic |
| Type: | Horizontal |
| Condition: | New |
| Certification: | ISO9001,CE |
| Weight: | 1920 |
| Dimension(L*W*H): | 4400x1140x1750 |
| Power(W): | 4KW |
| Voltage: | customized |
| Model Number: | C6140 |
| Place of Origin: | China (Mainland) |
| Max. Swing Diameter: | 400mm |
| CNC or Not: | Normal |
| Swing over cross slide: | 230mm |
| Distance between centers: | 750/1000/1500/2000/3000mm |
| Spindle bore: | 52(Optional:80) |
| Spindle bore taper: | MT6(Optional:Metric 1:20) |
| Spindle speed steps: | 9 |
Quick Details
Specifications
C6140 High Precision Metal Lathe Turning Machine Horizontal Lathe Machine
Product Description
1.Rail width is 360mm
2.Thread processing need to change gears
3.Tool size is 20*20mm
4.Gears is steel of precision grinding and hardened
Standard Configuration:
1.Hook wrench
2.Ineer hexagon spanner
3.Single-ended wrench
4.Socket wrench
5.3-jaw chuck
6.Dead center
7.Center sleeve
8.Triangular belt
9.Adjustment pad iron
10.Foundation bolts
11.Change gears
Optional Configuration
1.Steady Rest,Follow rest
2.DRO
3.Chuck cover,Tool post cover,Lead screw cover
4.Foot brake
5.Fast moving
6.Live center
7.4 jaw chuck
8.Drill chuck and holder
9.Face plate
10.Quick change tool post
11.Taper turning attachment
Product Parameters

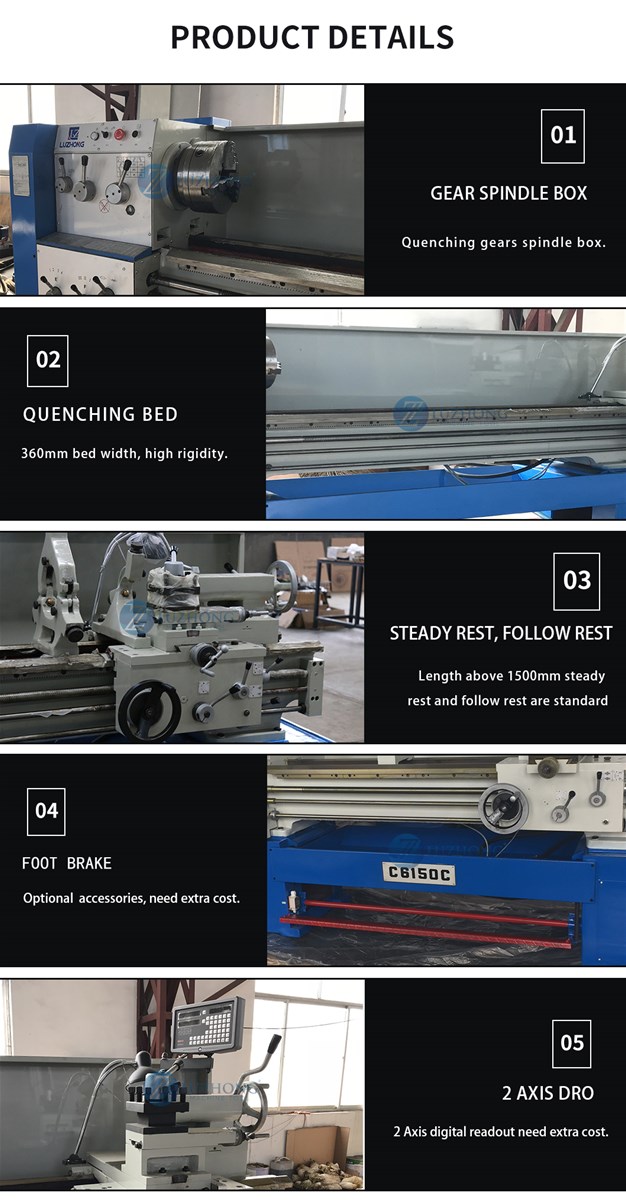

Detailed Photos
Company Profile
FAQ
1:how can I choose the most suitable machines ?
A: Please tell me your specifications,we can choose the best model for you, or you can choose the exact model.
You can also send us the products drawing,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine,CNC Milling Machine,Vertical Machining Center,Lathe Machines,Drilling Machine ,Radial Drilling Machine,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? how can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T,30% initial payment when order,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set.(Only some low cost machines will be more than 1 set )
2.Thread processing need to change gears
3.Tool size is 20*20mm
4.Gears is steel of precision grinding and hardened
Standard Configuration:
1.Hook wrench
2.Ineer hexagon spanner
3.Single-ended wrench
4.Socket wrench
5.3-jaw chuck
6.Dead center
7.Center sleeve
8.Triangular belt
9.Adjustment pad iron
10.Foundation bolts
11.Change gears
Optional Configuration
1.Steady Rest,Follow rest
2.DRO
3.Chuck cover,Tool post cover,Lead screw cover
4.Foot brake
5.Fast moving
6.Live center
7.4 jaw chuck
8.Drill chuck and holder
9.Face plate
10.Quick change tool post
11.Taper turning attachment
Product Parameters
SPECIFICATIONS |
Units |
C6140 |
Swing over bed |
mm |
400 |
Swing over cross slide |
mm |
230 |
Swing over gap |
mm |
- |
Distance between centers |
mm |
750/1000/1500/2000/3000 |
Spindle bore |
mm |
52(Optional:80) |
Spindle bore taper |
- |
MT6(Optional:Metric 1:20) |
Spindle speed steps |
- |
9 |
Spindle speed range |
rpm |
40-1400 |
CRoss slide travel |
mm |
200 |
Top tool post travel |
mm |
95 |
Tool size |
mm |
20 x 20 |
Longitudinal feeds range |
mm/r |
0.0832-4.6569 |
Cross feeds range |
mm/r |
0.048-2.688 |
Kindsof metric threads |
kinds |
19 |
Rangeof metric threads |
mm |
0.25-14 |
Kinds of inch threads |
kinds |
28 |
Range of inch threads |
T.P.I. |
2-40 |
Kinds oftHreads module |
kinds |
17 |
Range oftHreads module |
MP |
0.25-3.5 |
Tailstock quill diameter |
mm |
65 |
Tailstock quill taper |
- |
MT4 |
Tailstock quill travel |
mm |
130 |
Main motor power |
kw |
4 |
Coolant pump motor |
kw |
0.09 |
Weight for 750 |
kg |
1220 |
Weight for 1000 |
kg |
1320 |
Weight for 1500 |
kg |
1520 |
Weight for 2000 |
kg |
1720 |
Weight for 3000 |
kg |
1920 |
Dimension for 750 |
mm |
2200x1140x1750 |
Dimension for 1000 |
mm |
2400x1140x1750 |
Dimension for 1500 |
mm |
2900x1140x1750 |
Dimension for 2000 |
mm |
3400x1140x1750 |
Dimension for 3000 |
mm |
4400x1140x1750 |
1:how can I choose the most suitable machines ?
A: Please tell me your specifications,we can choose the best model for you, or you can choose the exact model.
You can also send us the products drawing,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine,CNC Milling Machine,Vertical Machining Center,Lathe Machines,Drilling Machine ,Radial Drilling Machine,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? how can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T,30% initial payment when order,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set.(Only some low cost machines will be more than 1 set )
