1.Product introduction

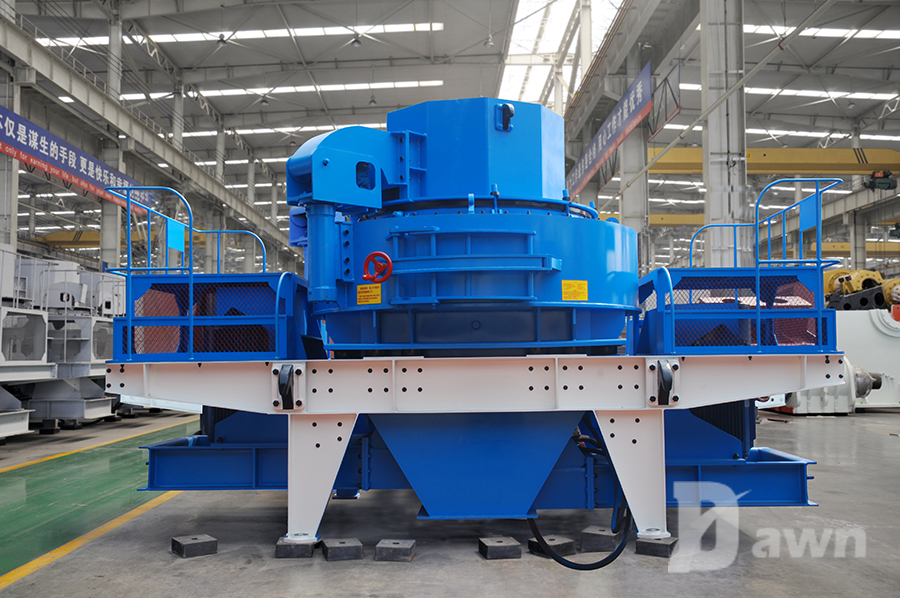

 VSI5X Vertical Shaft Impact Crusher is popular in the market. this machine can satisfy customers' requirements about efficiency and capacity, because its service life is increased by 48%, the costs are reduced by 30%, and the throughput of materials is improved by 30%.

2.Techincal parameters:

Model		VSI5X7615	VSI5X8522	VSI5X9532	VSI5X1145
Throughput capacity (t/h)	Center and Ring feeding	150~280	240~380	350~540	500~640
	Center feeding	70~140	120~190	180~280	250~360
Max. Feed Size (mm)	Soft material	<35	<40	<45	<50
	Hard material	<30	<35	<40	<45
Rotation speed (r/min)		1700~1900	1500~1700	1300~1510	1100~1310
Power of double motor (KW)		275 (100)	2110 (150)	2160 (220)	2220 (300)
Overall dimension LWH (mm)		410023302300	414025002700	456026002900	500027903320
Weight (t)		8.6	11.8	17.5	27.5
Thin oil lubrication station	Power for double oil pump	20.25(0.33)
	Safety	to make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cool;start the motor by heating it in winter
	Power for oil box heater	2 KW
	Overall dimension LWH (mm)	8205201270

 3.Performance features:

1. Rotor with deep chamber increases 30% capacity after perfect design.
2. Side plate direction can be changed to increase material utility ratio, operating ratio can be increased 48%.
3. Worn hammer with combined type is only changed to reduce operating cost 30%.
4. the most key wear resistant material uses wear resistant and high temperature resistant material in American important area.
5. Rhombus shape impact plate is used to prevent side plate from being damaged.
6. Bearing is famous international brand imported from Japan, Sweden, America, etc.
