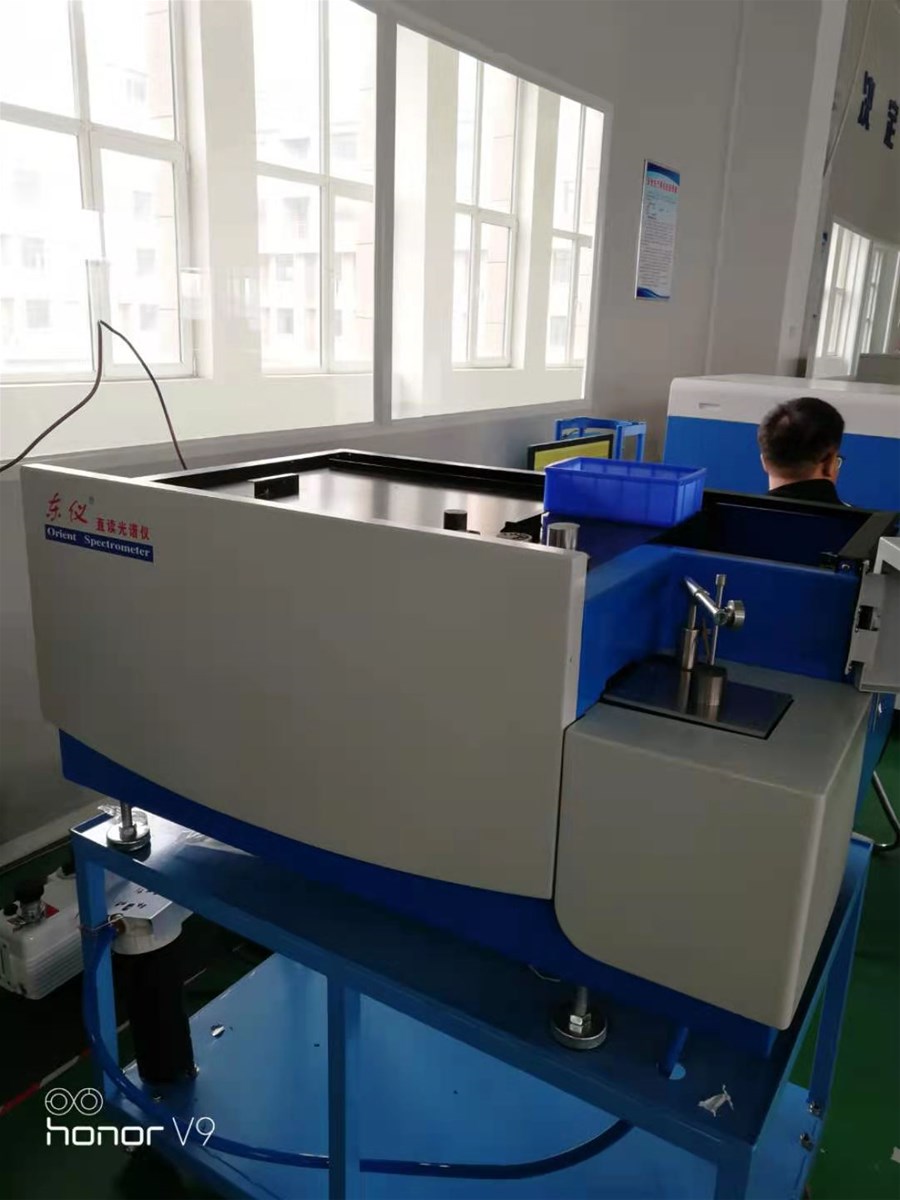

DF-410 full spectrum OES



Introduction



1) Czerny-Turner optical system is applied for a better plane CCD collection for all elemental wavelength that falls into 140-750nm.

2) Self-developed DF-IV collection device is able to collect all elemental wavelength between 140nm and 750nm.

3) Several matrices can be analyzed such as Fe, Cu, Ai, Zn, Ni, Sn, Ti, etc.

4) Module design for independent light collection, data processing and data optimization. with the help of high-performance ARM processor and real-time operational system, analytical time is largely shortened and accuracy is further improved.

5) 3G thermostatic system improves the energy efficiency to a great extent. The temperature fluctuation range of ±0.2℃ makes the DF-400 perform more stable.

6) the DF II-E digital-controlled light source broadens the elemental analytical range which covers trace elements, macro elements and elements with super high content.

7) Plane grating allows smaller number of CCD, further improving the accuracy and stability. It also occupies smaller space and makes set-up and movement a lot easier.

8) A whole new gas way; spark stand with cleaning function; adjustable master-slave gas ways equipped with a sealing device which prevents argon leakage; Quicker argon fulfillment.

9) the multipurpose operational software can meet various needs by displaying elemental data in a flexible way and supporting various printing formats.





Specifications



optiCal system	Structure	Czerny-Turner
	Curvature radius	400mm
	IV holographic original  grating with aberration correction function	2400 ruled lines/mm
	wAvelength range	140-750nm
	pIxel resolution	@200nm:7pm
	Vacuum optical chamber with auto thermostatic system	30±0.2℃ Vacuum range: 1.2-2.5 PA
lIght source system	lIght source	dIgital controlled Spark pulse
	cOntrol technique	PWM
	dIscharge current	10-400A
	eXcitation frequency	100-800Hz
	dIscharge duration	10-10000μs
sPark stand	Excitation chamber with minimum argon use
	eAsily-changeable foundation(lid)
	mObile fixing pin
dAta collection and control system	CCD detector with high resolution
	lInear CCD: Toshiba
	hIgh-speed 16-Bit A/D conversion
	rEsolution: 3648 pixel
	rEal-time control on temperature and vacuum state
	eThernet
Others	Matrices	Fe, Cu, Ai, Ni, Zn, Sn, Ti, etc.
	cHannel configuration	mUltiple matrices and channels
	dImensions(mm)	970*415*640
	eNvironmental requirement	T 10℃-35℃ H 20%-80%
	weight	130Kg (net weight), 180Kg (gross weight)
	V/F	AC220V±10%/50Hz
	power	mAx 800VA Standby 100VA
	argon	pUrity≥99.994%,press≥0.3MPa
