| Measurement Range: | F-U |
|---|---|
| Wavelength Range: | ppm-100% |
| Weight: | 115KG(net) 145KG(gross) |
| Size: | 900*550*1120 |
| Brand Name: | Orient Spectrometer |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

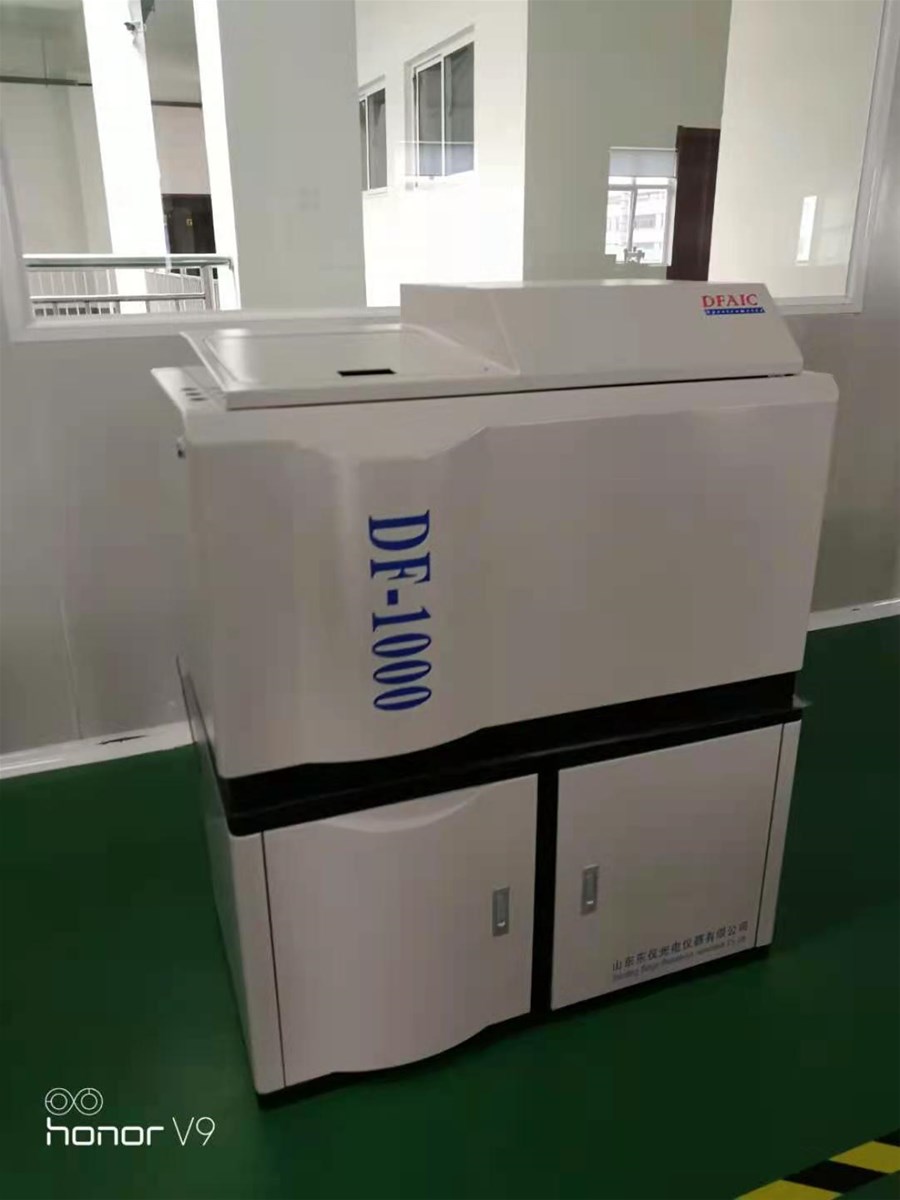

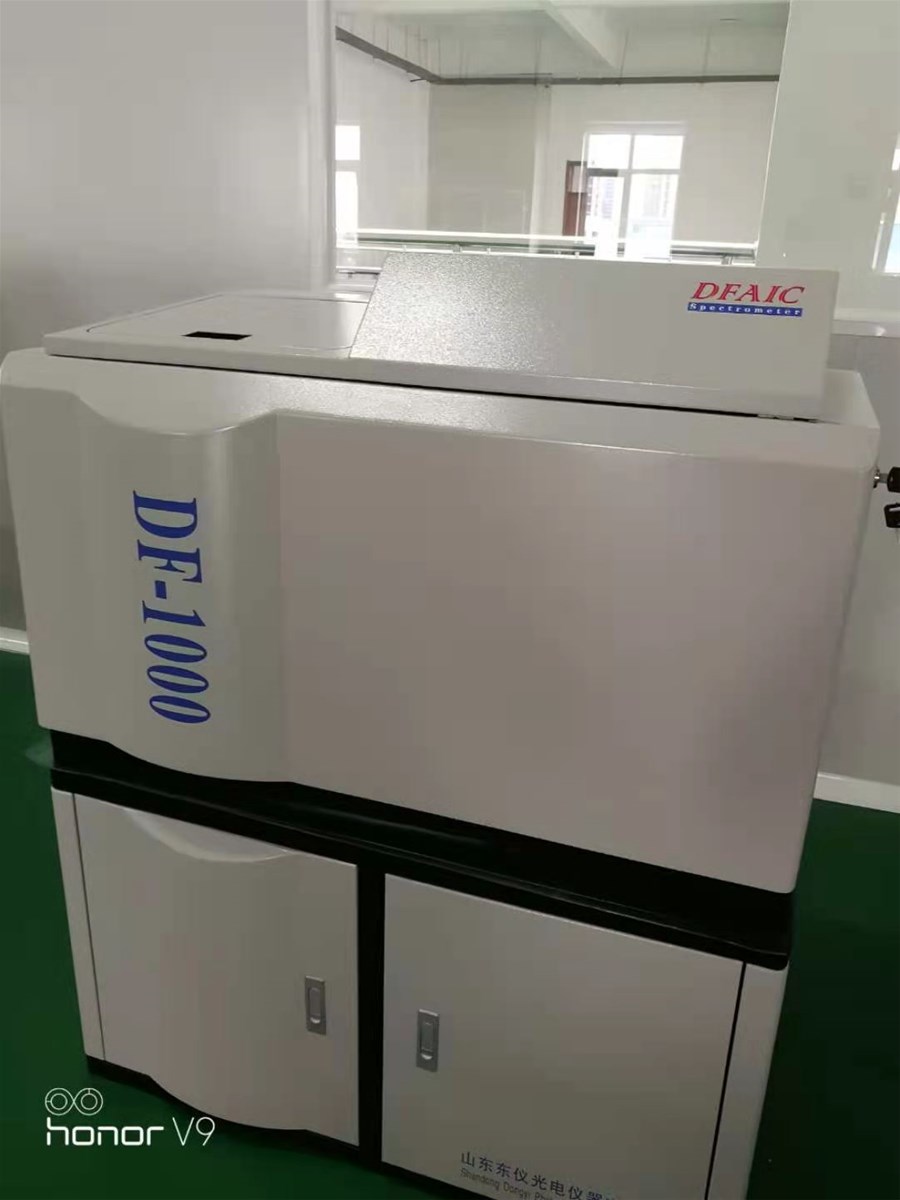

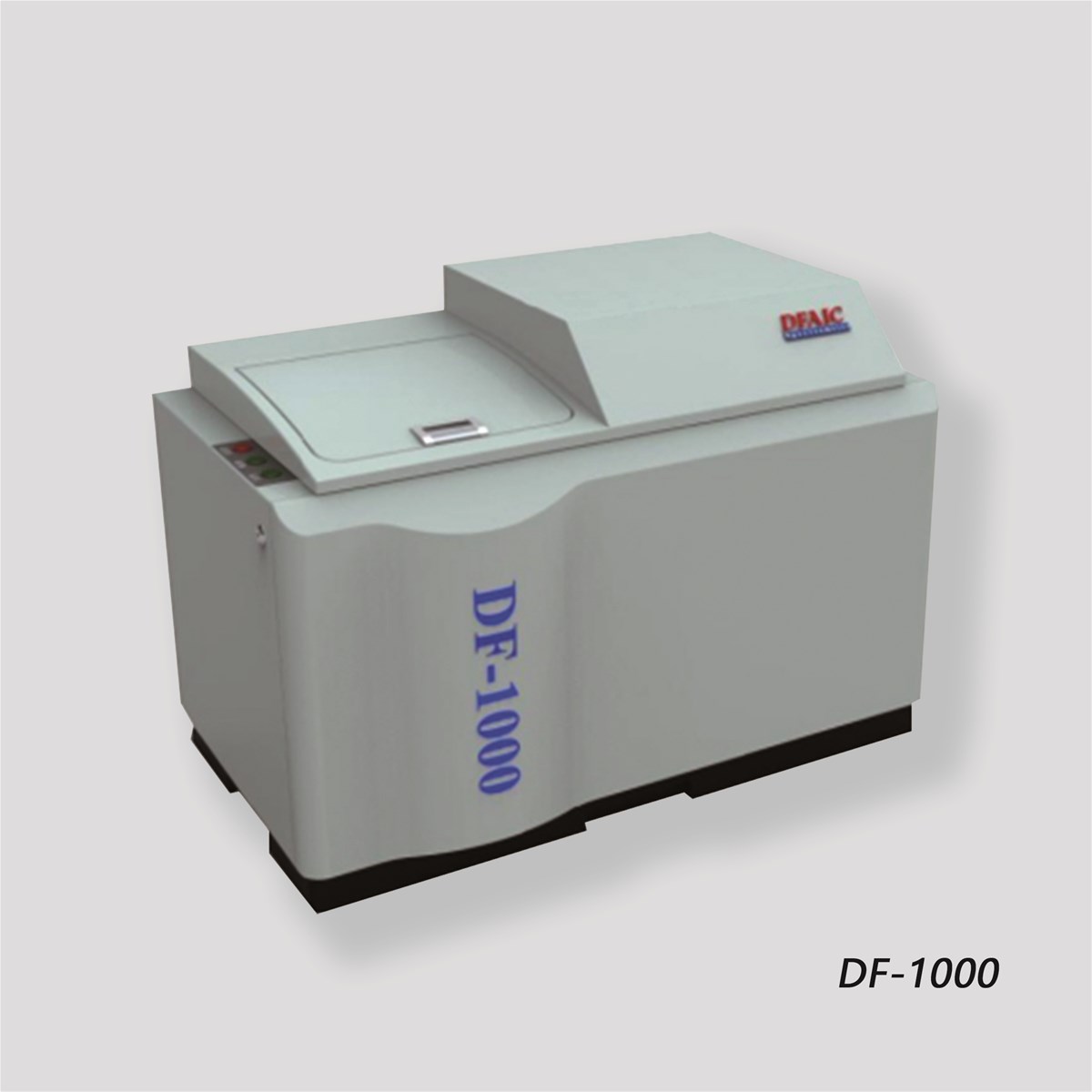

DF-1000 XRF
Introduction
1) Elemental analysis: F-U; concentration range: ppm~100%
2) Its detector and X-ray tube are placed above samples, which spares maintenance for damage due to fall of samples.
3) Servomotor-driven sample feeding system, ensuring the consistency of good performance.
4) Lossless analysis extends the life of samples.
5) Auto-mechatronic design; user-friendly operating interface.
6) Eight samples can be placed simultaneously and analyzed one by one automatically.
7) X-ray radiation is shielded
8) Temperature control system enhances its adaptability to temperature fluctuation of working environment.
9) Samples will be melted or pressed based on your analytical needs. Custom SDD detector with high count rate and super-thin window can make over 10 times deeper and fast analysis for light elements including Na, with high accuracy and stability.
10) User-friendly operational software with multiple language versions under WINDOWS operating system.
11) A flexible analytical software supports elemental display of all kinds. the display of the name and order of elemental oxides can also be made happen through this software.
12) A built-in parameters can help the making of your own work curves much easier.
Specifications
eXcitation system |
vOltage |
6kV-50kV |
mAx power |
50W | |
X-ray tube type |
Side-window and end-window | |
tArget material |
Rh, Ag, W, Mo, Pd, Ti,etc. | |
pArameter settings |
iNtegrated and adjustable filament power with consistent and adjustable voltage and current; pRotection for over electrical force and current | |
eXcitation source |
lOw ripple, high stability | |
sAmple feeding system |
Method |
sErvo motors and stepper motors |
Quantity |
8 samples can be placed at one time and analyzed one by one | |
Protection |
a special protection device is in place to ensure safety | |
dEtection system |
tHe latest VITUS-SDD detector from Germany | |
uSer-friendly with high resolution, high count-rate, high stability and high compatibility | ||
Super-thin C window can define the peak of F | ||
aUto light collimation and filtration system |
Shaft-driven fan embedded with six filters | |
aUto control system |
aDvanced anti-interference chip | |
hIghly-reliable driver circuit | ||
hIghly-precise A/D converter | ||
Others |
Application |
rEfractory materials, cement, glass, nonferrous metals, steel smelting, thermal insulation material, ceramics, metals and non-metal ores |
sAmple state |
pOwder, solid, liquid | |
Advantages |
hIgh stability, low LOD, Full wavelengthand losslessAnalysis | |
dImensions(mm) |
900*550*1120 | |
eNvironmental requirement |
T 5℃-30℃ H 20%-80% | |
Weight |
115KG(net) 145KG(gross) | |
V/F |
AC220V±10%/50Hz | |
power |
mAx 3KVA Standby 0.8KVA | |
