| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO9001:2008 |
| Weight: | 15kg |
| Brand Name: | Shengda |
| Condition: | New |
| Place of Origin: | China (Mainland) |
| Structure: | Cartridge |
| Type: | Return Filter |
| Mounting: | inline filter or return line filter |
| Flow: | up to 1300 l/min |
| Pressure: | up to 25 bar |
| Material: | aluminum, casting |
| Temperature range: | -10~ +100 centigrade |
| Seals: | NBR |
| Clogging indicator: | According to your requirement |
| Filter precision: | 3,5,10,20,25,50,100,200micron |
| Bypass valve: | with or without |
| Applicaition: | industrial industry |
Quick Details
Specifications

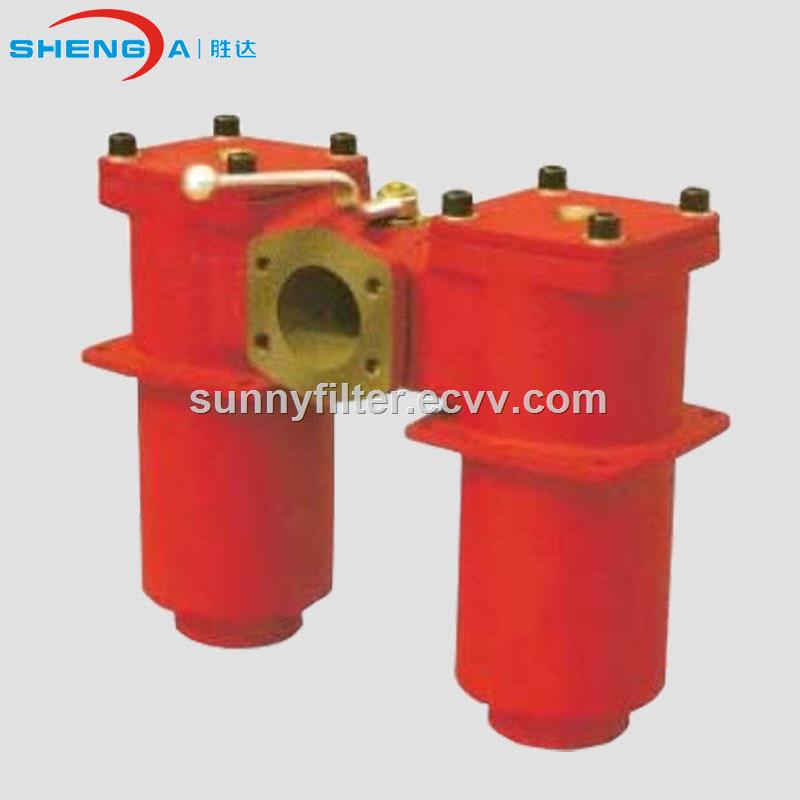

Change-over Return Line Filter (SDRFD)
---up to 1300 l/min
---up to 25 bar
---material: aluminum, casting
1. Filter Housing
Construction: Change-over Return Line Filter consists of one-piece housing with bolt-on cover plates. the Two housings are connected by a ball change-over valve with negative overlap and single-lever operation. There is a bypass valve and two clogging indicators On it.
2. Filter Element
Max. Allowable DP:
BN/ HC 25 bar P/HC 10 bar W/HC 30 bar V 30 bar
3. Description
Mounting as tank-top or inline filter
Flow Inlet: by bypass valve; Outlet: bottom
Temperature range -10℃~ +100℃
Pressure setting of clogging indicator PA= 2 bar 0.2 bar (others on Request)
Bypass cracking pressure Po= 3 bar - 0.5 bar (others on Request)
4. Application
It can be used for mineral oils, Lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.
