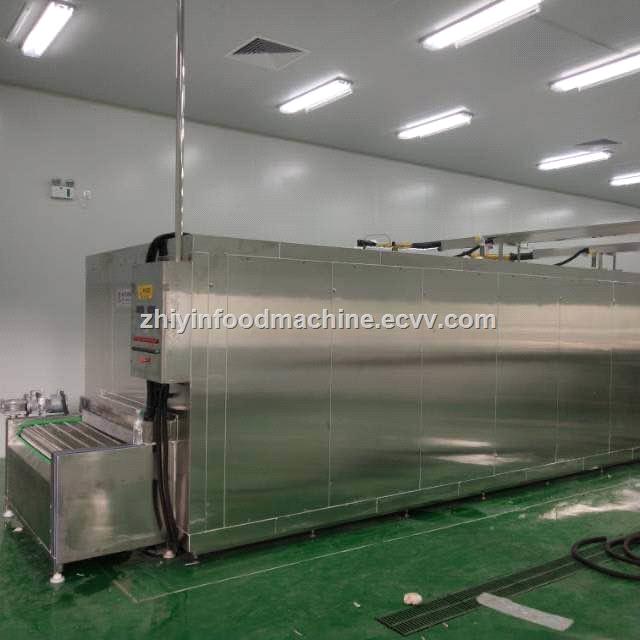

French Fries IQF Machine Tunnel Type Low Temperature Refrigeration Quick-freezing Machine
Industrial Food Freezing Machine Tunnel Quick-Freezing French Fries IQF Machine

Frozen product name:Pastry/fish/meat/seafood
Packaging:No packaging
Placement:on the conveyor belt
Cold product feeding temperature:<25℃ (central temperature)
Freezing time:Adjustable 15-45min
Freezing temperature:-35℃
Cooling capacity:40KW (+35℃/-50℃)
Freezing capacity:300KG/Hour
Industrial Food Freezing Machine Tunnel Quick-Freezing French Fries IQF Machine
Fluidized quick-freezing machine through mechanical vibration and wind pressure float frozen product in stainless steel mesh belt, frozen goods to prevent adhesions. Suitable for vegetables, fruits and otherparticles, flake, massive food.

French Fries IQF Machine Tunnel Type Low Temperature Refrigeration Quick-freezing Machine
(1) this equipment is mainly composed of transmission system, evaporator, high-pressure fan group, heat preservation body, internal and external brackets, and electrical control.
(2). the freezer external dimensions: length 8000mm *width 1400mm * height 2000mm, wherein the feed section length 1000mm, discharge section length 800mm.
(3). the machine is made of SUS304 stainless steel, with obvious features and advantages:
A. this equipment adopts high-pressure axial fan, which has the features of large air volume and high wind pressure.
B. with the optimized structure design, internal cleaning and overhaul are very convenient and meet HACCP management system requirements.
C. Variable-pitch design, low frost rate, delaying the flush cycle, and ensuring production continuity.
D. Strong air convection plus dedicated air volume distribution device, freezing and quick-freezing, and excellent frozen product quality.
E. in addition to some standard parts and gold processing parts, the quick-freezing machine is made of stainless steel. Food contact parts are made of food-grade materials.
F. the speed of the transmission belt adopts variable frequency stepless speed regulation, and the transmission belt speed can be arbitrarily adjusted to meet the requirements of different frozen products and different freezing time, and the speed regulation area is stable.
G.Using SUS304 high-strength stainless steel wire mesh belt, the bottom is made of UHMW quick-freeze special wear-resistant material soft support.

French Fries IQF Machine Tunnel Type Low Temperature Refrigeration Quick-freezing Machine

Industrial Food Freezing Machine Tunnel Quick-Freezing French Fries IQF Machine
Internal operating temperature:+35℃~-35℃
Cold product feeding temperature:LT;25℃ (central temperature)
Frozen product discharge temperature:-20℃ (central temperature)
Freezing time:adjustable from 15 to 45 minutes
Energy saving measures:
the inlet and outlet of the material shall be equipped with a wind shield to avoid the loss of cooling capacity caused by the direct blowing of the cold air out of the insulation layer and effectively reduce the loss of cooling capacity. In addition, a separate buffer room can be set.
