| Usage: | Oil Well |
|---|---|
| After-sales Service Provided: | No overseas service provided |
| Certification: | API |
| Brand Name: | UPET |
| Condition: | New |
| Usage: | Oilfield |
| Warranty: | 1 year |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

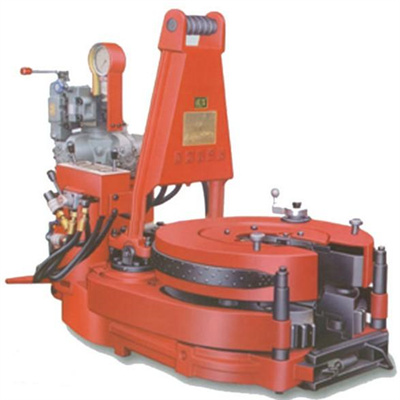

Drill Pipe power tong is an ideal well head tool for oil drilling, widely applied for making-up and breaking-out in offshore and onshore drilling operations and well servicing operations. the drill pipe tong features safety, labor-saving, and high-efficiency. Open-throat design of the ZQ series allows the tongs to escape from drilling pipe freely with high mobility. the tong is a combination of spinning tong and torque tong. It substitutes cathead, manual tong and rotary rope in making-up and breaking-out. The tongs are designed and manufactured according to industrial standard SY/T5074 and API Spec7K " Specification for Drilling Equipment"
Model |
ZQ127-25 |
ZQ127-25 Y |
ZQ162-50 |
ZQ203-100 |
ZQ203-125 |
ZQ162-50 II |
ZQ203-100 II |
ZQ203-125 II | |
Size rang |
Mm |
65-127 |
65-140 |
85-162 |
127-203 |
127-203 |
85-162 |
127-203 |
127-203 |
in |
2 3/8" -3 1/2" |
2 3/8" -5 1/2" |
2 3/8" -5" |
3 1/2" - 8" |
3 1/2" - 8" |
2 3/8" -5" |
3 1/2" -8" |
3 1/2" -8" | |
Max. Torque |
KN.M |
25 |
25 |
50 |
100 |
125 |
50 |
100 |
125 |
Ft.Lbf |
18440 |
18440 |
36880 |
73750 |
92200 |
36880 |
73750 |
92200 | |
Speed (H) |
rpm |
65 |
65 |
60 |
40 |
40 |
60 |
40 |
40 |
Speed (L) |
rpm |
10.5 |
10.5 |
4.1 |
2.7 |
2.7 |
4.1 |
2.7 |
2.7 |
Air pressure |
Mpa |
0.5-1 | |||||||
psi |
72-144 | ||||||||
Pressure rating |
Mpa |
12 |
16 |
16 |
16.6 |
20 |
16 |
16.6 |
20 |
psi |
1740 |
2320 |
2320 |
2400 |
2900 |
2320 |
2400 |
2900 | |
Flow rating |
L/min |
120 |
120 |
114 |
114 |
120 |
114 |
114 |
114 |
gpm |
32 |
32 |
30 |
30 |
32 |
30 |
30 |
30 | |
Shifting distance |
Mm |
1000 |
1000 |
1000 |
1500 |
1500 |
1000 |
1500 |
1500 |
in |
39.4 |
39.4 |
39.4 |
59 |
59 |
39.4 |
59 |
59 | |
Dimension: L x W x H |
Mm |
1110x735x815 |
1250x780x1000 |
1570x800x1190 |
1760x1000x1360 |
1785x1080x1360 |
1570x800x1370 |
1760x1000x1630 |
1785x1650x2050 |
in |
44x31x32 |
50x31x40 |
62x31x41 |
69x39x53 |
70x42x53 |
62x31x54 |
69x39x64 |
70x42x64 | |
Weight |
Kg |
620 |
650 |
1500 |
2400 |
2650 |
1700 |
2500 |
2750 |
lb |
1360 |
1433 |
3310 |
5290 |
5840 |
3748 |
5510 |
6063 | |
