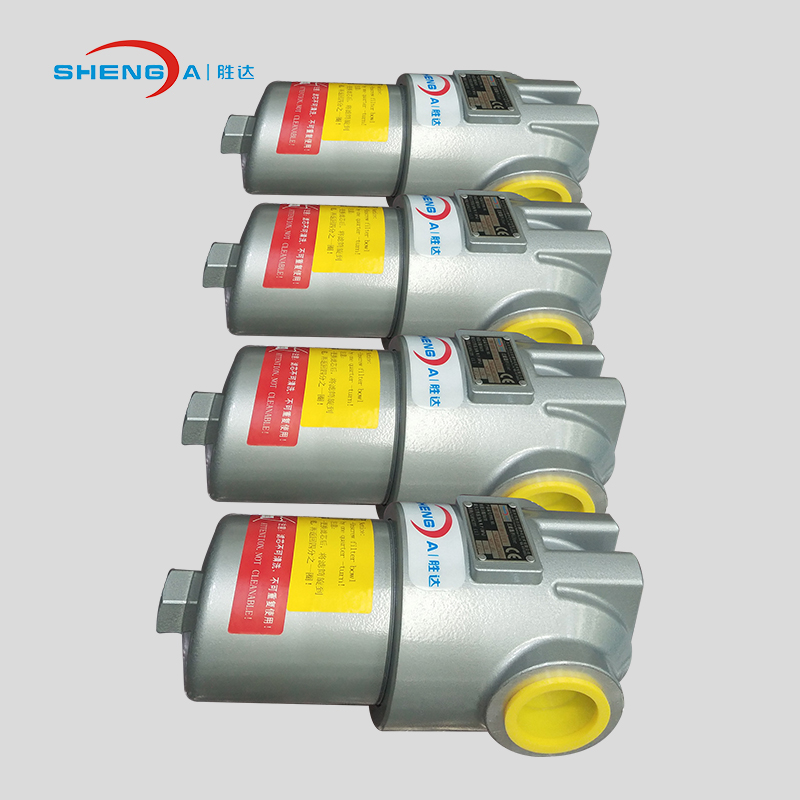

Low Pressure Inline Oil Filter

---up to 7000 L/min

---up to 100 bar

---material: aluminum

1.    Introduction

Construction

the filter housings are designed in accordance with International regulations. They consist of a filter head and a screw-in filter Bowl.

Standard Equipment:

L  connection for a clogging indicator in filter head

L  mounting Holes in the filter head

L  drain Screw with pressure relief (SDLF 330 and above)

Filter Element

Max. Allowable D.P.:

BN/HC: 20bar;    BH/HC: 210bar    W/HC: 20bar      V: 210bar

2.    Description

Mounting                as inline oil filter

Temperature range    - 30 ℃ ~ + 100 ℃

Pressure setting of clogging indicator PA= 5bar -0.5bar (others on request)

Cracking pressure of bypass valve Po=6 Bar+0.6bar (others on request)

Seals    NBR (=Perbunan)

3.    Notes

* Filter Housings must be earthed.

*  When Using electrical clogging indicators, the electrical power supply to the system Must be switched off before removing the clogging indicator connector.

4.    Application

It can be used for mineral oils, lubrication Oils, non-flam fluids, synthetic and rapidly biodegradable fluids.
