| Material: | Metal/rubber/nylon |
|---|---|
| Type: | Sleeve |
| Brand Name: | UPET |
| color: | customized |
| Size: | rotary tables |
Quick Details
Specifications

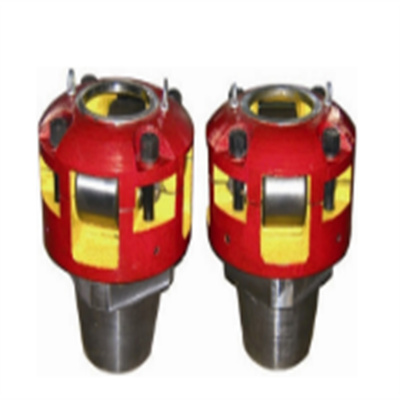

ROLLER KELLY BUSHING HDS, HDP, 4KRVS, 4KRBM
Roller Kelly bushing used for 17 1/2" to 49 1/2" rotary tables. They are designed and manufactured according to API spec 7k specification for drilling and well servicing equipment.
TECHNICAL SPECIFICATIONS
Model |
Type |
Drive Way |
Applicable Size of Kelly | |
HDS |
Heavy Duty |
Square Drive |
2 1/2"-6" |
3"-6" |
27-HDP |
PIN DRIVE |
2 1/2"-6" |
3"-6" | |
20-HDP |
2 1/2"-6" |
3"-6" | ||
4KRBM |
Medium Duty |
Square Drive |
2 1/2"-5 1/4" |
3"-4 1/4" |
4KRVS |
Light Duty |
2 1/2"-4 1/4" |
3"-4 1/4" | |
KELLY BUSHING |
ROLLER ASSEMBLIES | ||||||
KELLY SIZE/TYPE |
4KRVS |
4KRBM |
27HDP |
27HDS |
4KRVS |
4KRBM |
HDP/HDS |
3" HEX |
1402-30 |
5208-30 |
3650-30 |
3635-30 |
1450 |
5210 |
3667 |
3 1/2" HEX |
1402-35 |
5802-35 |
3650-35 |
3635-35 |
1451 |
5211 |
3668 |
4 1/4" HEX |
1402-42 |
5208-42 |
3650-42 |
3635-42 |
1452 |
2948 |
3669 |
5 1/4" HEX |
3650-52 |
3635-52 |
3672 | ||||
6" HEX |
3650-60 |
3635-60 |
3673 | ||||
2 1/2" SQ |
1401-25 |
5209-25 |
1445 |
2949 |
|||
3" SQ |
1401-30 |
5209-30 |
3651-30 |
3636-30 |
1446 |
2943 |
3660 |
3 1/2" SQ |
1401-35 |
5209-35 |
3651-35 |
3636-35 |
1447 |
2944 |
3661 |
4 1/4" SQ |
1401-42 |
5209-42 |
3651-42 |
3636-42 |
1448 |
2945 |
3662 |
5 1/4" SQ |
1401-52 |
3651-52 |
3636-52 |
3665 | |||
6" SQ |
3651-60 |
3636-60 |
3666 | ||||
