the AC/ DC charger of the electric vehicle can be used to charge the pure electric vehicle in accordance with the communication protocol standard between the non-vehicle conducting charger and the battery management system of the electric vehicle according to the GBT 27930-2011 and the connection device for conducting charging of the electric automobile in accordance with the GBT 20234.3

WOrk environment for wallbox charger:

1) Prevent rain and water from splashing, and avoid direct sunlight. It is necessary to keep away from the hazard source, such as fire source, combustible gas, rain, snow, salt fog, sand and dust,ect

2) Working temperature:-20℃~+45℃

3) Relative humidity: 5%~95%

4) aLtitude: ≤2000 m

the specification for E bus fast charger outdoor fast charger fast charging pile

Input interface:

1)Input AC three-phase five-wire (L1,L2,L3,N,TE),Three-phase fire line(L1,L2,L3)No timing requirements,Arbitrary wiring. the grounding line (TE/GND) is yellow and green,No connection is prohibited.Voltage range: 380V±15%.

1) Equipped with high-speed CAN network and electric vehicle BMS communication, it is used to judge the type of electric vehicle power battery, obtain the power battery system parameters, voltage, current, temperature and other state data of the power battery before and during charging, and complete charging control of the charger.

2) 7 inch touch LCD display, real-time display of the current power battery remaining power, charging voltage, charging current, charging remaining time, and charger fault state and other information.

3)Two buttons to complete charging (start/stop) switch and charger parameters Settings. Please refer to HMI section 6 for details.

4) Equipped with an emergency stop button, the DC output can be cut off in the first time in an emergency.

5) Air switch can cut off AC main input.

6) the connection between the AC input and DC output charging Plug  and the charging machine is detachable connector, which is convenient to separate the input and output lines from the body and store them when the product is not used, and It will Convenient to maintain and replace.

7) Generally, the charger can charge 10~15 degrees of electricity per hour.THe car can be fully charged in 1~2 hours, and the minibus can be fully charged in 3~5 hours.

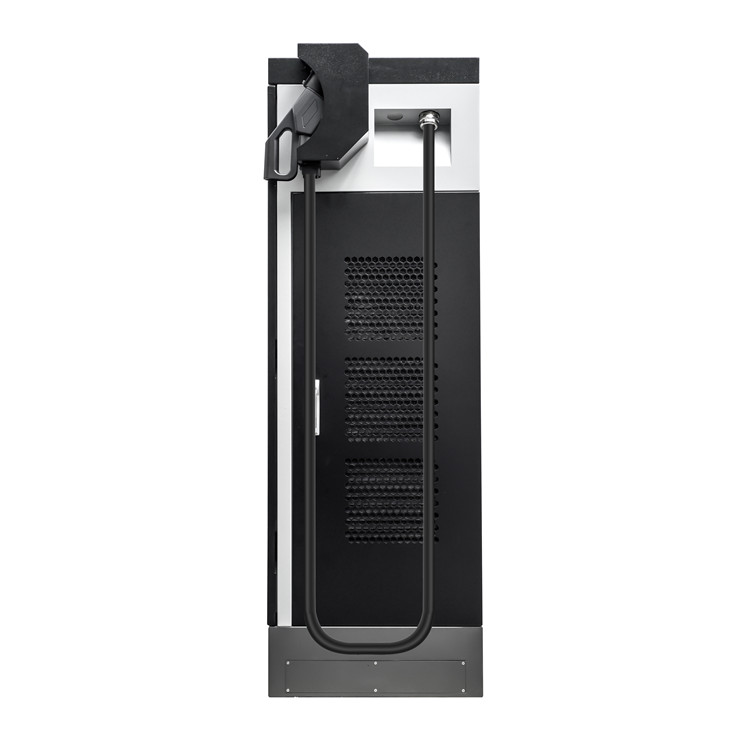

8) Please note that vents must not be placed toward the ground or blocked! the suggested placement direction is shown in the Picture.

Guangzhou Electway Technology Co., Ltd was founded on March 20th,2012.It is located in Huangpu District, Guangzhou.since its establishment, our company has been focusing on R&D, production, sales and other services of hardware&software products of power electronics in the field of new energy.
at present, Our company's main products are: a variety of domestic and international standard electric vehicle AC and DC charging station (stationary&wall-mounted), mobile off-board DC chrger,All Series of AC charging EVSE,Charging connectors,off - Grid electric vehicle discharge device V2H, changing power module and its peripheral products.

Our company invest great efforts on the development of technology and the accumulation of high-quality talents. We have a professional R&D team of more than 10 people.We pay Highly attention to the accumulation and protection of independent intellectual property rights.Our company has applied for a number of utility model patents and appearance patents, andregistered the trademark "ELECTWAY". Our company is a General VAT payer and has the qualification of import and export rights.Our products Have been exported to a wide range of domestic and oversea, and have gained a high reputation in the industry.

1pcs per carton,
Sending by Express TNT, Fedex,  DHL or by air, by sea by Customized

Express Freight cost Prepaid or Collect are both ok.

Q1:Are you a manufacturer or trading company?

A: We are a manufacturer

Q2: Where is your factory located? Can I visit it?

A:Our factory is located in Guangzhou city, Guangdong Province,China.

All our clients,from home or abroad,are warmly welcome to visit us.

Q3:What's the payment terms?

A:We accept T/T,L/C,Western Union,MoneyGram and so on.

Q4: What's the transportation way?

A: by sea,by air or by express. According to clients requirements.

Q5: how about your delivery time?

A: Generally, it will takes 7-14 days. the specific delivery time depends on the items and the quantity of your order.

Q6: What about your after sale service.

A: We will according to the international quality standards to inspect every products before delivery.

Q7: Can you provide samples?

A: Yes,we can provide samples.the sample fee and the shipping cost will be charged by the buyers.

Q8: Can you make customized products and customized packing?

A: Yes, all products can customized according to customer requirements.

about custom packing, we can put logo or other info on the packing box.

Q9: Can I be an Agent/Dealer of your products?

A: Welcome! but please let me know your Country/Area first, We will have a check and then talk about this. If you want any other kind of cooperation. Please don't hesitate to contact us.
