| Use: | Well Drilling |
|---|---|
| Material: | High Manganese Steel |
| Certification: | API |
| Type: | Hydraulic Support |
| Brand Name: | UPET |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
TECHNICAL SPECIFICATIONS
Type |
Cap |
Size |
Frame |
Link Size |
Weight | |||||
MIN. |
MAX. | |||||||||
|
tons |
Inches |
mm |
|
Inches |
mm |
Inches |
mm |
lbs |
kg |
MG |
100 |
2 3/8" - 5" |
60-127 |
30157Y |
1 3/4" |
44 |
2 3/4" |
70 |
210-233 |
95-106 |
RGG |
150 |
2 3/8" - 3 1/2" |
60-89 |
200680Y |
1 3/4" |
44 |
2 3/4" |
70 |
304 |
138 |
MGG |
250 |
3 1/2" 5 1/2" |
89-140 |
35005Y |
2 1/4" |
57 |
3 1/2" |
89 |
546-608 |
248-276 |
GG |
350 |
4" 5 1/2" |
102-140 |
31068Y |
2 1/4" |
57 |
3 1/2" |
89 |
672-693 |
305-314 |
HGG |
500 |
4" 6 5/8" |
102-169 |
70013Y |
2 3/4" |
70 |
4 3/4" |
121 |
1029 |
467 |
Note.

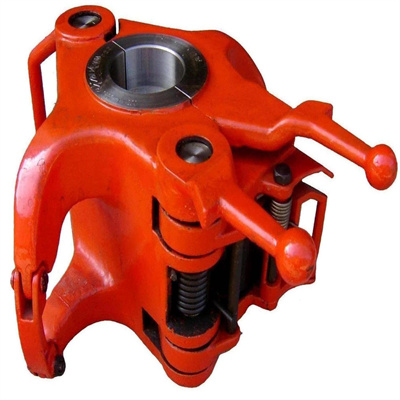

G series elevators are similar in design and construction to the A series, except they are bored to fit the contour of 18 type drill pipe. They are constructed in two halves of practically the same weight for better balance, making them easier to handle; easier to latch on and take off the pipe. In open position, a G-series elevator hangs ready for closing at any point below the upset of the pipe. Safety features include guarded operating handles to help prevent accidents to operators and an extra handle at the rear of the elevator for easier, safer operation.
