| Use: | Well Drilling |
|---|---|
| Material: | High Manganese Steel |
| Certification: | API |
| Type: | Hydraulic Support |
| Brand Name: | UPET |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
TECHNICAL SPECIFICATIONS
Type |
Cap. |
Size |
Frame |
Link Size |
Weight | |||||
Min. |
Max. | |||||||||
|
tons |
inches |
mm |
|
inches |
mm |
inches |
mm |
lbs |
kg |
SLX |
65 |
1.660" - 2 7/8" |
42 - 73 |
33734Y |
1 3/4" |
44.45 |
21/4" |
57.15 |
61 |
28 |
SLX |
100 |
2 3/8" - 2 7/8" |
60 - 73 |
33693Y |
1 3/4" |
44.45 |
23/4" |
69.85 |
77 |
35 |
SLX |
100 |
3 1/2" - 4" |
89 - 102 |
33809Y |
1 3/4" |
44.45 |
23/4" |
69.85 |
114 |
58 |
SLX |
100 |
4 1/2" - 5 1/2" |
114 - 140 |
33854Y |
1 3/4" |
44.45 |
23/4" |
69.85 |
145 |
66 |
SLX |
150 |
5 1/2" - 8 5/8" |
140 - 219 |
31239Y |
1 3/4" |
44.45 |
31/2" |
88.9 |
313 - 326 |
142-148 |
SLX |
150 |
9 5/8" - 10 3/4" |
245 - 273 |
33950Y |
1 3/4" |
44.45 |
31/2" |
88.9 |
343 - 357 |
156-162 |
SLX |
150 |
11 3/4" - 13 3/8" |
298 - 340 |
33892Y |
1 3/4" |
44.45 |
31/2" |
88.9 |
432 - 448 |
196-203 |
SLX |
150 |
16" |
406 |
34087Y |
1 3/4" |
44.45 |
31/2" |
88.9 |
537 |
244 |
SLX |
150 |
18 5/8" - 20" |
473 - 508 |
33632Y |
1 3/4" |
44.45 |
31/2" |
88.9 |
665 - 705 |
302 - 320 |
SLX |
250 |
24 1/2" |
622 |
34175Y |
1 3/4" |
44.45 |
31/2" |
88.9 |
1208 |
548 |
SLX |
350 |
9 5/8" - 13 3/8" |
244-340 |
29965Y |
1 3/4" |
44.45 |
31/2" |
88.9 |
1200 |
544 |

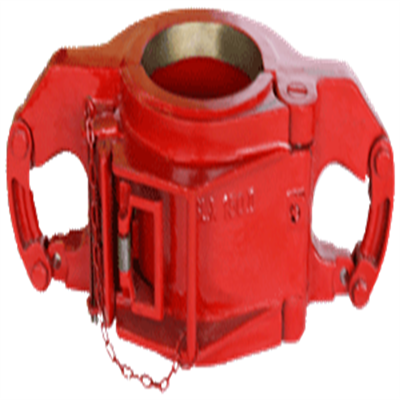

the SLX-series elevators handle all sizes of collar-type tubing, drill pipe and casing. the SLX has a shielded safety latch mounted on the elevator door. the shield protects the latch from accidental opening. both latches operate from a single handle, and then automatically reach when the elevator door is closed.
