| Use: | Well Drilling |
|---|---|
| Material: | High Manganese Steel |
| Certification: | API |
| Type: | Hydraulic Support |
| Brand Name: | UPET |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

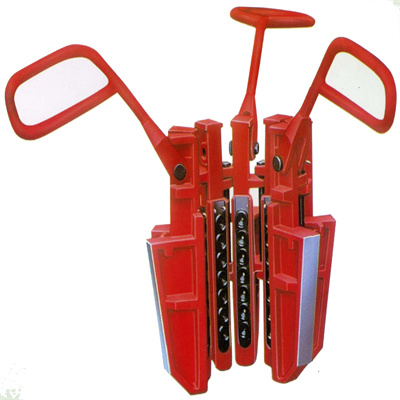

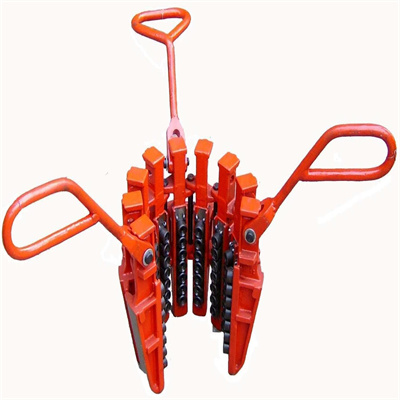

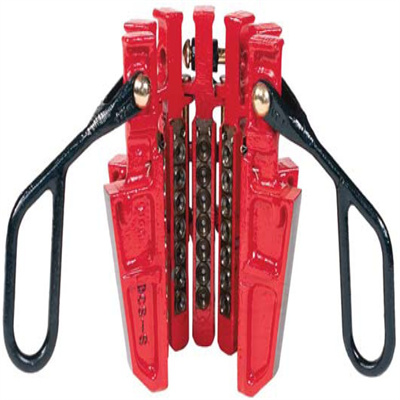

Each slip segments are castings with an extra long back to provide maximum support to the circular button gripping elements. Full wraparound design and circular buttons assure positive holding and slip setting. Drill collar slips are flat on top to accommodate the MP Clamp. All Our slips have an API taper of 4"/ft on the diameter.
DCS DRILL COLLAR SLIPS& INSERTS TECHNICAL SPECIFICATIONS
Slip Type |
DCS-S |
DCS-R |
DCS-L | |||||||||
Drill Collar OD (in) |
3"-4" |
4"-4 7/8" |
4 1/2"-6" |
5 1/2"-7" |
5 1/2"-7" |
6 3/4"-8 1/4" |
8"-9 1/2" |
8 1/2"-10" |
9 1/4"-11 1/4" |
11"-12 3/4" |
12"-14" | |
P/N: Slip W/Buttons and Safety Flex Handles |
2572 |
2573 |
2552 |
2550 |
2501 |
2503 |
2507 |
2530 |
2508 |
2534 |
2536 | |
Wt: Complete.Ibs (Kg) |
112(51) |
103(47) |
120(55) |
112(54) |
130(59) |
154(70) |
173(79) |
185(84) |
198(90) |
213(97) |
207(95) | |
Total Segments |
7 |
7 |
9 |
9 |
9 |
11 |
12 |
13 |
14 |
17 |
17 | |
Circular Buttons |
P/N |
2628-49 |
2620-49 |
2628-63 |
2628-63 |
2513-88 |
2630-88 |
2630-96 |
2627-104 |
2630-112 |
2625-136 |
2625-136 |
Wt.Ibs (KG) |
13(6) |
8(3.5) |
16(7) |
11(5) |
22(10) |
15(7) |
16(7) |
26(12) |
19(8.5) |
13(6) |
16(7) | |
Qty. |
49 |
49 |
63 |
63 |
88 |
88 |
96 |
104 |
112 |
136 |
136 | |
