| Panel PC information |
|
| Model Number |
AXD-10OPN1P1-PPC |

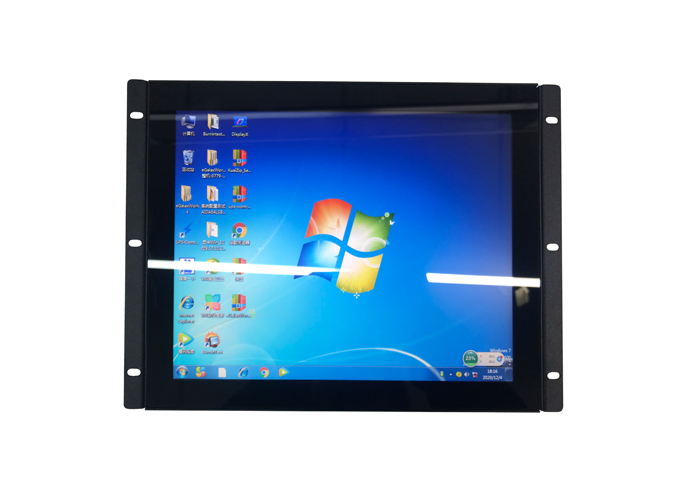

| 10.4'' 1024X768 Industrial touch panel PC |
| Case/Bezel Color |
Black |
| TFT Type |
Industrial LCD with LED backlight |
| Aspect ratio |
4:3 |
| Touch Panel |
Capacitive touch panel |
| Touch response time |
8ms (typical) |
| Optimal (native) Resolution |
1024X768 |
| LCD panel Pixel pitch |
0.264 x 0.264 mm |
| LCD panel Colors |
16.2 million |
| LCD panel Brightness |
350cd/m2 |
| LCD panel Response Time |
8ms |
| Contrast Ratio |
700:1 |
| Viewing Angle ( Wide ) |
|
| Horizontal (left/right) |
±80° or 160° total |
| Vertical (up/down) |
60°(up), 70°(down) or 130° total |
| CPU |
I3 Processor; DDR3 800MHz SDRAM |
| Storage |
64G SSD |
| Serial Ports |
2x COM ports could be installed if needed. |
| USB Ports |
4x USB external ports; 6 six USB internal ports |
| LAN |
1x LAN RJ-45 connector; could be two for options |
| Net |
1 x Realtek RTL8111C Gigabit Ethernet controller |
| DC Power in |
1 x DC Jack 2.5; 2Pin phoneix connector |
| Video Port |
1 x HDMI |
| Watch Dog Timer |
1~255 levels reset |
| Internal Sockets & Connectors |
1 x Compact Flash socket (reserved for OEM project) |
| Power Specification |
DC 12V;DC8-40V for options |
| Working Environment |
| Temperature |
Operating: -10°C to 60°C;Storage -20°C to 70°C |
| Operating Humidity |
5 ~ 90% RH @40°C (non-condensing |
| Vibration |
5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Shock |
Operating 16G, 11ms & Non-operating 4G, 20ms (with |
| Dimensions |
| Mounting Type |
Embedded Installation |
| Weight (Net) |
5.0 kgs/ piece |
| Drawings |
Please contact us for details |
