| After-sales Service Provided: | No overseas service provided |
|---|---|
| Certification: | API |
| Brand Name: | UPET |
| CNC or Not: | Normal |
| Condition: | New |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
FEATURES

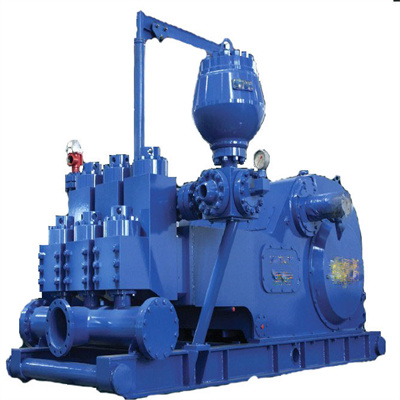

-F-series triplex mud pump's advanced structure and smooth operation will meet the requirements of middle-deep well drilling operations.
- Long stroke and reliable service, it can be run at the lower strokes per minute to extend the expandable parts life of fluid end.
-the suction valves can be interchangeable with the discharge valves. the main parts between three cylinders and fluid ends can be interchangeable and completely interchangeable with those of F-series pump of EMSCO.
F-SERIES MUD PUMP PARAMETER LIST
Model |
Unit |
F-500 |
F-800 |
F-1000 |
F-1300 |
F-1600 |
Max. Input power |
HP(Kw) |
500(370) |
800(590) |
1000(735) |
1300(969) |
1600(1193) |
Rated pump speed |
spm |
165 |
150 |
140 |
120 |
120 |
Max. Fulid cylinder liner bore |
in(mm) |
7(177.8) |
7(177.8) |
7(177.8) |
7(177.8) |
7(177.8) |
Stroke |
in(mm) |
7.5() |
9" () |
11" () |
12(304.8) |
12(304.8) |
Hydrostatic test pressure of standard fluid cylinders |
Psi(kg/c) |
7500(527) |
7500(527) |
7500(527) |
7500(527) |
7500(527) |
Ratio of gears |
|
4.268:1 |
4.185:1 |
4.207:1 |
4.324 |
4.324 |
Suction connection,ASA-150Ib,R.J.Flange |
in |
8 |
10 |
12 |
12 |
12 |
Discharge connection cross w/API-5000-Ib R.J. Flange |
in |
4 |
5 |
5 |
5 |
5 |
Valve port, API |
|
API 5# |
API 6# |
API 6# |
API 7# |
API 7# |
Weight |
Ibs(kg) |
21540(9770) |
31965 (14500) |
41423(18790) |
45650(20707) |
46820(21238) |

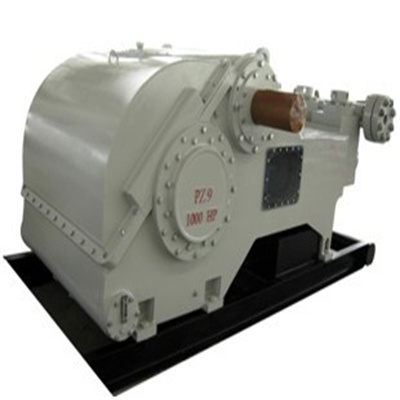

PZ Series Pump
Model |
Max liner size & Stroke(in) |
Displacement (GPM) |
Max. RPM |
Power Rating (HP) |
Gear Ratio |
Weight(lbs) |
PAH |
5x8 |
357 |
175 |
275 |
4.7:1 |
9.2 |
PZ-9 |
7x9 |
585 |
130 |
1000 |
4.48:1 |
24,368 |
PZ-11 |
7x11 |
632 |
115 |
16000 |
4.38:1 |
37,000 |
