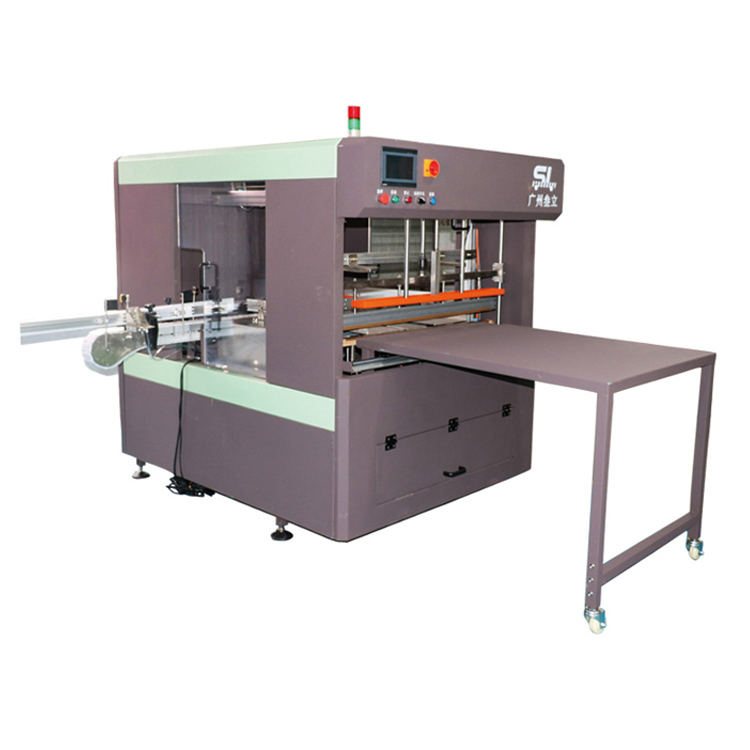

Automatic plastic HDPE PVC PP bottle barrel bagging packing machine package machinery



1.Brief Introduction:



this machine is suitable for packing, which is for medicine, chemical, food and commodity etc and flat, square, oval and tapered etc.

Automatic Bottle Bagging Machine is the perfect labor-saving solution to meet the demands of high-speed Packing Lines.



2.Techincal parameters:



Product name	EMpty bottle bagging machine
Model	SL-DBJ-H
Power supply	AC220V 10% 50HZ
Power	1Kw
Air source	6-8Bar
Packing object	500ml-5000ml round or equilateral square bottle
Packing speed	3000-4500 bottles\hour
the height of the working platform	900mm
the max. width of the packed bottle	150mm
the max. Height of the packed bottle	350mm
Color	Light green/ gray
Machine size	2.75M*1.4M*2.6M (the linear length of the conveyor belt extending from the equipment is500mm)
Weight	450kg



3.Performance features:

1. Simple design and practical.

2. this equipment can locate accurately and connect with production line such as bottle blowing machine, leak detector, visual detector, and labelling machine.

3. Automatic plastic bottle packing machine can be adjustable, suitable for different size of plastic bags. the numbers of vertical and horizontal can be adjustable.

4. Automatic sealing of hot melt system.

5. Packaging bag requirements: PE bag, the max.Adaptable width is 850mm, this width is the width after packaging.

6. Products of different sizes and shapes can be packed.

7. the bottle pusher has a positioning device, the positioning position is adjustable.

8. the platform at the bagging position is movable.
