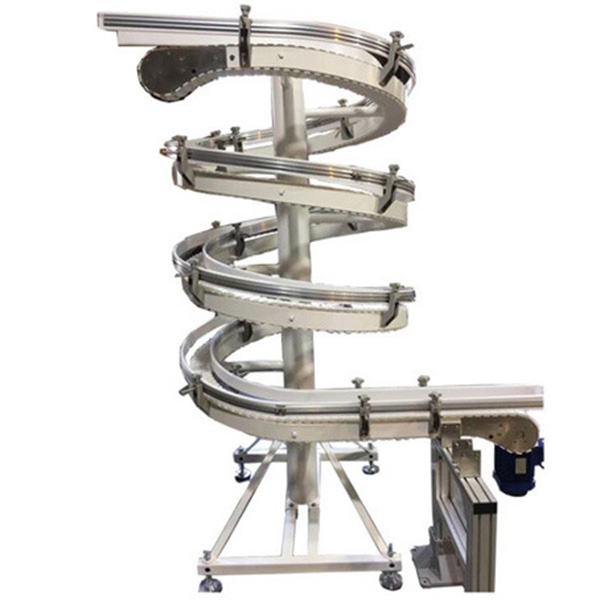

Spiral Conveyor Cooling Tower Spiral Cooling Conveyor


1.Brief Introduction:



the conveyor is used in the various production lines. It is used to convey PET bottles, glass bottles, pop-top cans and other containers etc,. The length and width can be customized according to clients' requirements. It is widely used for automatic transmission, distribution and packaging in food, tin cans, drugs, beverage, cosmetics, cleaning products, paper products, spices, dairy and tobacco.

2.Techincal parameters:



Product name	Spiral conveyor
Model	SL-LXJ
Power supply	AC380/220V 10% 50HZ
Power	0.25-1.1Kw
Width of conveyor chain	45/65/85/105/175mm (it can customize according to client's requirements.)
COnveying speed	5-30m/min
Conveyor material	White POM/PP



3.Performance features:

the main body is made of painted carbon steel, simple structure, corrosion resistance, easily cleaning and maintenance, large conveyor capacity, high speed.

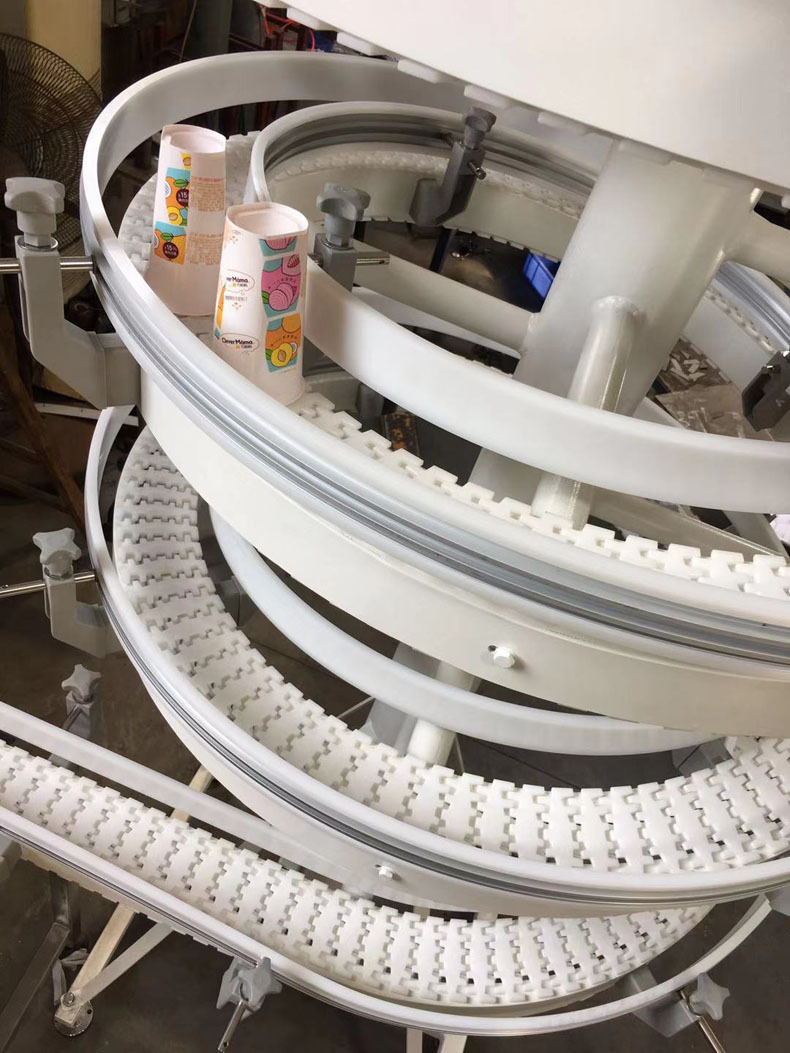

Adopt grey SL-PP bearing type chain plate in spiral inside,the bottom is driven by a carbon steel side bend chain.

Black polymer wearing stripe is installed in both sides of the track.

the pillars on the column are made of painted carbon steel and fastened to the column with screws.

the fence of spiral conveyor is made of 304 stainless steel plate, and fastened to the pillars with screws.

Control box, inverter and Schneider electric components.
