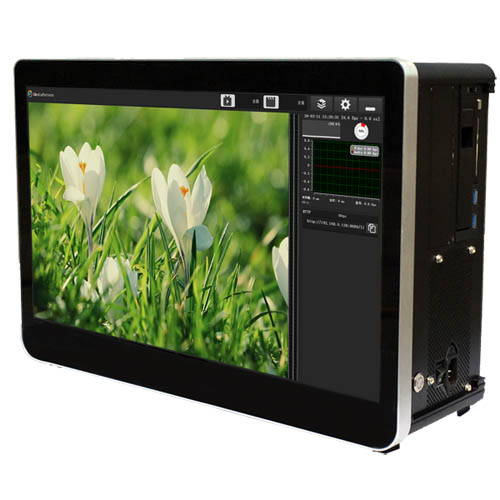

VNNA E8000 8k Ultra-HD encoder series is a special hardware equipment developed by Guangzhou YUENA company (core module copyright certificate number: soft writing No. 0983287) for 8k (7680x4320) HD video signal (downward compatible with 720p / 1080p / 4K etc.) coding and network transmission. under the high-performance architecture, adopt the solutions of hardware coding + software, It integrates the scalability of software coding and the stability of hardware coding and uses the most high efficient HEVC/H.265.

H.264 High Profile that is High digital video compression technology, has the characteristics of stable and reliable, high definition, low bit rate, low time delay (option: ultra-low delay < 0.3 seconds) etc.  Support a variety of signal input sources, from external acquisition (12G-SDI input port), video files to a variety of network live streaming, output can be sealed in FLV, TS, MP4 package; Support IPv4 and IPv6 internet protocol; A variety of live streaming protocols (HTTP, RTMP, RTSP, UDP, HLS, NDI) are outputted at the same time to make different terminal devices (such as Android, windows, IOS platforms) be able to access. It is widely used in various 8K live broadcast occasions where high-definition video signals` resolution is up to 7680x4320, are collected and transmitted through IP network. It is also suitable for various 8K recording, 8K splicing, etc.

Characteristic

   Support 8k(7680x4320)Resolution;

   H.264 High Profile;

   Support Internet protocol:IPv4, IPv6;

   Hardware coding+software solutions;

   Support the terminals of mobile phone, tablet, computer, TV etc.;

  Support the audio format of AAC, MP3 etc.;

  Support signal sources in multi formats, AVI, TS, MP4, MPEG-1,MPEG-2, MPEG-4,WMV etc.;

   Support signal sources working as multi network streams: HTTP, MMS, RTMP, UDP, RTSP, NDI etc. ;

  Support the output such as HLS,GRMP,GRTP,RTMP,HTTP,UDP,RTSP,NDI etc.;

 Support coding mode of variable bit rate (VBR), constant-bit-rate (CBR), CQP and forward prediction (LA);

   Support set-top box real-time reception and multi IPTV Video on demand server;

 Variable GOP structure:  I, IP, IBP, IBBP;

   Ultra-low time delay IP network transmit, less than 500ms;

   Support signals from outside splicing combination;

   Support the format of recording files of TS, MP4 and FLV;

 Power-on automatic coding, automatic operation, no need of manual processing;

 Support video and audio pre- monitoring to detect signal errors at any time.

Application:

 8k large screen splicing

 8k live broadcast and on demand

   Video conference

   Network monitoring command

   Distance education, etc

Parameters
