| Max. Voltage: | AC110V/AC220V |
|---|---|
| Max. Current: | 1.4A |
| Brand Name: | HILINE |
| Operating Temperature: | -10. |
| Color: | Black |
| Model Number: | MT-1009A |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

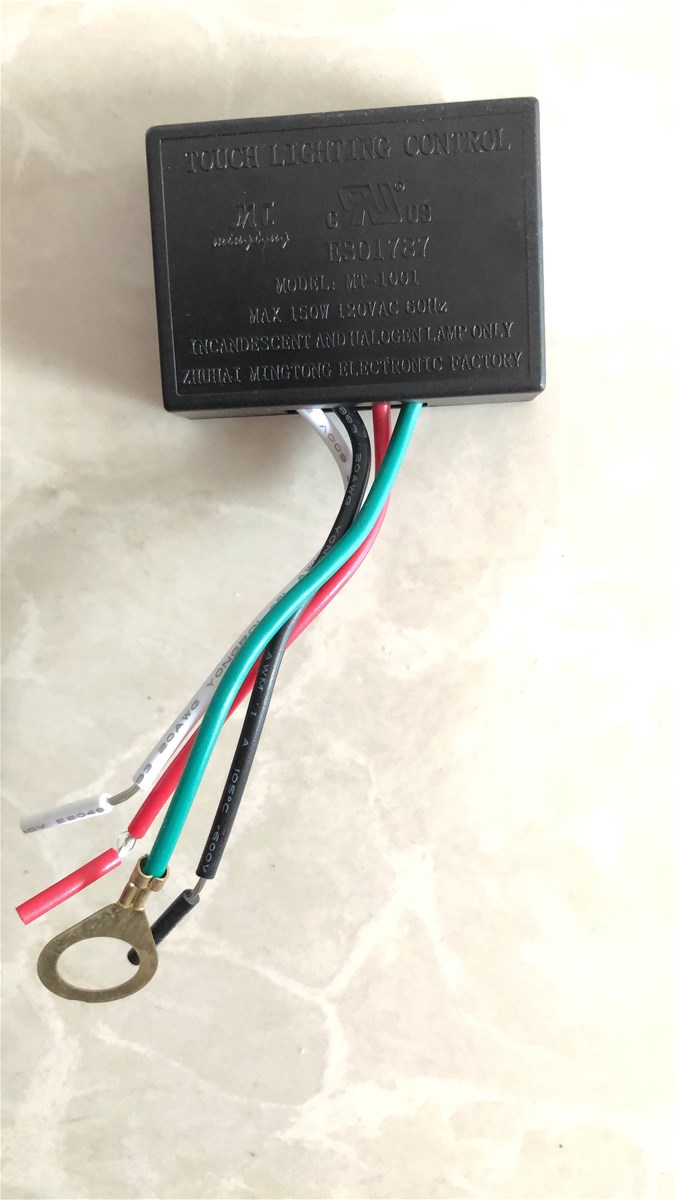

1-150W MT-1009A LED
Mini Touch Dim Switch features:
1. AC110 or 220V input, optical isolated for
Input & output;
2. Ultra small size, easy to install;
3. TUV, RoHS and UL approval;
4. 4 steps of sensitive dimming: low, medium,
High & off;
5. Suitable for new type of LED filament bulb
from 1W-150W;
6. 360 ° omnibearing luminious.
7. Energy saving, 3.5W is equivalent to 40W
Incandescent lamp.
1-60W MT-1009A LED Mini Touch Dim Switch Parameters:
Model: |
MT-1001UL |
MT-1009A |
Input voltage: |
AC90-130V/60Hz |
AC170-250V/50Hz |
Max Loadable power: |
1-150W |
1-60W |
Dimming steps: |
4 steps: low, medium, high & off |
4 steps: low, medium, high & off |
Voltage Tolerance: |
1500V AC/1mA/60s |
1500V AC/1mA/60s |
Certificate: |
CE, RoHS,UL & CUL |
CE, RoHS |
Rated thermal current: |
2A |
4A |
Product size: |
L51*W36*H16(mm) |
L51*W36*H29(mm) |
Weight: |
40g |
40g |
Feature Function: |
Optical isolation protection |
Optical isolation protection |
