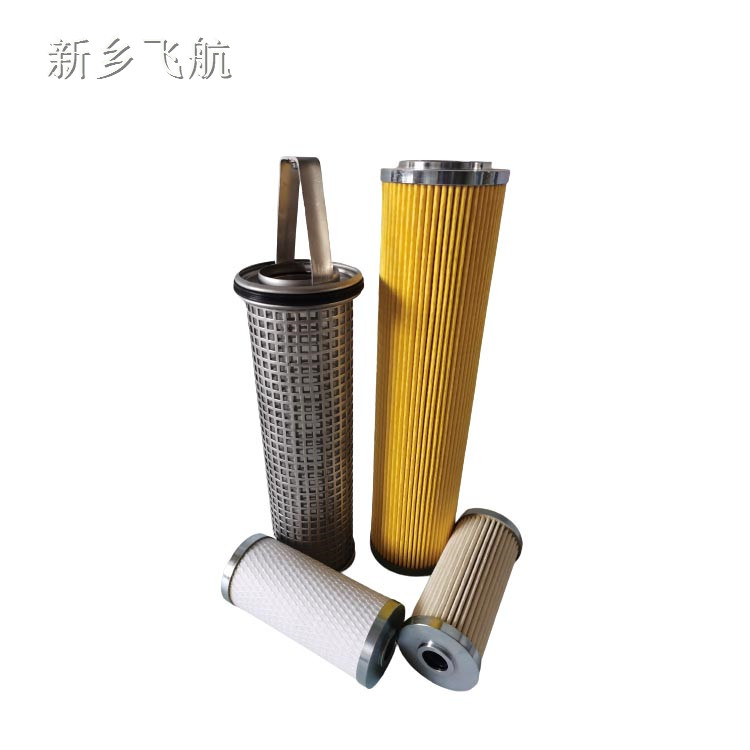

Marine diesel filter, its filter core is made of rod-shaped stainless steel wire mesh core, which is called "candle filter", "candle filter", "candle filter", and "stick filter" because it resembles the Chinese "candle". And other names. Candle filter element is the filter element in BOLL main engine lubricating oil filter. It is used to filter solid particles and colloidal substances in the working medium, which can effectively control the pollution degree of the system.

Candle filter element|Candle filter element|Marine rod filter element|Structural features:

Filter layer: stainless steel metal special wire mesh, stainless steel sintered mesh, stainless steel sintered felt

End caps: stainless steel machined end caps, plastic molded end caps, nylon mesh end caps

Connection form: spring type, plug-in type, threaded type (conventional thread M26*1.5)

Accuracy range: 20 microns-100 microns, of which 40 microns are more common

Working medium: lubricating oil, hydraulic oil

Working temperature: -30℃ +110℃

Connection method: thread M27*1.5

the candle filter produced by Feihang Purification has the following characteristics:

Small resistance pressure loss, high strength

It can be cleaned repeatedly and has a long service life

the filter element and the fixed disc are fixed by bolts or threaded, which is convenient for installation, disassembly and cleaning

High strength, long life, strong corrosion resistance, wide operating temperature range, no material detachment

Large filtration area, large flow, high porosity, good permeability, strong dirt holding capacity, and strong reusability

Candle type filter element is mainly used for oil filtration. It is composed of multiple filter elements and a magnetic filter element. the same specifications and dimensions effectively increase the filter area;
