Usage: | Transformer Oil BDV Tester |
---|---|
Power: | Electronic |
Brand Name: | GOLD |
Warranty: | 1 years |
weight: | 16KG |
Model Number: | GDYJ-502A |
Place of Origin: | China (Mainland) |
Quick Details
Specifications
IEC60156 Transformer Dielectric Constant Tester and Insulation Oil BDV Tester(Single Cup)
Importance of testing transformer insulating oil, a type of and cooling oil used in and other electrical equipment, needs to be periodically to ensure that it is still fit for purpose. this is because it tends to deteriorate over time. Testing sequences and procedures are defined by various international standards, many of them set by .Transformer oil testing consists of measuring and other and properties of samples of the oil, either in a laboratory or using portable test equipment on-site.
AC 0-80/100KV Epoxy Transformer Oil Breakdown Voltage Test Set Introduction:
L It is developed according to IEC156 Insulating Oil Dielectric Strength Testing Method;Proof test:5 minutes standard test, Manual test;
L the oil test vessel with temperature measurement unit, so it can detect oil temperature.

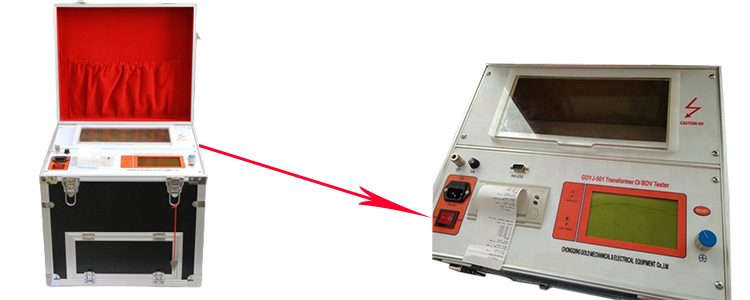

L It has large LCD display(256*128mm), all the selection can be done by touch panel with color LCD;
L It also with micro-printer and can store 100 groups data, test data can also be upload to PC and output word report automatically;
L It is multi-functional, stable, and easy for operation .
AC 0-80/100KV Epoxy Transformer Oil Breakdown Voltage Test Set Specifications:
No. |
Parameters |
Specifications |
1 |
Output voltage |
AC 0~80KV (100KV for choice) |
2 |
Rate of voltage rise |
0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% |
3 |
Max. Test times |
9 |
4 |
Stir time |
0~999s |
5 |
Wait time |
0~999s |
6 |
Measurement accuracy |
±(1% of full scale + 2 digits) |
7 |
Resolution |
0.1KV |
8 |
Oil Temperature measurement range |
0°C to 70°C, or better |
9 |
Temperature resolution |
1°C, or better |
10 |
Data storage |
100 groups |
11 |
Weight |
38kg |
12 |
Size |
550 mm*500mm*580mm |
13 |
Power supply |
AC220V, 50Hz/60Hz |
14 |
Working environment |
Room temperature to 45°C, humidity<85% |

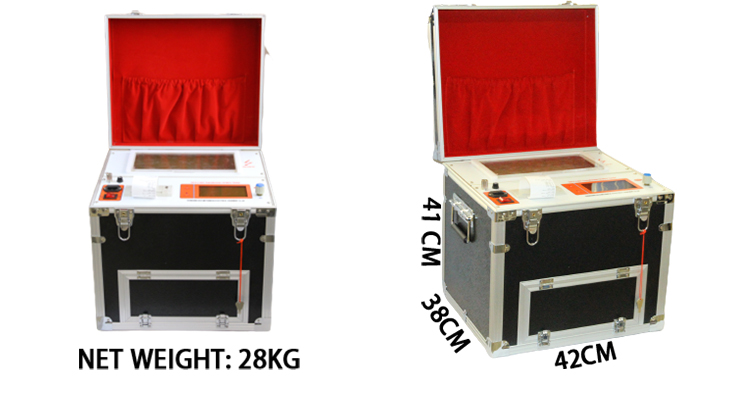

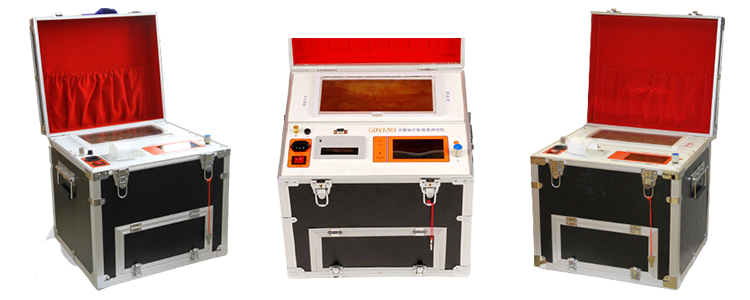

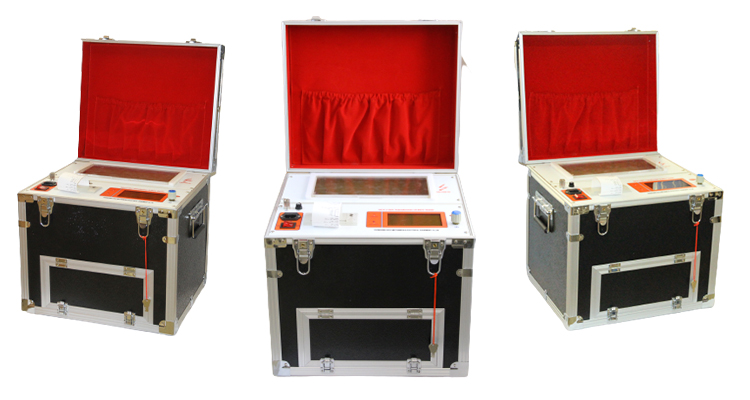

AC 0-80/100KV Epoxy Transformer Oil Breakdown Voltage Test Set GDYJ-502A Product display
