| Warranty: | 1 year |
|---|---|
| Certification: | ISO9001, SGS Test Report |
| Brand Name: | Henghua |
| Type: | Air Heater |
| Condition: | New |
| Power(W): | Customized |
| Voltage: | 220V/380V/Customized |
| Weight: | Customized |
| Dimension(L*W*H): | Customized |
| Place of Origin: | China (Mainland) |
| Power Source: | Electric |
| Resistance: | Customized |
| Temperature: | 0-1500 degree |
| Usage: | Furnace heating element |
Quick Details
Specifications
Product Details
the silicon carbide (SIC) heating element is a kind of non-metal high temperature electric heating element. It is made of selected super quality green silicon carbide as main material, which is made into blank, solid under high temperature and re-crystallized. Compared with metal electric heating element, this element is characterized by high-applied temperature, anti-oxidization, anti-corrosion, long service life, little deformation, easy installation and maintenance. It is widely used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramic, powder metallurgy, glass, metallurgy and machinery etc.
the silicon carbide (SIC) heating element is a kind of non-metal high temperature electric heating element. It is made of selected super quality green silicon carbide as main material, which is made into blank, solid under high temperature and re-crystallized. Compared with metal electric heating element, this element is characterized by high-applied temperature, anti-oxidization, anti-corrosion, long service life, little deformation, easy installation and maintenance. It is widely used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramic, powder metallurgy, glass, metallurgy and machinery etc.

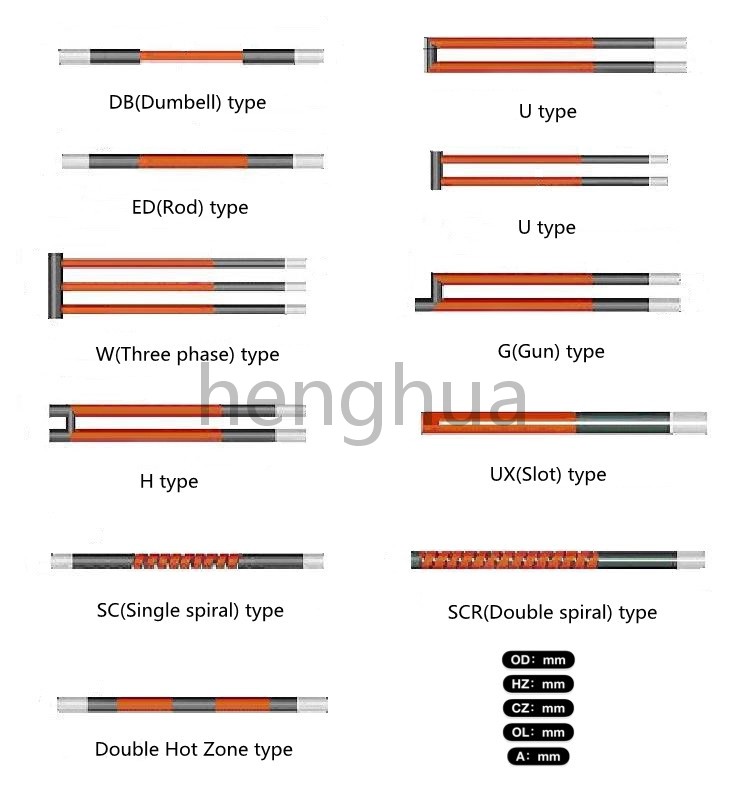

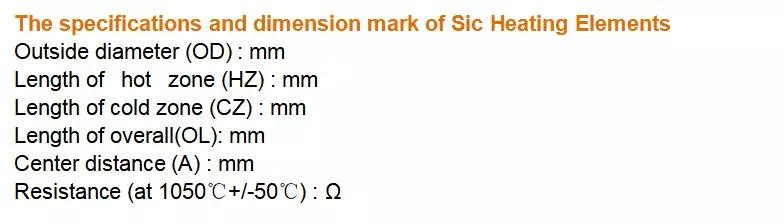

Standard Sizes
Outer Diameter (mm) |
Hot zone ( mm) |
Cold zone (mm) |
Overall length(mm) |
Range of resistance |
8 |
100-300 |
60-200 |
240-700 |
2.1-8.6 |
12 |
100-400 |
100-350 |
300-1100 |
0.8-5.8 |
14 |
100-500 |
150-350 |
400-1200 |
0.7-5.6 |
16 |
200-600 |
200-350 |
600-1300 |
0.7-4.4 |
18 |
200-800 |
200-400 |
600-1600 |
0.7-5.8 |
20 |
200-800 |
250-600 |
700-2000 |
0.6-6.0 |
25 |
200-1200 |
250-700 |
700-2600 |
0.4-5.0 |
30 |
300-2000 |
250-800 |
800-3600 |
0.4-4.0 |
35 |
400-2000 |
250-800 |
900-3600 |
0.5-3.6 |
40 |
500-2700 |
250-800 |
1000-4300 |
0.5-3.4 |
45 |
500-3000 |
250-750 |
1000-4500 |
0.3-3.0 |
54 |
600-2500 |
300-750 |
1200-4000 |
0.3-3.0 |
Recommended surface load
Furnace temperature |
1100 |
1200 |
1300 |
1350 |
1400 |
1450 |
Surface load of hot zone (w/cm2) |
<17 |
<13 |
<9 |
<7 |
<5 |
<4 |
