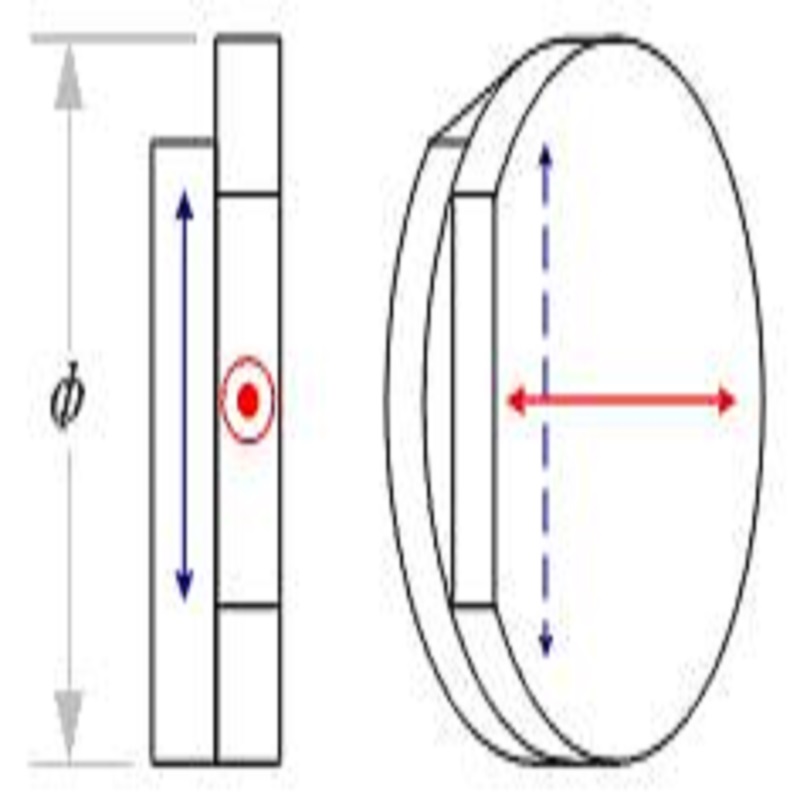

Achromatic Waveplate


Achromatic waveplate is made from two different substrate materials such as crystal quartz and magnesium fluoride. for the single material,waveplate's working wavelength is very limited because of the dispersion of the material. but Achromatic Waveplate uses two different kinds of materials,with the different dispersion, such waveplate is not sensitive to the wavelength change.



Specifications:


 Material:               Quartz and MgF2


 Dimension Tolerance:    +0.0, -0.1mm


 Surface Quality:              40 / 20


Parallelism:                <1 arc Sec


Wavefront Distortion:      < λ/8@633nm


Retardation Tolerance:   < λ/100


 Clear Aperture:              >90%


Damage Threshold:         >10MW/cm2;


 AR Coating:         Ravg<1.5%@wavelength


Structure: Optical contact or Air contacted


Standard wavelength:

460-650nm, 550-750nm, 650-1000nm, 900-2100nm.





Dual Wavelength Waveplate

Dual wavelength waveplate is a special type of multiple waveplate that provides a specific retardance at two different wavelengths, it's particularly useful when used in conjunction with other polarization sensitive components to separate coaxial laser beams of different wavelength. It is widely used to improve conversion efficiency in solid double frequency laser device.

Specifications:

 Material:                     Quartz


 Wavelength Range:       3502100 nm,


 Dimension Tolerance:   +0.0, -0.1mm


 Surface Quality:              20 / 10


Parallelism:                <1 arc Sec


Wavefront Distortion:      < λ/8@633nm


Retardation Tolerance:   < λ/100


 Clear Aperture:              >90%


 Damage Threshold:       >1GW/cm2


 AR Coating:            R<0.2%@wavelength


 Mount:          Black Anodized Aluminium


Standard wavelength:


Λ@1064nm+λ/2@532nm, λ/2@1064nm+λ@532nm;


Λ@532nm+λ/2@355nm, λ/2@532nm+λ@355nm


Polarization Rotator

Due to the rotation activity of natural quartz crystal, it also can be used as polarization rotators so that the plane of input linearly polarized beam will be rotated at special angle which is determined by the thickness of quartz crystal.

Made of quartz, 200-2500nm

up to 50.8mm diameter

Custom rotation angle available

RoHS Compliant

Specifications:

 Material:              Crystal Quartz 200-2500nm
 Dimension Tolerance:   +/-0.2mm
 Surface Quality:              20 / 10
Parallelism:                   <10 arc Sec
Wavefront Distortion:      < λ/4@632.8nm
Rotation accuracy:          < 5 arc Min
 Rotation:           clockwise or counter-clockwise
 Damage Threshold:       >1GW/cm2
 AR Coating:                    R<0.25%@wavelength
