| Brand Name: | Photonchina |
|---|---|
| Size: | D5-50mm |
| Type: | polarizer |
| Material: | BBO, Calcite, Quartz, YVO4 |
| Color: | transparent |
| Model Number: | Glan Polarizer |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

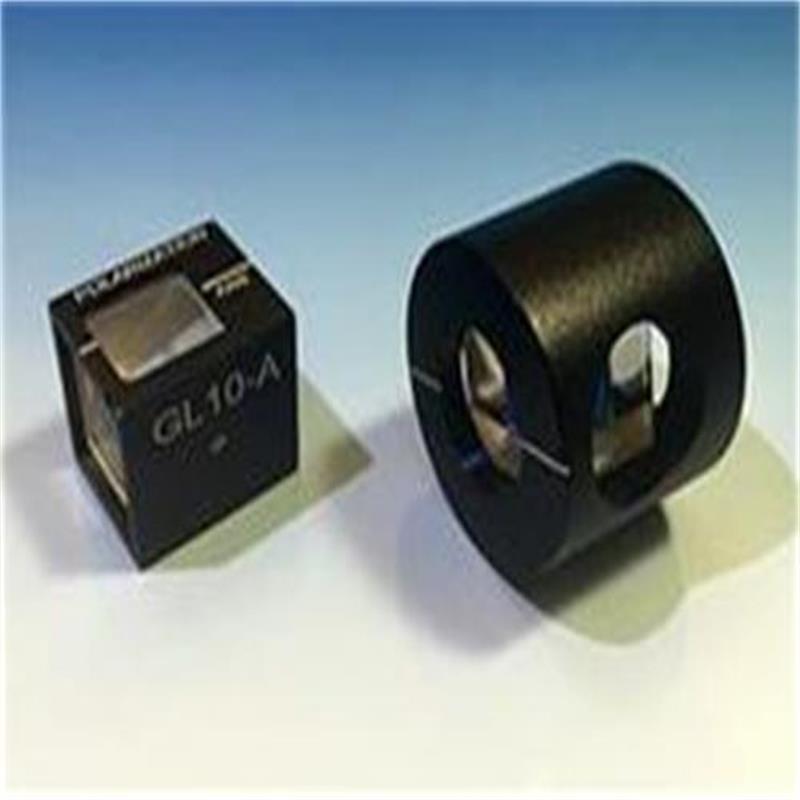

Glan Laser polarizer is made of two same birefringent material prisms that are assembled with an air space. Photonchina's polarizer is a modification of the Glan Taylor type and is designed to have less reflection loss at the prism junction. the polarizer with two escape windows allow the rejected beam to escape out of the polarizer, which makes it more desirable for high energy lasers. the surface quality of these faces is relatively poor as compared to that of entrance and exit faces. No scratch dig surface quality specifications are assigned to these faces.
Photonchina Feature:
Air-spaced
Close to Brewster's Angle Cutting
High Polarization Purity
Short Length
Wide Wavelength Range
Suitable for medium power application
Glan Taylor polarizer is made of two birefringent prisms that are assembled with an air space.
the polarizer with no side escape windows is suitable for low to medium power application where the side rejected beams are not required.
Photonchina Feature:
Air-spaced
Close to Brewster's Angle Cutting
High Polarization Purity
Short Length
Wide Wavelength Range
Suitable for low to medium power application
1. Calcite Glan Taylor Polarizer
C.A. Fa(mm)O.D. Fd(mm)L 0.1(mm)
6.0 15.0 15.0
8.0 25.4 17.0
10.0 25.4 19.0
15.0 30.0 23.0
20.0 38.0 29.0
2. A-BBO Glan Taylor Polarizer
C.A. Fa(mm)O.D. Fd(mm)L0.1(mm)
6.0 15.0 15.0
8.0 25.4 17.0
10.0 25.4 19.0
15.0 30.0 23.0
20.0 38.0 29.0
3. YVO4 Glan Taylor Polarizer
C.A. Fa(mm)O.D. Fd(mm)L 0.1(mm)
6.0 15.0 12.0
8.0 25.4 15.0
10.0 25.4 17.0
15.0 30.0 20.0
20.0 38.0 25.0
Photonchina Feature:
Air-spaced
Close to Brewster's Angle Cutting
High Polarization Purity
Short Length
Wide Wavelength Range
Suitable for medium power application
Glan Taylor polarizer is made of two birefringent prisms that are assembled with an air space.
the polarizer with no side escape windows is suitable for low to medium power application where the side rejected beams are not required.
Photonchina Feature:
Air-spaced
Close to Brewster's Angle Cutting
High Polarization Purity
Short Length
Wide Wavelength Range
Suitable for low to medium power application
1. Calcite Glan Taylor Polarizer
C.A. Fa(mm)O.D. Fd(mm)L 0.1(mm)
6.0 15.0 15.0
8.0 25.4 17.0
10.0 25.4 19.0
15.0 30.0 23.0
20.0 38.0 29.0
2. A-BBO Glan Taylor Polarizer
C.A. Fa(mm)O.D. Fd(mm)L0.1(mm)
6.0 15.0 15.0
8.0 25.4 17.0
10.0 25.4 19.0
15.0 30.0 23.0
20.0 38.0 29.0
3. YVO4 Glan Taylor Polarizer
C.A. Fa(mm)O.D. Fd(mm)L 0.1(mm)
6.0 15.0 12.0
8.0 25.4 15.0
10.0 25.4 17.0
15.0 30.0 20.0
20.0 38.0 25.0
