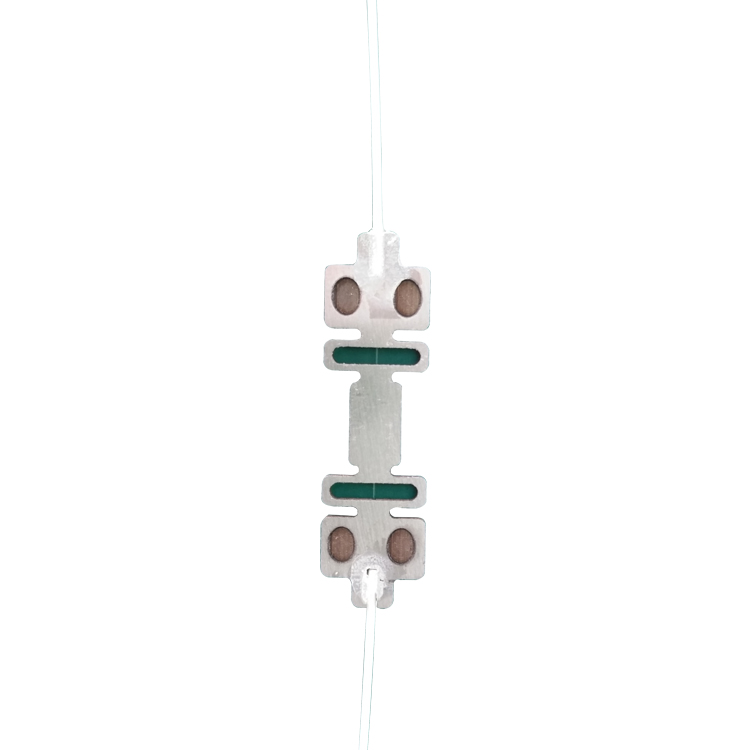

Product Name: fiber grating patch type strain sensor

Product model: XH-S02

Application scope:

Strain monitoring of large steel structure

Strain monitoring of ships, tunnels and rail

Surface strain monitoring of bridge dam

Technical parameter

Center wavelength of grating         1528nm ~ 1568nm

Grating reflectivity                          >85%

Standard range                               + 1500

Resolving power                             <1 epsilon

Measurement accuracy                    0.3% F.S.

Packaging form                               Stainless steel

Installation method                         Spot welding or bonding

Fiber optic joint                               FC / APC

Shape size (long x wide x high)        36 x 10 x 1mm
