Quick Details

After-sales Service Provided: Overseas service center available
Condition: New
Brand Name: jinlaiyuan
Weight: 2800kg
color: yellow
Model Number: JLY-NG-15
Place of Origin: China (Mainland)

Specifications

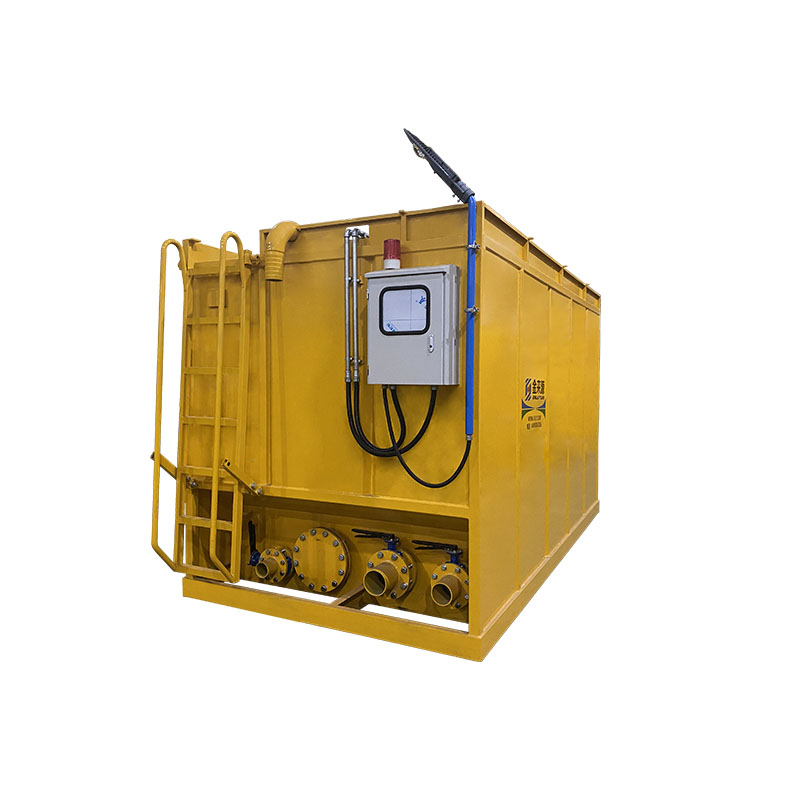

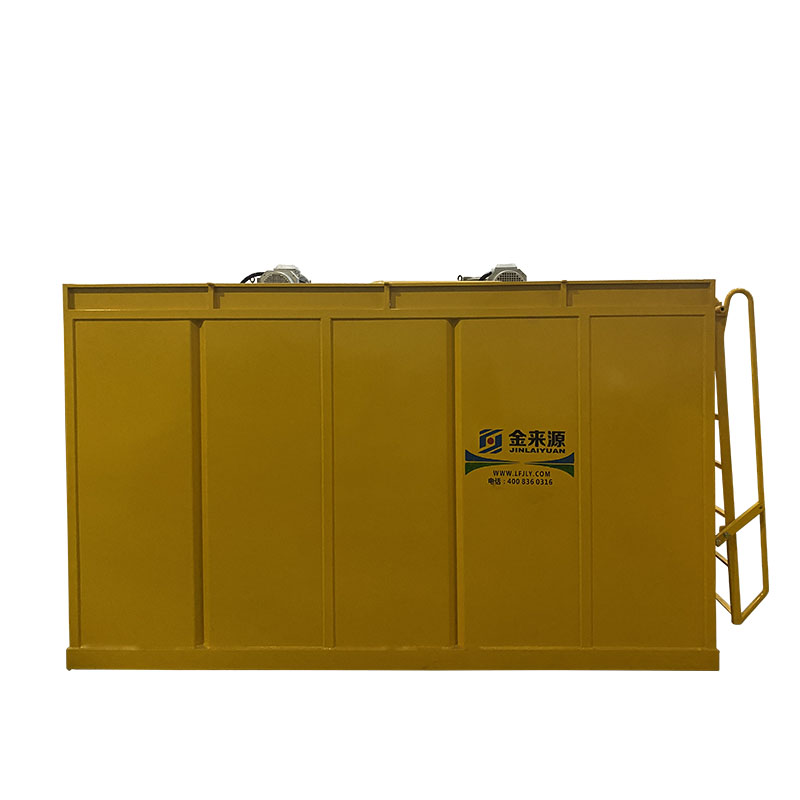

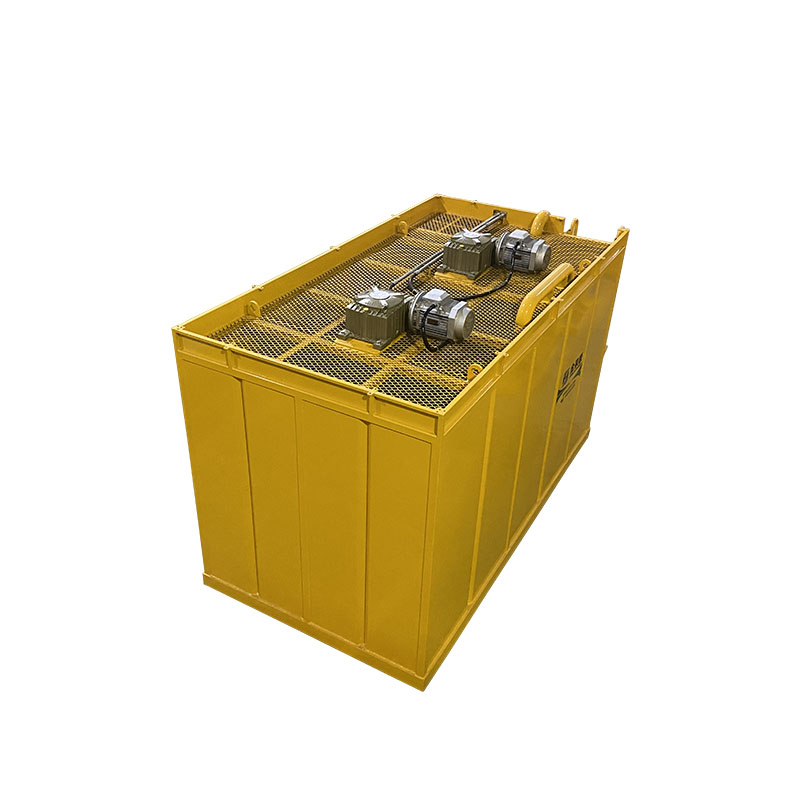

China manufactory foldable design drilling rig mud tanks for nonexcavationChina manufactory foldable design drilling rig mud tanks for nonexcavationChina manufactory foldable design drilling rig mud tanks for nonexcavation

1.Brief Introduction:



JLY mud recycling System is perfectly fit for trenchless directional crossing,mud-water balance Pipe jacking projects,rotary digging cast-in-place pile engineering and Mini-tunneling industries.




2.Techincal parameters:



Serial No.
Name
Parameter
Note
1
Gear Reducer
5.5kw x 2
Roation Rate 60r/Min.; Double Layer Blade; with Centralizer
2
Electrical Control
Customize
Protection when overloading, Votage high or Low, Less phase, Alarm when most high liquid level.LED Light
3
Top Board
Steel Grating
5mm
4
Side Board
Corrugated Sheet
6mm
5
Bottom
120 Structional Section+6mm Bottom Sheet
6
Volume
15m3
7
Water inlet
4"
Inverted Teeth of Elbow
8
Jet Suction Inlet
5"
Inverted Teeth of Butterfly Valve
9
Jet Return Outlet
4"
Inverted Teeth
10
Mud Pump Interface
6"
Inverted Teeth Butterfly Valve(Need confirm with customer)
11
Sand Cleaning Gate
10"
Blind Plate
12
Sewage outlet
4"
Inverted Teeth Butterfly Valve
13
Protective Fence
Foldable Design
Match
14
Ladder
Oblique Ladder
15
Night Lighting System
LED
16
Overall Size
4100X2000X2450mm



3.Performance features:

Features:multi-pass Cleaning capabilities to maximise shaker and hydrocyclone Performance,smart-panel technology with built-in Wi-Fi networking for remote Operation, and the multi-layer screening structure,compared to other systems on The market.
