| After-sales Service Provided: | Overseas service center available |
|---|---|
| Condition: | New |
| Brand Name: | jinlaiyuan |
| Weight: | 3500kg |
| color: | yellow |
| Model Number: | JLY-NG-20 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
1.Brief Introduction:
Features:multi-pass Cleaning capabilities to maximise shaker and hydrocyclone Performance,smart-panel technology with built-in Wi-Fi networking for remote Operation, and the multi-layer screening structure,compared to other systems on The market.
2.Techincal parameters:

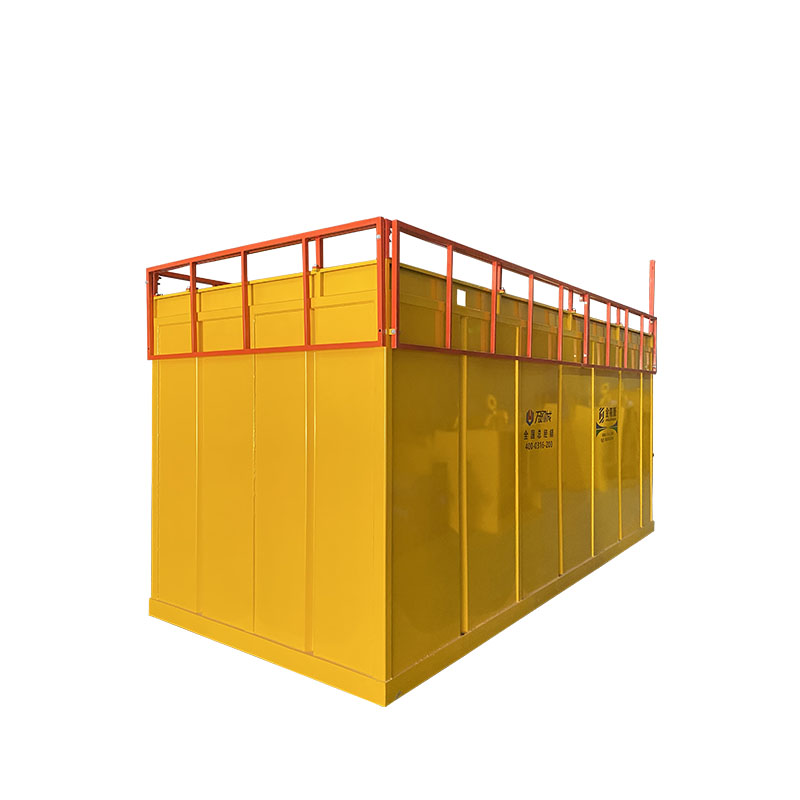

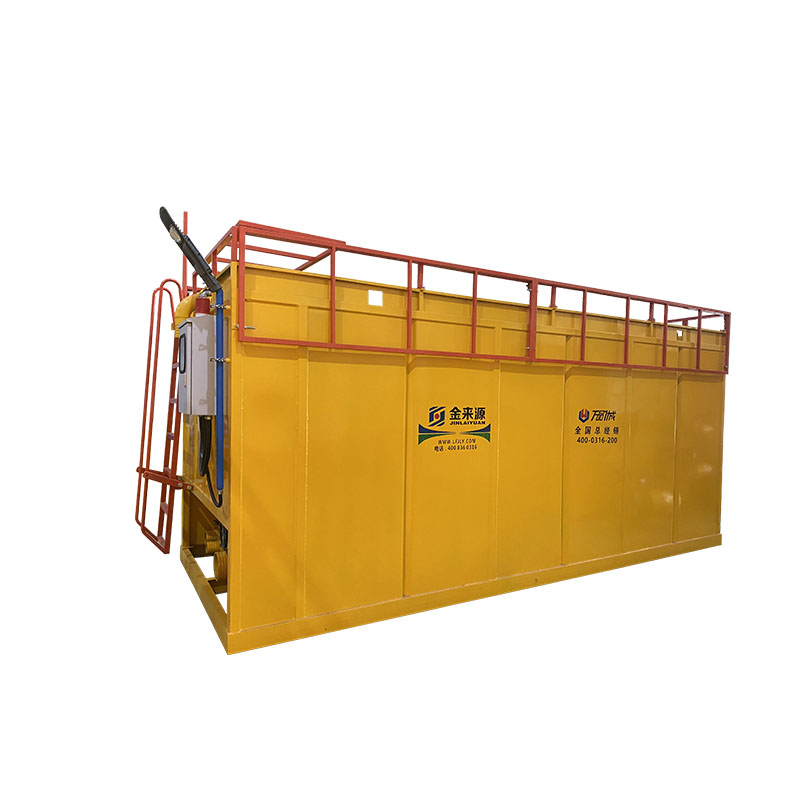

Good price steel grating top board mud tank for well drilling system
| Serial No. | Name | Parameter | Note |
| 1 | Gear Reducer | 7.5kw x 2 | Roation Rate 60r/Min.;Double Layer Blade;with Centralizer |
| 2 | Electrical Control | Customize | Protection when overloading, Votage high or Low, Less phase, Alarm when most high liquid level.LED Light |
| 3 | Top Board | Steel Grating | 5mm |
| 4 | Side Board | Corrugated Sheet | 6mm |
| 5 | Bottom | 120 Structional Section+6mm Bottom Sheet | / |
| 6 | Volume | 20m3 | / |
| 7 | Water Inlet | 4" | Inverted Teeth of Elbow |
| 8 | Jet Suction Inlet | 6" | Inverted Teeth of Butterfly Valve |
| 9 | Jet Return Outlet | 5" | Inverted Teeth |
| 10 | Mud Pump Interface | 8-6" | Inverted Teeth Butterfly Valve(Need confirm with customer) |
| 11 | Sand Cleaning Gate | 10" | Blind Plate |
| 12 | Sewage outlet | 4" | Inverted Teeth Butterfly Valve |
| 13 | Protective Fence | Foldable Design | Match |
| 14 | Ladder | Oblique Ladder | / |
| 15 | Night Lighting System | LED | / |
| 16 | Net.Weight | 3500kg | / |
| 17 | Overall Size | 5000X2150X2450mm | / |
3.Performance features:
Features:multi-pass Cleaning capabilities to maximise shaker and hydrocyclone Performance,smart-panel technology with built-in Wi-Fi networking for remote Operation, and the multi-layer screening structure,compared to other systems on The market.
