1.Brief Introduction:Mud tanks play an important role in a solids control system. It is the base of solids control equipment, and also the carrier of drilling fluids.As A mud carrier, mud tank is an indispensable part of mud circulation system and It can complete mixing, solid-liquid separating, and other process, mud tank Carries the mud circulating between well head and mud pump.Mud Tanks are able to mix, treat, and store drilling fluids, which makes them Extremely important to the oil and gas industries. They are also used in Applications to remove unwanted solids and sediments from the drilling and Boring systems.





2.Techincal parameters:

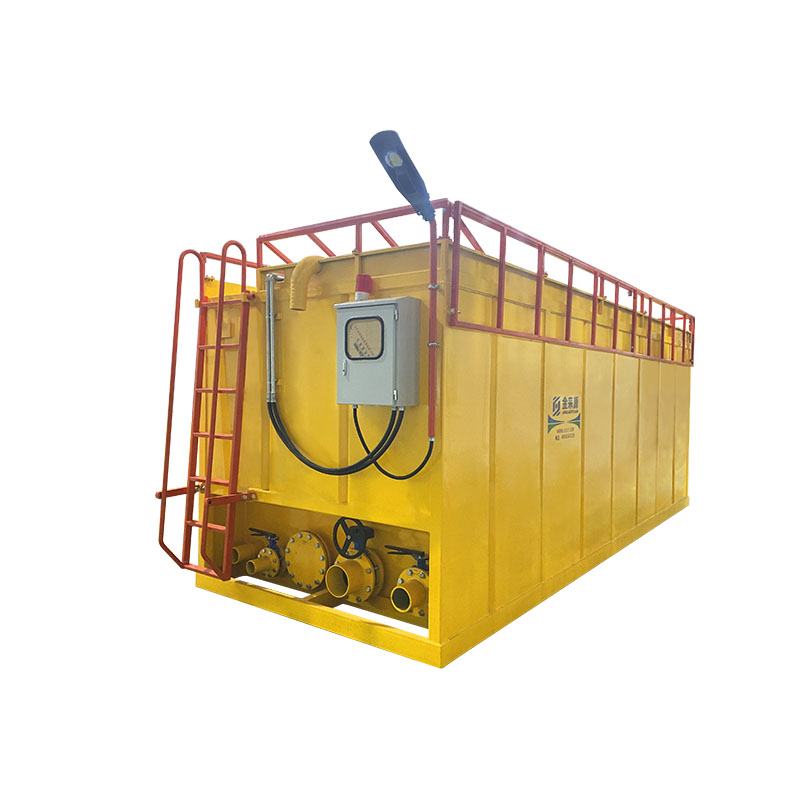

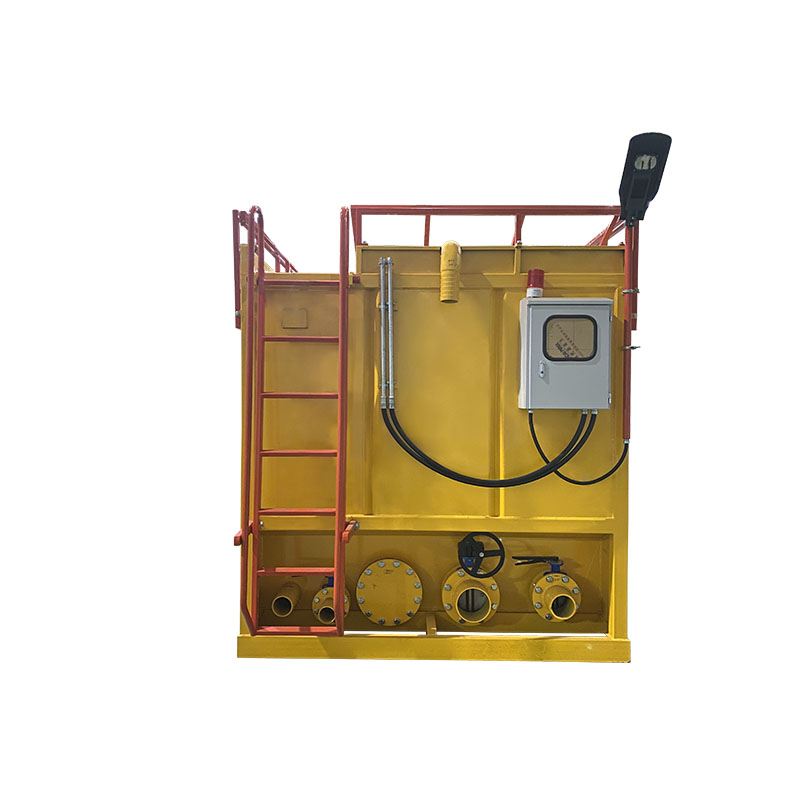

Widely Used Portable Well Drilling Rigs for sale drilling mud tanks

Serial No.	Name	Parameter	Note
1	Gear Reducer	7.5kw x 2	Roation Rate 60r/Min.;Double Layer Blade;with Centralizer
2	Electrical Control	Customize	Protection when overloading, Votage high or Low, Less phase, Alarm when most high liquid level.LED Light
3	Top Board	Steel Grating	5mm
4	Side Board	Corrugated Sheet	6mm
5	Bottom	120 Structional Section+6mm Bottom Sheet	/
6	Volume	25m3	/
7	Water Inlet	4"	Inverted Teeth of Elbow
8	Jet Suction Inlet	6"	Inverted Teeth of Butterfly Valve
9	Jet Return Outlet	5"	Inverted Teeth
10	Mud Pump Interface	8-6"	Inverted Teeth Butterfly Valve(Need confirm with customer)
11	Sand Cleaning Gate	10"	Blind Plate
12	Sewage outlet	4"	Inverted Teeth Butterfly Valve
13	Protective Fence	Foldable Design	Match
14	Ladder	Oblique Ladder (Selective)	/
15	Night Lighting System	LED	/
16	Net.Weight	4000kg	/
17	Overall Size	3250X2000X2150mm	/



3.Performance features:

Features:

Mud tank combined 2 reducers of 7.5kw

Front-mounted grip strut step ladder for top access

Regularly tested by technicians to meet stringent industry standards

Advantages:

1.     Brand horizontal reducer,large torque,saving place

2.     Automatic liquid level sensor

3.     Integrated design of slurry inlet and outlet

4.     Mud mixer-double-blade design for better mxing effect
