1.Brief Introduction:

Mud tanks play an important role in a solids control system. It is the base of solids control equipment, and also the carrier of drilling fluids.As A mud carrier, mud tank is an indispensable part of mud circulation system and It can complete mixing, solid-liquid separating, and other process, mud tank Carries the mud circulating between well head and mud pump.Mud Tanks are able to mix, treat, and store drilling fluids, which makes them Extremely important to the oil and gas industries. They are also used in Applications to remove unwanted solids and sediments from the drilling and Boring systems.





2.Techincal parameters:

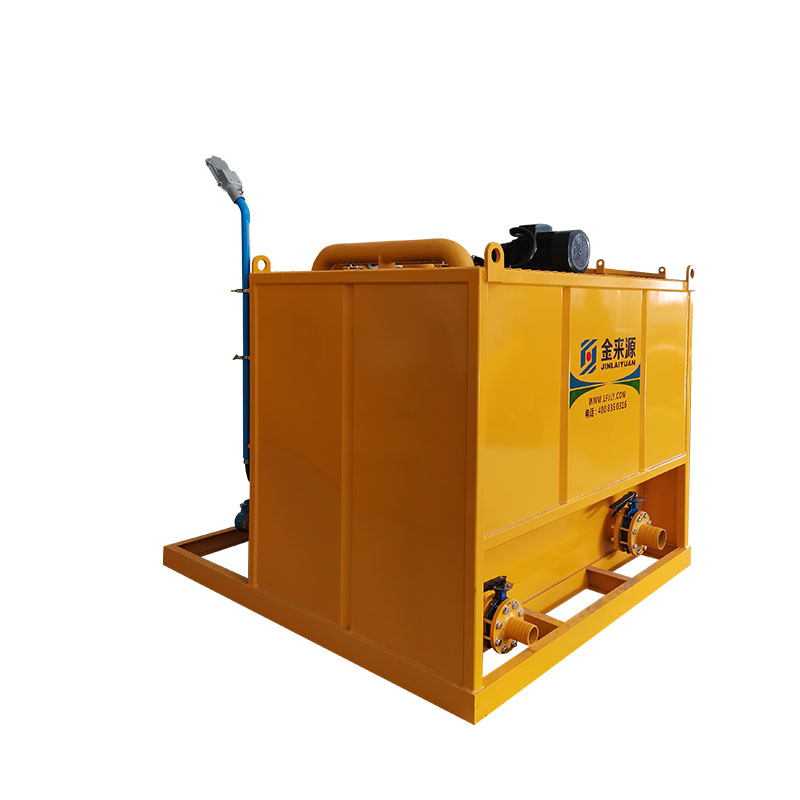

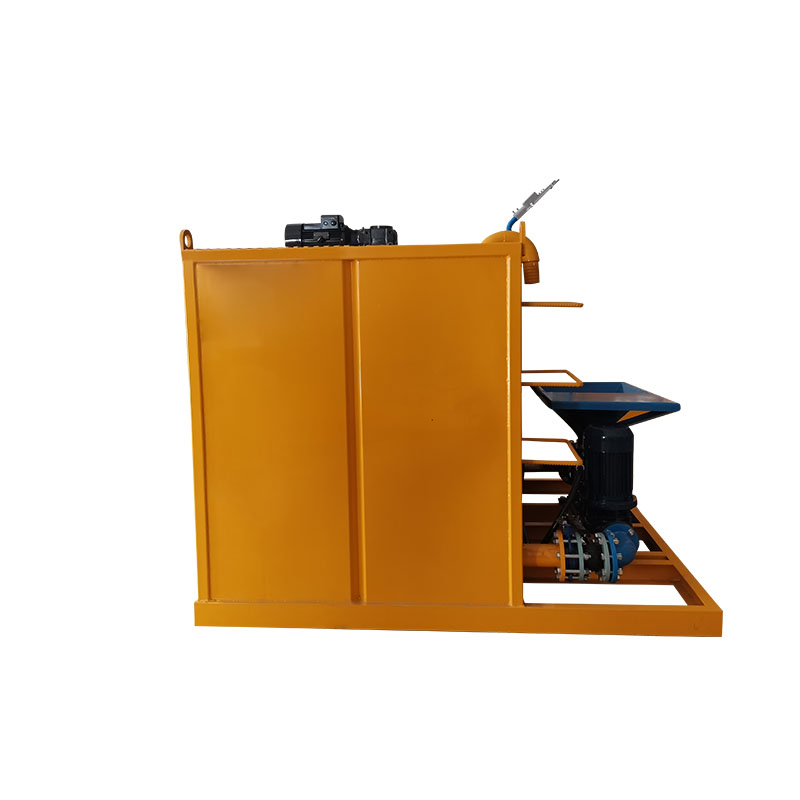

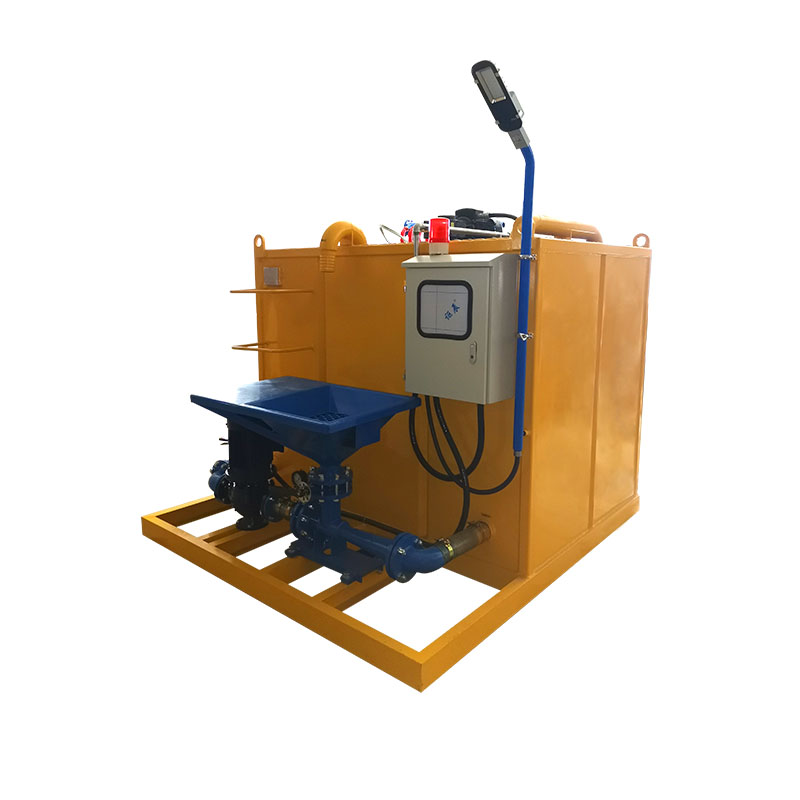

High quality mud jet concrete mixer unit and spare parts for well drilling tool

Serial No.	Name	Parameter	Note
1	Jet Pump	380v  4kw	Pipeline Sewage Pump(Double Alloy Seal)
2	Jet Capacity	25m3/Hour	/
3	Batching Speed	≥30kg	/
4	Working Pressure	0.25MPa±20%	/
5	Slurry Mixing	Negiative Pressure by High speed Jet	/
6	Volume	3m3	/
7	Protective Fence	No.	/
8	Ton Package Hopper	No.	/
9	Agitator	2.2kw	Roation Rate 60r/Min.;Double Layer Blade;with Centralizer
10	Electrical Control	Outdoor	Protection when overloading, Votage high or Low, Less phase.
11	Sand Cleaning Gate	10"	Removable Blind Plate
12	Sewage Outlet	3"	Inverted Teeth Butterfly Valve
13	Mud Pump Interface	4"	Inverted Teeth Butterfly Valve(May change according customer's request)
14	Total Power	6.2kw	/
15	Net.Weight	950kg	/
16	Overall Size	2050X1850X1720mm	/



3.Performance features:

Features:

Mud tank combined 2 reducers of 7.5kw

Front-mounted grip strut step ladder for top access

Regularly tested by technicians to meet stringent industry standards

Advantages:

1.     Brand horizontal reducer,large torque,saving place

2.     Automatic liquid level sensor

3.     Integrated design of slurry inlet and outlet

4.     Mud mixer-double-blade design for better mxing effect
