1.Brief Introduction:



Mud tanks play an important role in a solids control system. It is the base of solids control equipment, and also the carrier of drilling fluids.As A mud carrier, mud tank is an indispensable part of mud circulation system and It can complete mixing, solid-liquid separating, and other process, mud tank Carries the mud circulating between well head and mud pump.Mud Tanks are able to mix, treat, and store drilling fluids, which makes them Extremely important to the oil and gas industries. They are also used in Applications to remove unwanted solids and sediments from the drilling and Boring systems.



2.Techincal parameters:

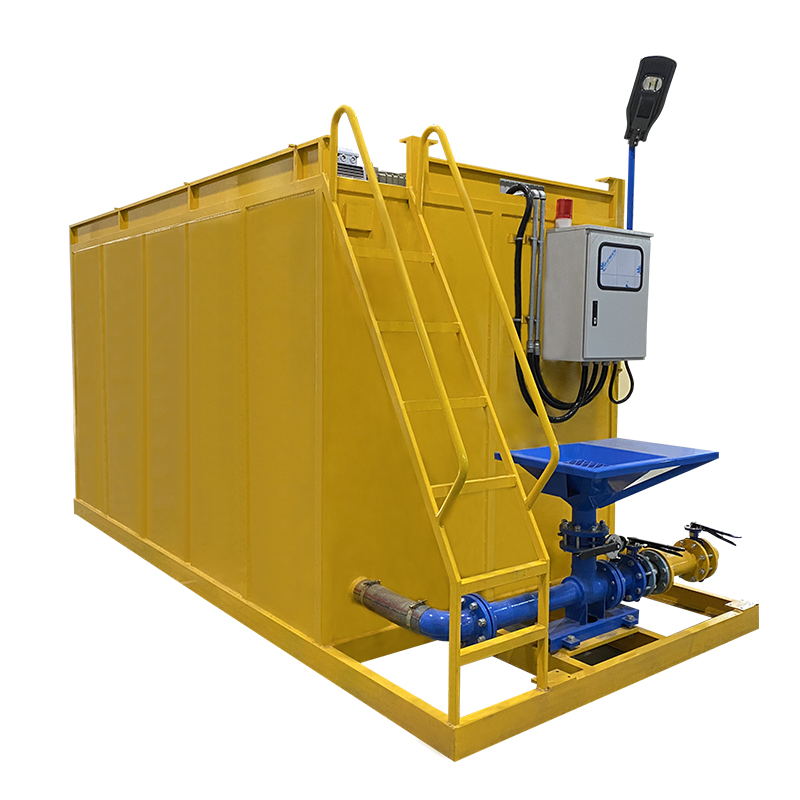

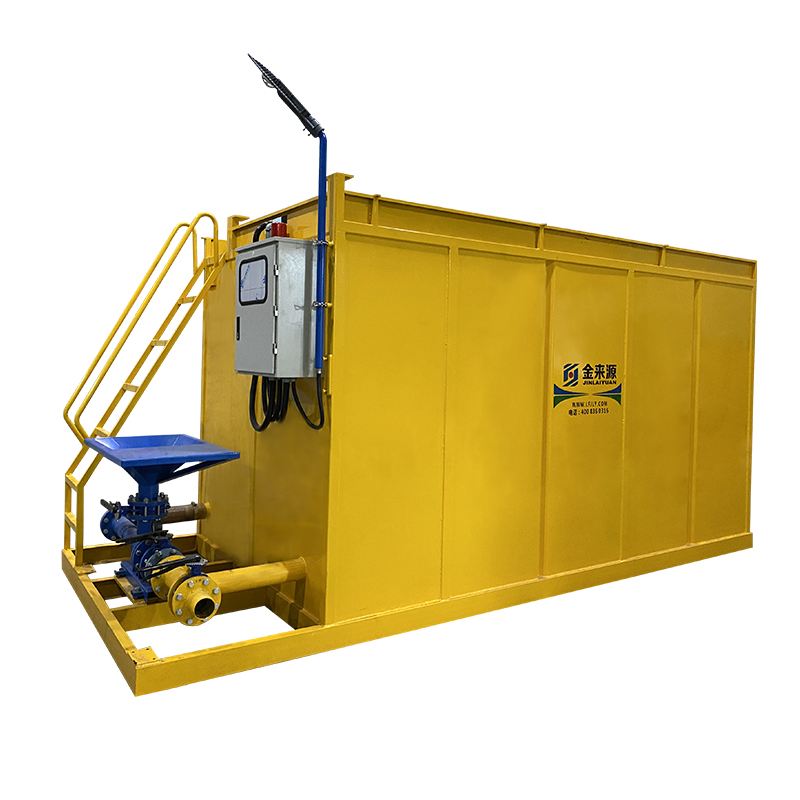

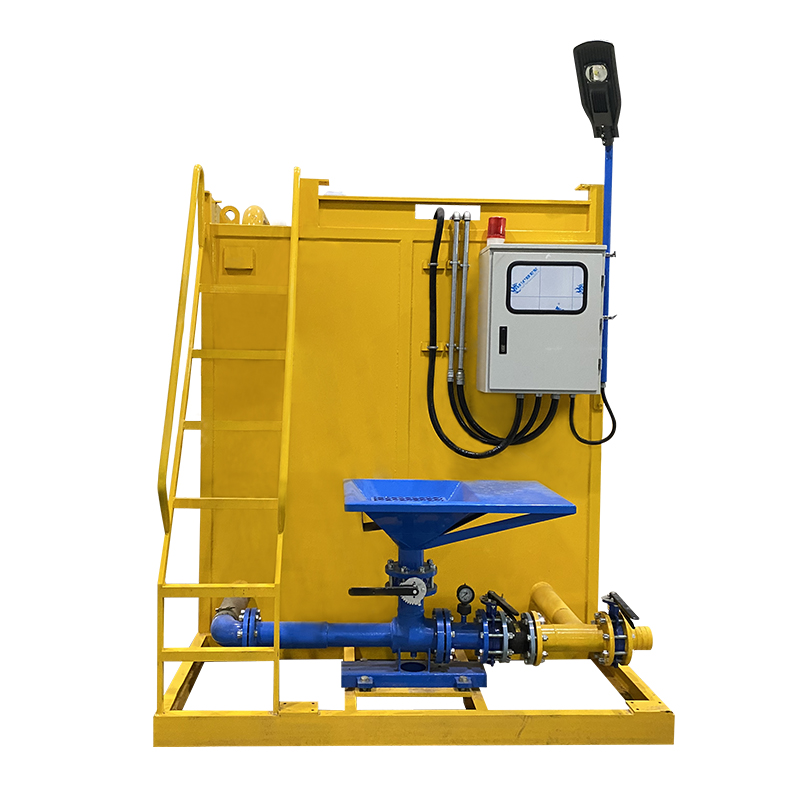

Solid Control System/Mud Mixing/Mud Tank / Agitator

Serial No.	Name	Parameter	Note
1	Gear Reducer	5.5kw x 2 group	Roation Rate 60r/Min.;Double Layer Blade;with Centralizer
2	Jet System	65m3/Hour	Ton Package Hopper(Selective Breeding)
3	Jet Pump	18.5kw	Full-alloy pump
4	Electric Control	Outdoor	Protection when overloading, Votage high or Low, Less phase.
5	Top Board	Steel Grating Board	5mm
6	Side Borard	Corrugated Sheet	6mm
7	Bottom Board	120 Structional sheet +6mm Bottom board	/
8	Protective Fence	Foldable	Match
9	Ton Package Hopper	/	Selective +12000
10	Volume	15m3	/
11	Water hole	4"	Inverted teeth of Elbow
12	Mud Pump Interface	5"	Inverted Teeth of Butterfly Valve(May adjust it according customer's  request
13	Sand Cleaning Gate	10"	Disassemble Blind Plate
14	Sewage Hole	4"	Inverted Teeth Butterfly Valve
15	Net. Weight	3500kg	/
16	Overall Size	4700X2000X2450mm	/



3.Performance features:

Features:

Mud tank combined 2 reducers of 7.5kw

Front-mounted grip strut step ladder for top access

Regularly tested by technicians to meet stringent industry standards

Advantages:

1.     Brand horizontal reducer,large torque,saving place

2.     Automatic liquid level sensor

3.     Integrated design of slurry inlet and outlet

4.     Mud mixer-double-blade design for better mxing effect
