1.Brief Introduction:

Jet Mud Mixer is the equipment match with drilling solids Control equipments, uausally used to configurate and increase the Proportion of drilling fluid, change density, viscosity, water lose etc. It has a more excellent effect

2.Techincal parameters:

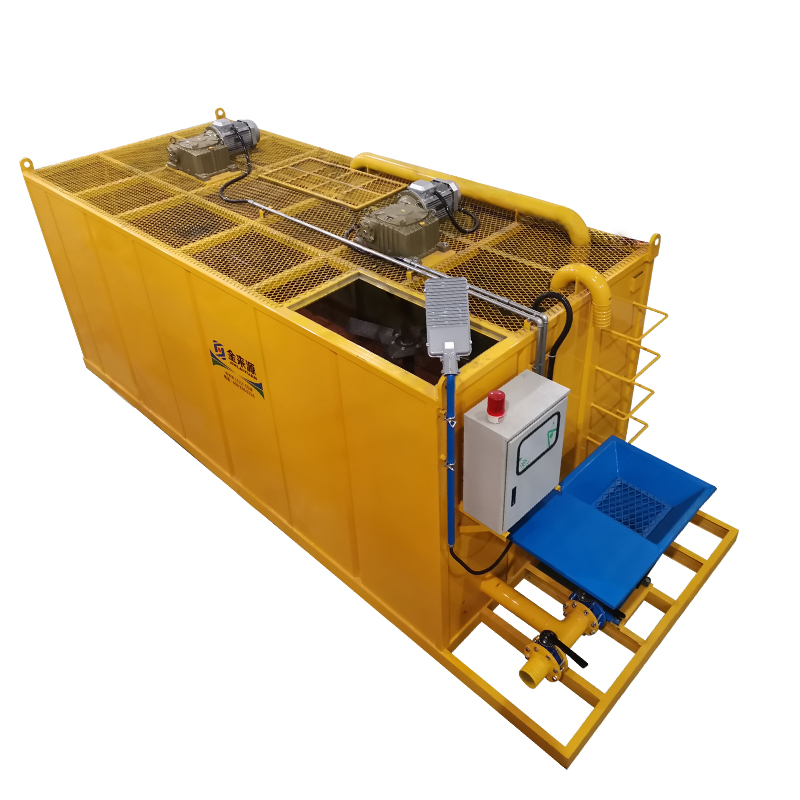

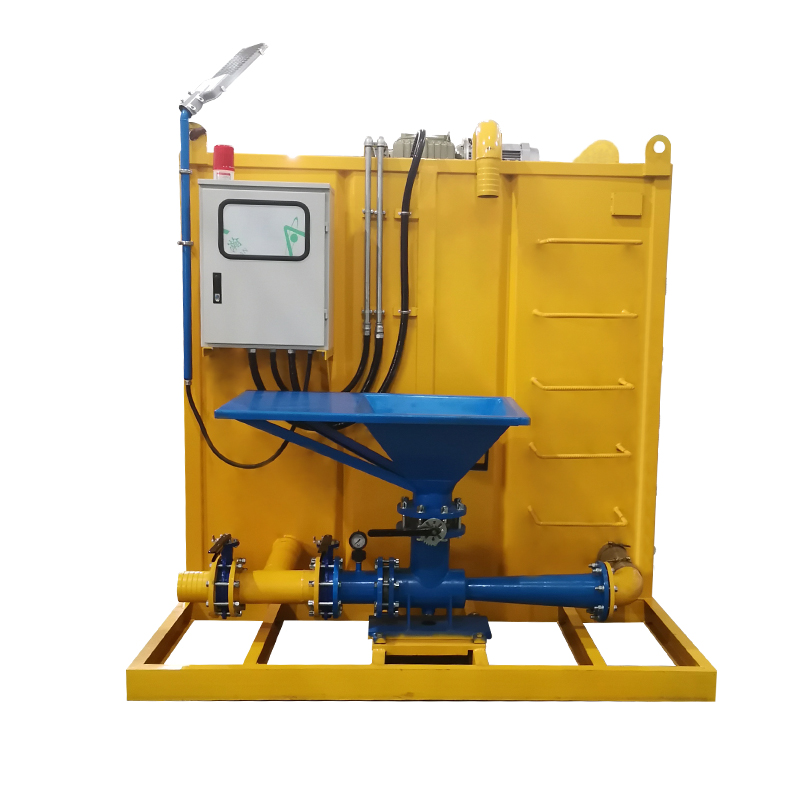

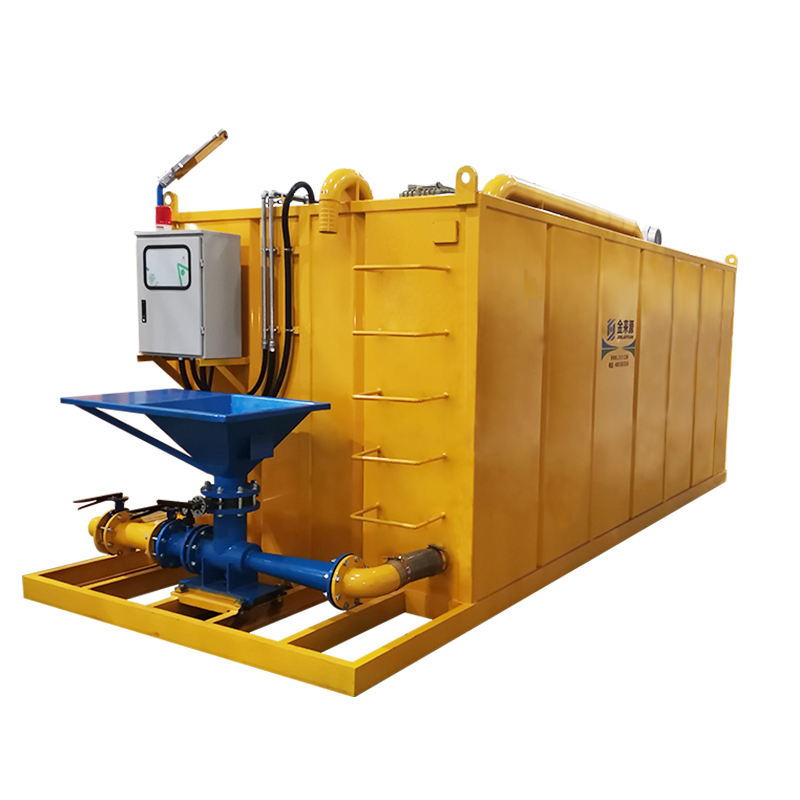

Hot selling good quality solid control system mud Jet mixer unit

Serial No.	Name	Parameter	Note
1	Gear Reducer	7.5kw x 2 group	Roation Rate 60r/Min.;Double Layer Blade;with Centralizer
2	Jet System	120m3/Hour	Ton Package Hopper(Selective Breeding)
3	Jet Pump	22kw	Full-alloy Built in Pump
4	Electric Control	Customize	Protection when overloading, Votage high or Low, Less phase.
5	Top Board	Steel Grating Board	5mm
6	Side Borard	Corrugated Sheet	6mm
7	Bottom Board	120 Structional sheet+6mm Bottom Sheet	/
8	Protective Fence	Foldable	Match
9	Ton Package Hopper	120m3	Selective +15000
10	Volume	20m3	/
11	Water hole	4"	Inverted teeth of Elbow
12	Mud Pump Interface	8-6"	Inverted Teeth of Butterfly Valve(May adjust it according customer's  request
13	Sand Cleaning Gate	10"	Disassemble Blind Plate
14	Sewage hole	4"	Inverted Teeth Butterfly Valve
15	Net.Weight	4350kg	/
16	Overall Size	5800X2200X2450mm	/



3.Performance features:

Features:

1. Mud Mixer is a single jet mixer combined with 45 KW sand pump and a jet mud hopper

2. the weighting hopper can be combined with a pump or be used independently with pump connected

Together by manifold valve.

3. Put the drilling fluids materials ( bentonites, barite powder ) and the corresponding chemical additives

( polymer ) into circulation tank for increasing the total.
