1.Brief Introduction:



Jet Mud Mixer is the equipment match with drilling solids Control equipments, uausally used to configurate and increase the Proportion of drilling fluid, change density, viscosity, water lose etc. It has a more excellent effect





2.Techincal parameters:

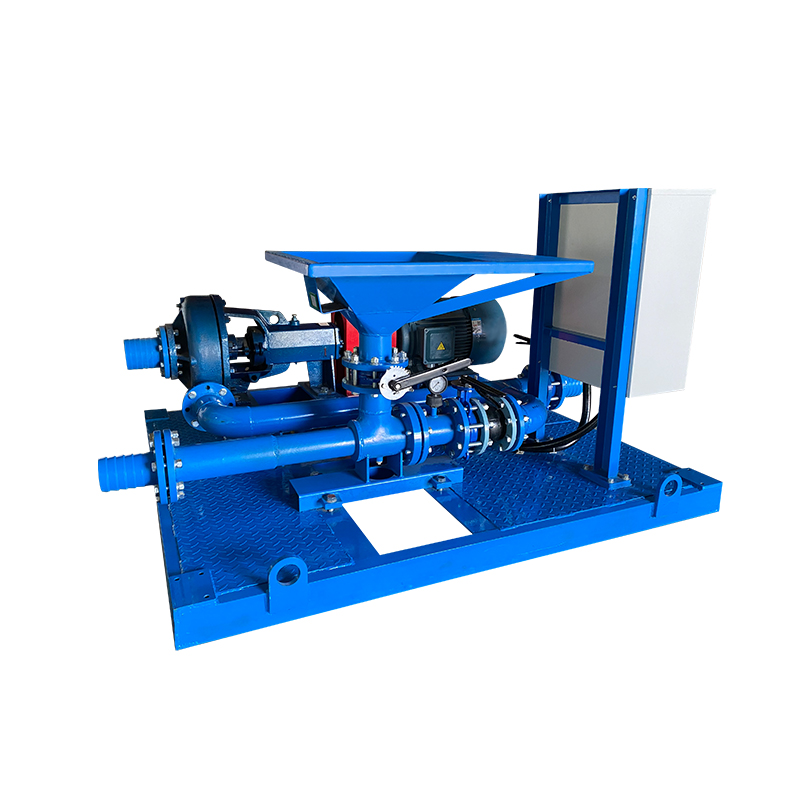

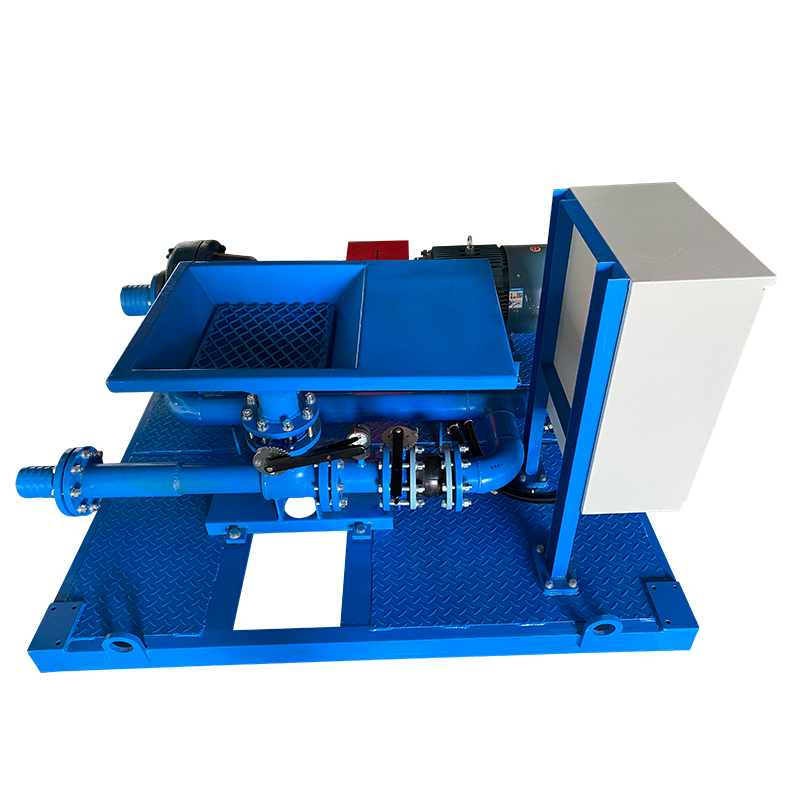

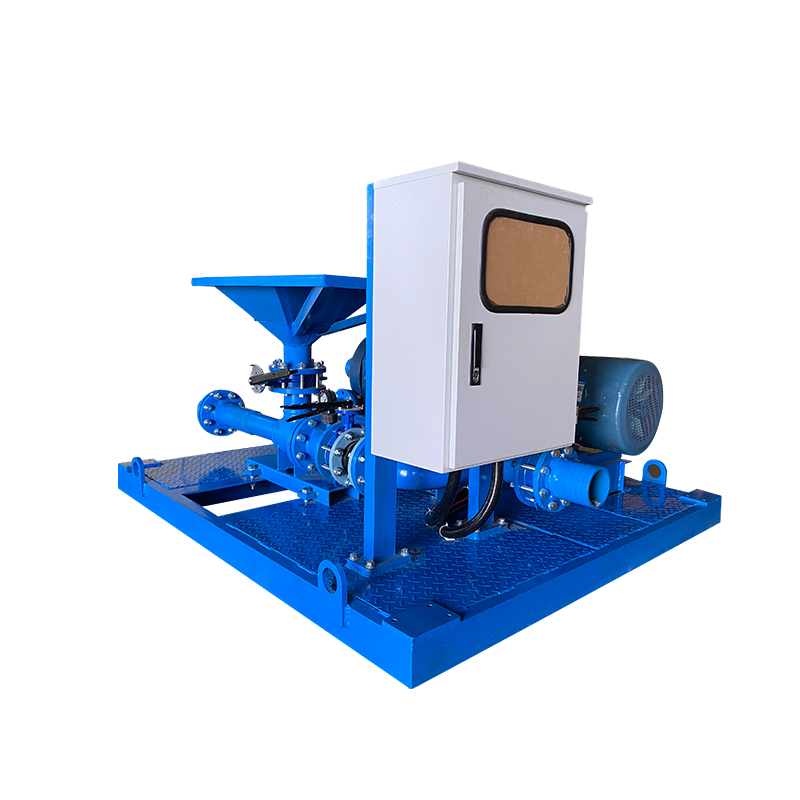

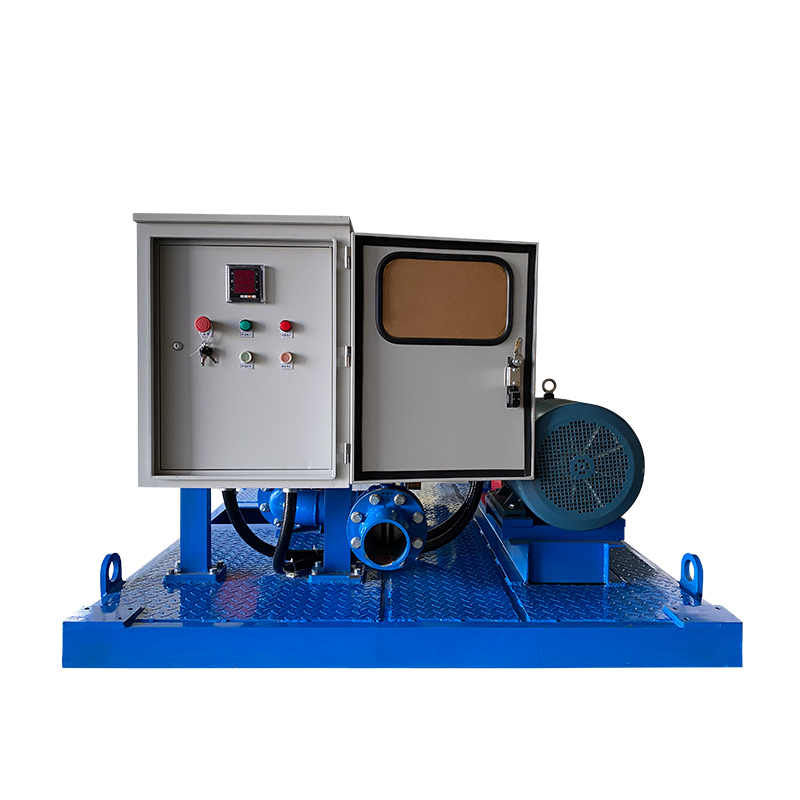

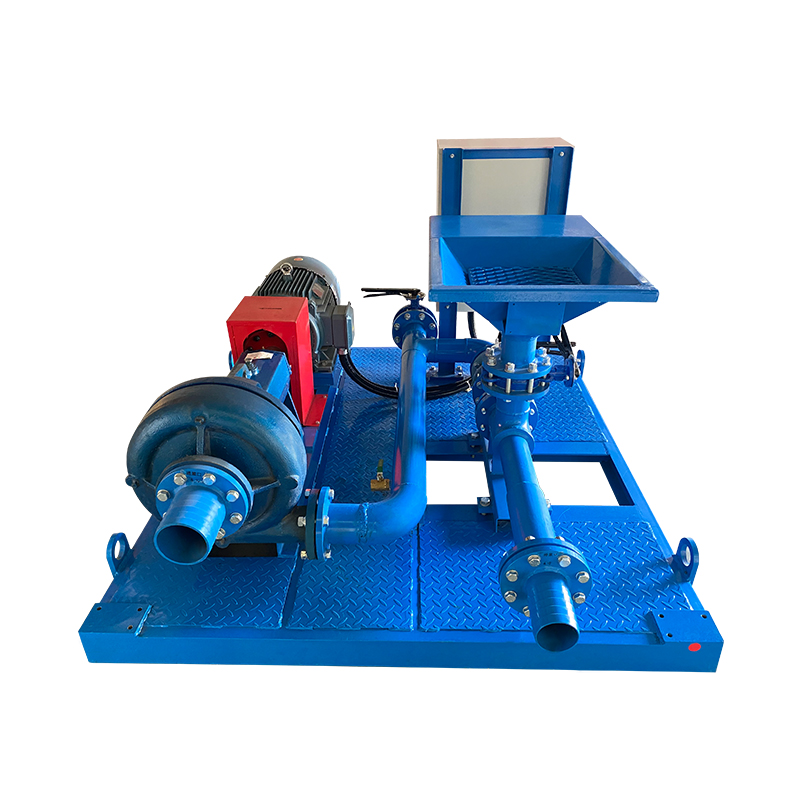

High Quality Drilling Fluid Jet Mud Mixer Mixing Hopper

Serial No.	Name	Parameter	Note
1	Jet Pump	380v  18.5kw	Heavy Type Sand Pump
2	Jet Capacity	65m3/Hour	/
3	Batching Speed	≥80kg	/
4	Electronic Control	Star-Triangle  Start	Protection when overloading, Votage high or Low, Less phase.
5	Working Pressure	0.35MPa±20%	/
6	Slurry Mixing	Jet Negative Pressure Suction	/
7	Water Inlet	5"	Inverted Teeth
8	Mud Returning Inlet	4"	Inverted Teeth
9	Net Weight	800kg	/
10	Overall Size	1900X1700X1100mm	/



3.Performance features:

Features:

1. Mud Mixer is a single jet mixer combined with 45 KW sand pump and a jet mud hopper

2. the weighting hopper can be combined with a pump or be used independently with pump connected

Together by manifold valve.

3. Put the drilling fluids materials ( bentonites, barite powder ) and the corresponding chemical additives

( polymer ) into circulation tank for increasing the total.
