| Rated Power: | 6kw |
|---|---|
| Frequency: | 50hz |
| Speed: | 1500rpm/1800rpm |
| Output Type: | AC Single Phase |
| Brand Name: | Koten Power |
| Place of Origin: | China (Mainland) |
| Engine brand: | Kubota |
| Alternator brand: | Stamford |
| Controller: | Smargen |
| Fuel tank capacity: | 100L |
| Lamp: | 4pcs 1000w Metal Halide lamps |
| Mast: | 9 m Vertical Hydraulic mast |
| Optional: | LED lamps |
Quick Details
Specifications
Description:

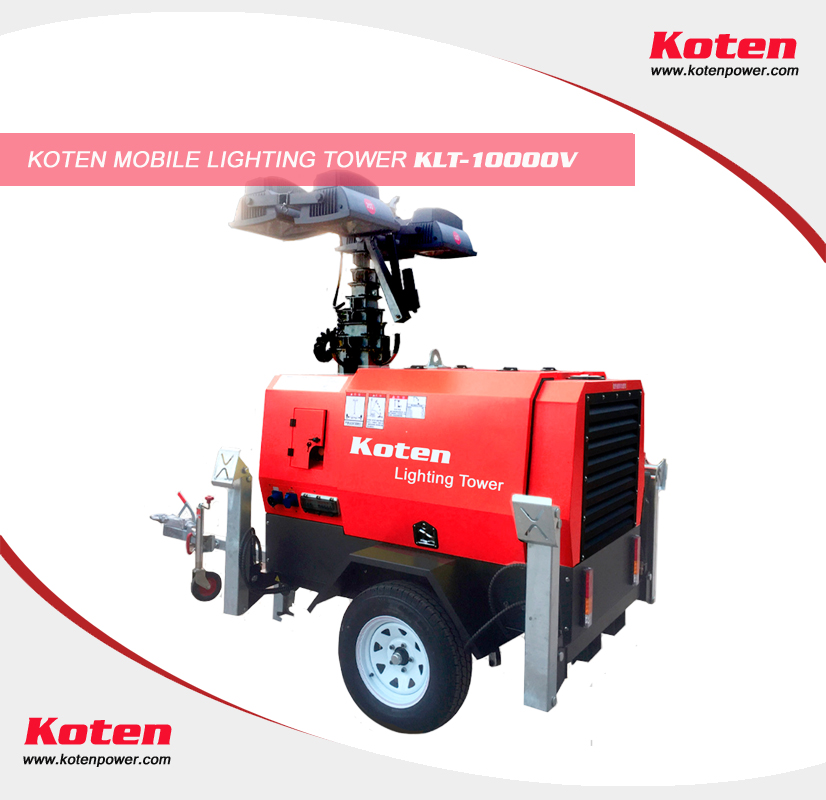

4*1000w Metal Halide lamps
Fuel consumption about 1.85ltr/hr(for full loading).
100 ltr Fuel tank
4* Manual Stabilizers
Digital controller
9 m Vertical Hydraulic mast height/ extension
Kubota origin D1105 Engine
360° Manual galvanized Mast Rotation
Emergency Stop
| SPECIFICATION: | |||
| ENGINE | Kubota | ||
| Model | D1105-E2BG | ||
| Type | Vertical 3-cylinder in-line water cooled | ||
| Max power output | 8.4kW/50Hz, 9.5kW/60Hz | ||
| Displacement | 1.123L | ||
| Engine Speed (RPM) | 1500/1800 RPM | ||
| ALTERNATOR | |||
| Model | 4-pole bushless,Class H SMU-132C | ||
| Rate Power | 230V-6kW/50Hz, 120V-8kW/60Hz | ||
| LIGHT FEATURES | |||
| Light (W) | 4x1000W Metal halide | ||
| Luminous per fixture (lm) | 110,000 | ||
| Luminous total (lm) | 440,000 | ||
| Fuel consumption (L/hr) | 1.85 | ||
| Runtime without refilling (hr) | 60 | ||
| MAST FEATURES | |||
| Max Extection Height (m) | 9 | ||
| Manual Rotation | 360 non-continous | ||
| Operation Type | Vertical Hydraulic | ||
| Max speed wind | 80km/hr | ||
| TRAILER | |||
| Tow Hitch | Ring/ball hitch | ||
| Stabilier Supports | 4*Heavy Duty Hydraulic Stabiliser Legs | ||
| Tire Size | 14 inch | ||
| Brakes | Manual | ||
| DIMENSIONS and WEIGHT | |||
| Dimensions (L x W x H) (mm) | 2350 x 1600 x 2500 | ||
| Weight (kg) | 1150 | ||
| Container Load (20GP/40HQ) | 4/8 sets | ||
