Air Conditioner Radiant Capillary Tube Mats for Heating & Cooling System

Introduction:

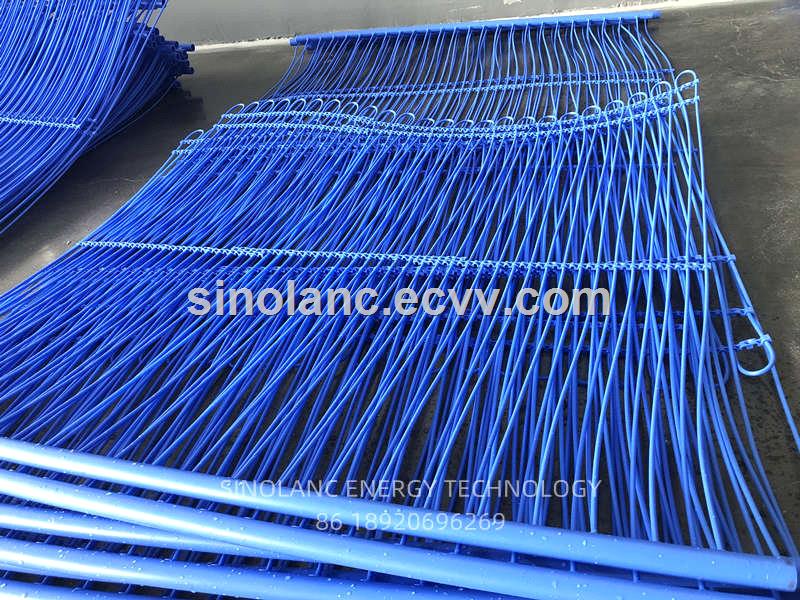

Sinolanc Capillary tube mat is made of pure and highly recyclable polypropylene. It consists of plastic tubes with an external diameter of only 4.3mm and two collection pipes with diameter of 20mm. the mats are supplied in lengths of 1m to 12.0m and variable widths up to 1.0m.

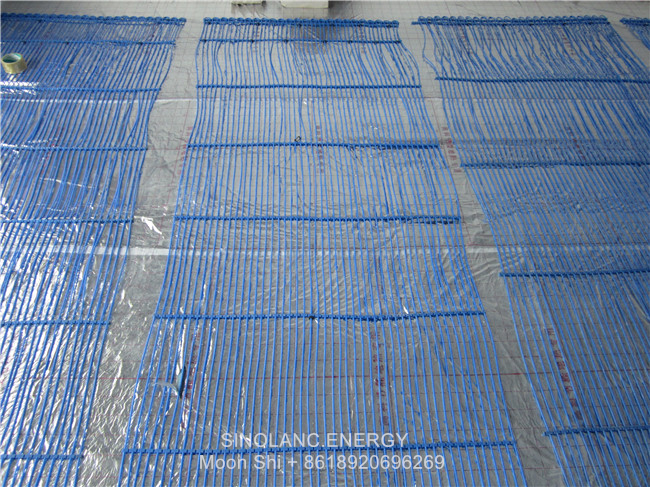

the sinolanc capillary tube mats are connected by welding to each other and the pipeline network.

Sinolanc capillary mats can be installed in all types of buildings and connected to various energy sources, including natural ones, like rivers or lakes. It's a two in one system for cooling and heating.

the surface of the sinolanc capillary tube mats is several times larger than traditional systems. this means that the system can operate at flow temperatures that are 8-10℃ lower with the same heat emission to the room.

Technical Data:



Product	Capillary Tube Mat
Material	PP-R
Collector pipe size	20*2.0 mm
Capillary tube size	4.3*0.8 mm
Capillary tube spacing	10mm, 20mm, 40mm, Z20mm, Z40mm
Length	600mm - 12,000 mm
Width	1000mm
Weight	290~870
Filed of application	Plaster ceilings, radiant heating systems embedded in plaster or screed



about Us:

1. Professional manufacturer of capillary tube mats in China for 17 years

2. Multiple production lines with production capacity at 6000square meters per day.

3. European distributors and installers has set up which can provide fast delivery and technical support.

4. Quality guaranteed with ISO, CE, ROHS certificates
